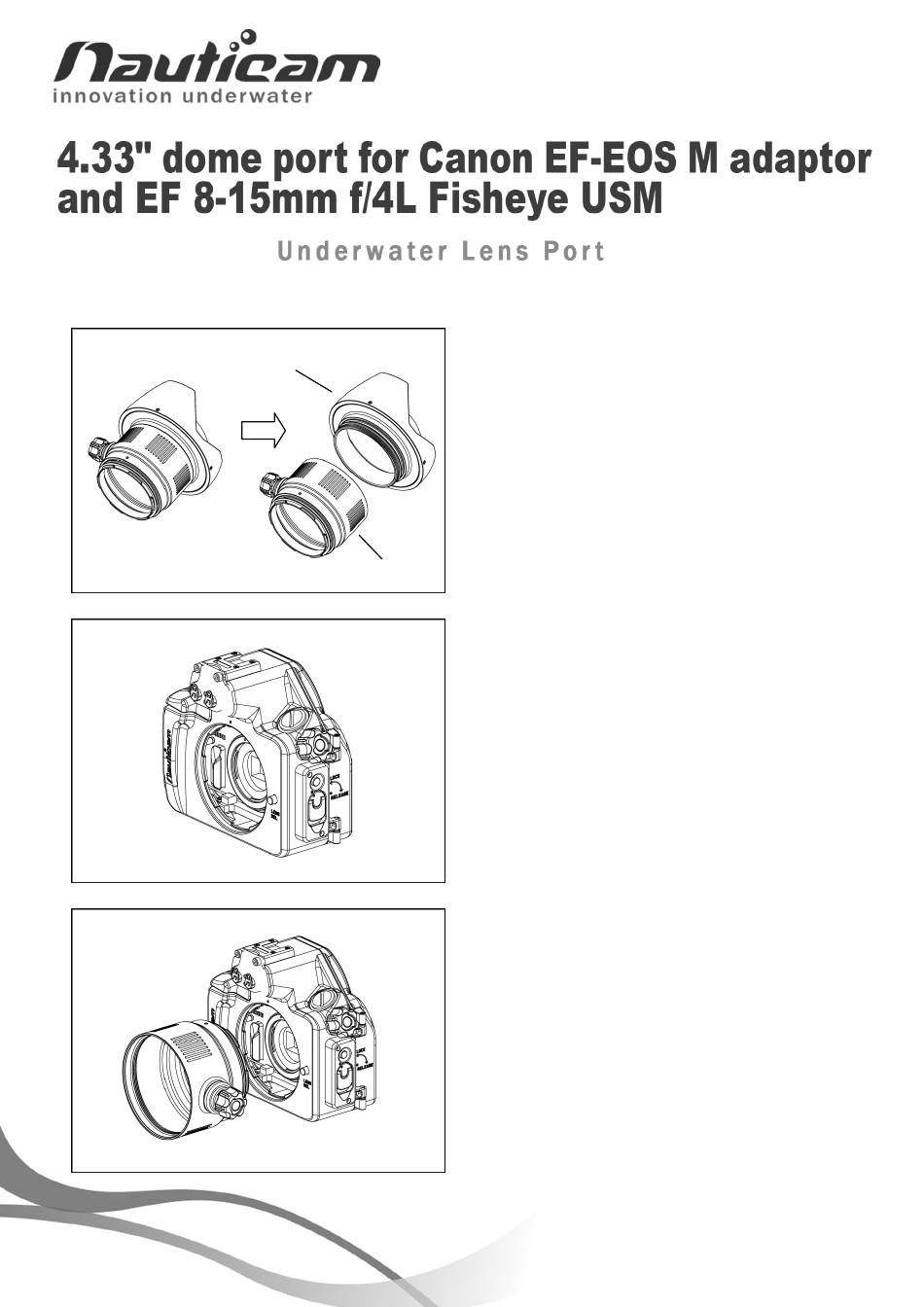

Please follow the instructions below to mount the dedicated 4.33" dome port on the NA-EOSM housing.
A
B
1. Detach A from the port by turning it anti-
clockwise while holding B firmly.
2. Install the camera body only into the housing.
*Please refer to the housing manual for installing
camera into the housing.
3. Align the port mounting indices of B and the
housing. Gently push B into the port opening of
the housing, until it cannot go in any further.
*Please refer to housing manual for locking
and un-locking the port.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Nauticam 36183
Summary of Contents for Nauticam 36183
- Page 1 Please follow the instructions below to mount the dedicated 4.33" dome port on the NA-EOSM housing. 1. Detach A from the port by turning it anti- clockwise while holding B firmly. 2. Install the camera body only into the housing. *Please refer to the housing manual for installing camera into the housing.
- Page 2 4. Make sure the zoom knob is at its most outwards position before mounting/ un- mounting the lens. The knob should be left at this position until it is made sure that the lens and zoom gear is properly installed. 5.
