  • Page 1: Table Of Contents

    Kamvas RDS-220 Contents Product Overview ............2 Display Introduction ........... 2 Accessories ............2 Connection ............4 Driver Installation ............. 6 Windows ............6 .............. 9 Driver ............. 12 Driver Interface Preview ..........12 Pen Display Setting ........... 14 Digital Pen Setting ............

  • Page 2: Product Overview

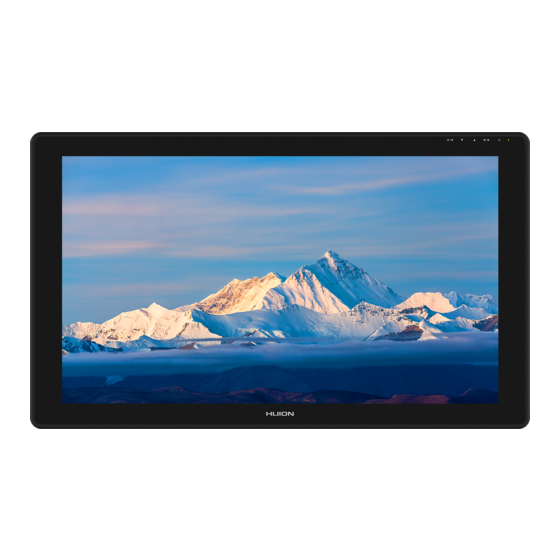

    Product Overview Display Introduction Thanks for choosing HUION Kamvas RDS-220 pen display. As a new generation of professional pen displays, Kamvas RDS-220 features 2.5K resolution and quantum dot technology, which offers you true-to-life details and a cinematic visual experience and enables you to enjoy drawing and creating with higher efficiency.
  • Page 3 Kamvas RDS-220 *Press the button to call up the OSD Menu and change the settings of the menu via 4 buttons (listed on the table below). Buttons Functions Power on/off the display. Press to call up the OSD menu. After entering the menu, its function is "confirm".

  • Page 4: Connection

    Take out the pen display and stand from the package, then assemble the stand to the back of the display with the attached screwdriver according to the following instructions. Connection Kamvas RDS-220 supports both computers and Android devices. The following are ways of connection for reference. Connect via a Three-in-two Cable 1.Take out the 3-in-2 cable from the package.
  • Page 5 Kamvas RDS-220 Connect via a Full-featured USB-C to USB-C Cable 1.Take out the full-featured USB-C to USB-C cable and 3-in-2 cable from the package. 2.Connect the pen display to a power adapter via the 3-in-2 cable (the port ① and the two power cable ends are used).

  • Page 6: Driver Installation

    ② Please make sure your computer operating system is Windows 7 or later. ③ Open the driver and a picture of Kamvas RDS-220 will appear, indicating that the pen display is successfully connected to your computer. Now you can use your pen display.
  • Page 7 2. Choose the correct driver for your device from our website: Driver-Kamvas RDS-220. 3. Click Driver-Kamvas RDS-220 to download it. 4. Double-click the driver and click “OK” to proceed. 5. Check the box to agree with the User Agreement and click “Install Now”.
  • Page 8 Kamvas RDS-220 6. After the installation has been completed, click on “Try it now”. 7. A picture of Kamvas RDS-220 will appear on the driver interface to indicate a successful connection. Now you can use your pen display. 8 / 34...

  • Page 9: Mac

    1. Please make sure your computer operating system is macOS 10.12 or later. 2. Open the driver and a picture of Kamvas RDS-220 will appear, indicating that the pen display is successfully connected to your computer. Now you can use your pen display.
  • Page 10 2. Choose the correct driver for your device from our website: Driver-Kamvas RDS-220. 3. Click Driver-Kamvas RDS-220 to download it. 4. Unzip the driver file and drag the HuionTablet driver application into the “Applications” folder. 5. Open the folder and then find and double-click the HuionTablet driver application.
  • Page 11 7. Just click "OK" when the system prompts for a Bluetooth connection, even if the pen display is connected to your computer via a cable. 8. A picture of Kamvas RDS-220 will appear on the driver interface to indicate that the pen display is successfully connected to your computer. Now you can use your pen display.

  • Page 12: Driver

    Kamvas RDS-220 Driver Driver Interface Preview 12 / 34...
  • Page 13 Pressure Sensitivity Adjustment, and Pressure Test. See Section 3. Store Huion Store is where you can get the latest information about the product such as its FAQ or sales promotion. In addition, you can also purchase Huion’s other products or accessories here.

  • Page 14: Pen Display Setting

    Kamvas RDS-220 1. Some programs which have already been opened will appear for you to choose from after clicking Add a Program on the screen. For more programs, click Browser and choose the item that you want to get it added.
  • Page 15 Kamvas RDS-220 1. Working Area Setting Define the pen display area that will be mapped to the monitor. Three modes on the driver can be chosen: [1] Full Area: The entire active area of the pen display will be mapped to the monitor. It is the default setting.
  • Page 16 Kamvas RDS-220 Picture 1 16 / 34...
  • Page 17 Kamvas RDS-220 Picture 3 2. Rotate Working Area Both left-handed and right-handed users can freely use the pen display because it can be rotated by 0°, 90°, 180°or 270°. Picture 2 17 / 34...
  • Page 18 Kamvas RDS-220 3. Calibrate Your Pen Display Click Monitor Calibration tab and follow the instructions to calibrate your pen display. 18 / 34...
  • Page 19 Kamvas RDS-220 Please use the digital pen to click on the center red dot of the cross in a common pen-holding posture. You can cancel Calibration and restore default. 19 / 34...

  • Page 20: Digital Pen Setting

    Kamvas RDS-220 Digital Pen Setting 1. Press Key You can use this digital pen to interact with your device, including drawing, writing, moving files, or activating the functions of pen press keys. You can customize the functions of these press keys according to your own habits, and you can uncheck "Enable press keys"...
  • Page 21 Kamvas RDS-220 Refer to this table of settings below to help you decide if you want to change the existing settings. Note: The performance of functions in the table below is up to the device that users have connected. Keyboard Key Click on the input box above and enter a valid key combination to create a shortcut.
  • Page 22 Kamvas RDS-220 you choose, from Fine to Ultra Fine. In the Precision Mode window that appears, move the slider to set the precision that you toggle into. For example, if you assign Precision Mode to a pen button, when you press the pen button, you switch to working in the precision that you selected from the slider.
  • Page 23 Kamvas RDS-220 Click Customize in the picture above to call out a quick menu (see picture 1). For each of the six buttons on the left, users can enter a name for it and set unique function for it. After that, users can call up the Quick Menu by pressing the key (see picture 2).
  • Page 24 Kamvas RDS-220 The pen nib of the digital pen can be set as Valid/Invalid according to users’ needs. Click the drop-down button to set its activity. In Valid mode, the pen works well, and in Invalid mode, the pen has a cursor movement, but cannot complete specified actions.
  • Page 25 Kamvas RDS-220 4. Pressure Sensitivity Adjustment Users can adjust the pressure sensitivity level by dragging the slider in the Pressure Sensitivity Adjustment box according to your usage habits. Click the redo button at the top right to revert to the default pressure.

  • Page 26: Driver Setting

    Kamvas RDS-220 Driver Setting 1. Device You can view the information of the firmware and the connected product here. 26 / 34...
  • Page 27 Kamvas RDS-220 Display Settings Scene Mode: “Standard Mode”, “Gaming Mode”, “Movie Mode”, and “USER” to be chosen. Brightness: Users can drag the corresponding slider to adjust the brightness. Contrast Ratio: Users can drag the corresponding slider to adjust the contrast ratio.
  • Page 28 Kamvas RDS-220 2. Backup The Driver can import and export your custom settings, which helps to avoid repeated settings when launching a different program. 28 / 34...
  • Page 29 Kamvas RDS-220 3. General Setting Language: Click the drop-down button to select a language. Color: You can select the color of the Driver interface among Dark, Blue, and Light according to your preference. Start Menu: Click to enable or disable “Auto-Start”, “New Message Alert”, “Automatic Updates”, and “Share diagnostic and usage data”.
  • Page 30 Kamvas RDS-220 4. About Users can check the Driver version number here. Click Check for Updates to view the latest Driver version and then follow the prompts to update the Driver if needed. 30 / 34...

  • Page 31: How To Use The Digital Pen

    Kamvas RDS-220 How to Use the Digital Pen Hold the Pen: Hold the digital pen as you hold a real pen. Adjust your grip so that you can toggle the pen press keys easily with your thumb or index finger. Be careful not to accidentally press the key while drawing with the pen.

  • Page 32: Troubleshooting Solutions

    The pen display cannot sense the pen pressure while the cursor can move You may have installed other drivers or run the drawing software when installing the driver. Please uninstall all the drivers, close the drawing software, and then reinstall the Huion driver. 32 / 34...
  • Page 33 The computer cannot recognize the pen display Please check whether the USB port functions well. If not, please try another USB port. Failed to connect Kamvas RDS-220 to other device and “Device Disconnected” appears. Please restart your computer or driver; make sure the USB port and USB-C cable work well;...
  • Page 34 Kamvas RDS-220 If your problem is not resolved, please click FAQs to view more troubleshooting methods or email us(service@huion.com). 34 / 34...
