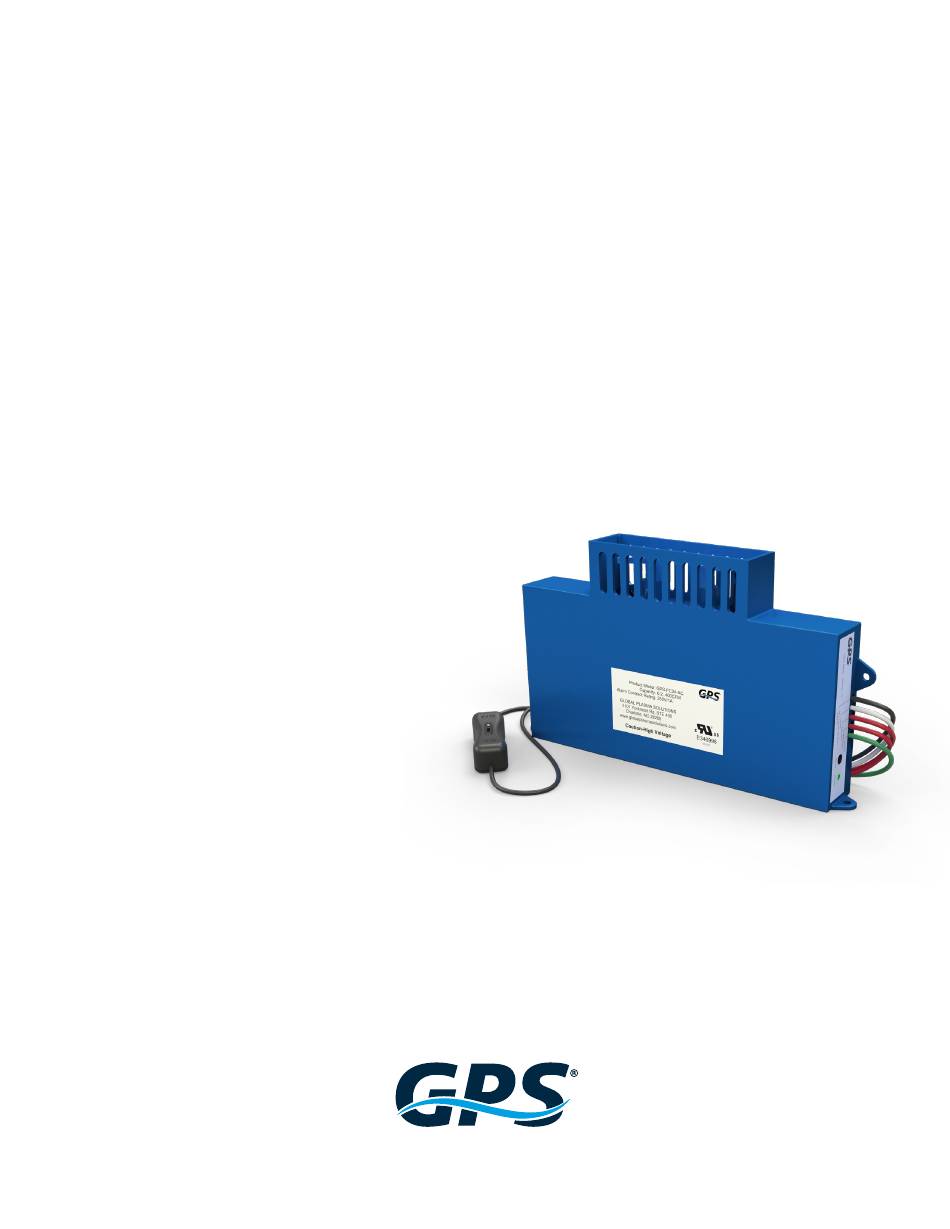

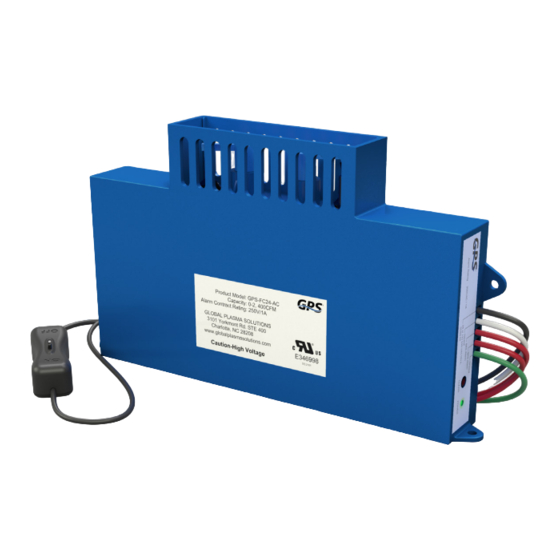

- Page 1 GPS-FC24 Installation, Operation & Maintenance Manual ™ NOTICE: This product is to be used only as directed. Read entire manual before use. Do not use unless properly installed. www.globalplasmasolutions.com...
- Page 2 AVERTISSEMENT: ASSUREZ-VOUS QUE L’ALIMENTATION EST DÉCONNECTÉE DE L’ÉQUIPEMENT CVC AVANT L’INSTALLATION GPS recommends mounting the GPS-FC24-AC after the filtration system and after the coil(s) section(s) in the HVAC system. In ductless mini-split ceiling cassette applications, it is suggested to mount the unit to the fan inlet. The emitter brushes should be no closer than two inches from any wiring or metal objects.
- Page 3 3. Mount the magnets to the GPS-FC24-AC using included hardware. See FIGURE 1. 4. When mounting in a ceiling cassette use zip ties to secure GPS-FC24-AC to fan inlet screen or grid. NOTE: if mounting in a ceiling cassette that has a self cleaning filter, the unit must be mounted behind the screen and self cleaning system, but before the fan inlet.
- Page 4 4. Wire in BAS terminals (optional) The GPS-FC24-AC is equipped with a set of dry contacts that are normally open and close when the GPS-FC24-AC is on and has no faults. The contacts are rated up to 250VAC and 1A.
- Page 5 If the emitter is worn to the point where there is no adjustment, replacement emitters can be ordered from GPS. Remove the screw and the emitter base, unplug the emitter from the connector. Plug the new emitter in, reinstall base, adjust emitter height and tighten screw.
- Page 6 To access a list of applicable patents, please visit www.gpspatents.com www.globalplasmasolutions.com www.gpsair.com © 2022 GPS Air GPS Air is the owner of certain trademarks that appear in our materials. Please visit www.gpsair.com/trademarks for a list of our marks. GPS-041-14-R20-FC24 IOM...
