Installation, Operation & Maintenance Manual
NOTICE: This product is to be used only as directed. Read entire manual before use. Do not use unless properly installed.
www.globalplasmasolutions.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GPS PS-2

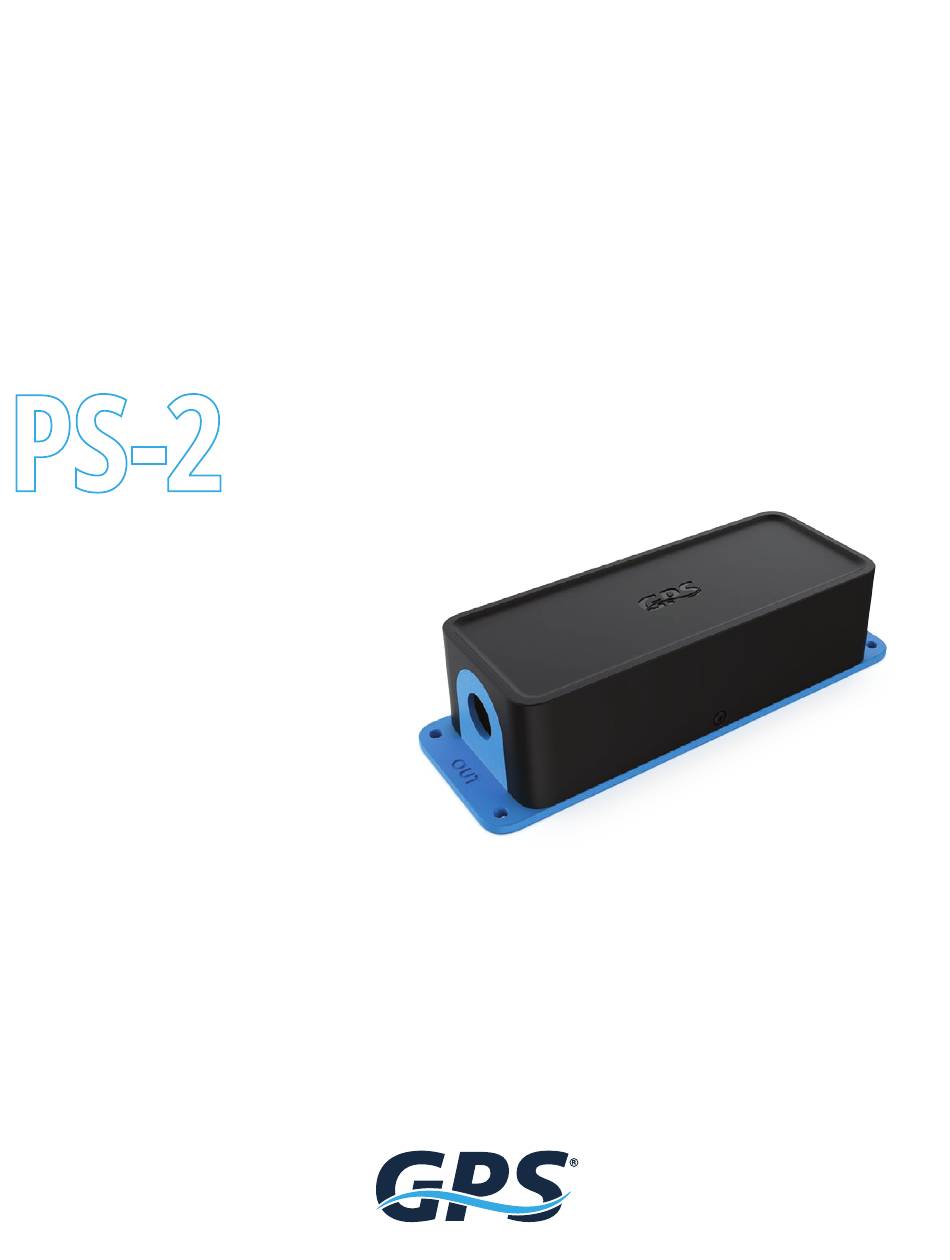

  • Page 1 Installation, Operation & Maintenance Manual ™ NOTICE: This product is to be used only as directed. Read entire manual before use. Do not use unless properly installed. www.globalplasmasolutions.com...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS When using electrical products, basic precautions should always be practiced including the following: 1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. 2. Read and follow all instructions that are on the product or provided with the product. 3. Reference the National Electrical Code, NFPA 70, specifically for the installation of wiring and clearances from power and lighting conductors.
  • Page 3 3. Grommets/glands for any wiring penetrations Location Install PS-2 within 100 feet of ionization system to avoid excessive power losses. Take care to not damage wiring when installing away from ionizer. NOTE: Use temperature - Maximum ambient temperature in which unit shall be used: 160°F/ 70°C.
  • Page 4 Review the installation video at our website or scan the QR code opposite. Installation WARNING: Make sure power is disconnected to the HVAC equipment before installation. CAUTION! High Voltage. Step 1. Remove Screws · Remove two screws from the top cover as shown.
  • Page 5 Tighten the fittings to adequately secure the cable and conduit. 24V DC OUTPUT [ -] RLY1 RLY1 RLY2 PS-2 RLY2 For installations in plenum spaces use only metallic clad conduit on incoming AC power. Wire colors will vary by incoming AC power and GPS product.
  • Page 6 Step 4. Mounting · Using the supplied fasteners mount the PS-2 to an appropriate vertical or horizontal surface.
  • Page 7 Product Registration By registering your order, the standard limited warranty on eligible products from your purchase is automatically extended to 3 years, at no additional cost. Register your products at www.gpsair.com/product-registration or scan the QR code. The information provided in this manual is up to date at the time of printing. Any revisions to this document will supersede the content included.
  • Page 8 3101 Yorkmont Road · Suite 400 Charlotte, NC 28208 980-279-5622 www.gpsair.com © 2022 GPS Air GPS-041-31-R21-PS2 IOM GPS Air is the owner of certain trademarks that appear in our materials. Please visit www.gpsair.com/trademarks for a list of our marks.
