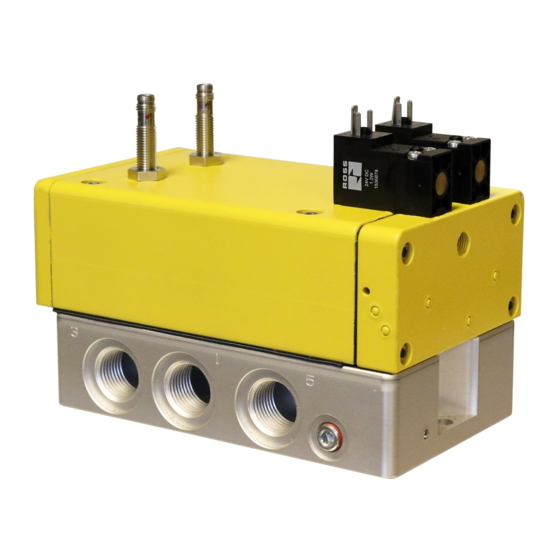

Ross RSe Series Integration Manual

Double valves for safe return dual pressure applications
Hide thumbs Also See for RSe Series:

Advertisement

Quick Links

Download this manual
rSe S
d
V
erIeS
ouble
alVeS
F
S
r
d
P
a
or
aFe
eturn
ual
reSSure
PPlIcatIonS
I
g
ntegratIon
uIde

Advertisement

loading
Need help?

Need help?

Do you have a question about the RSe Series and is the answer not in the manual?

Questions and answers

Related Manuals for Ross RSe Series

Summary of Contents for Ross RSe Series

  • Page 1 rSe S erIeS ouble alVeS eturn reSSure PPlIcatIonS ntegratIon uIde...
  • Page 2 Global Locations Disclaimer: Sample Logic and any and all related diagrams contained in ROSS Controls’ Integration guide were developed and validated using dual channel electro-mechanical input signals in a laboratory environment and are provided to you for illustrative purposes only. Because of the many variables and unique requirements associated with any particular application, all persons responsible for installing and integrating ROSS products must satisfy themselves that the ROSS product is the correct product for the application and operates as intended.
  • Page 3 Introduction ROSS CONTROLS offers a variety of safety valves for use in various safety functions such as safe exhaust, safe return, and safe load holding/stop. This document focuses specifically on ROSS CONTROLS’ 5/2 RSe Series valves that are used for dual pressure safe cylinder return functions and utilize magnetic proximity sensors (PNP) to provide feedback to a safety control system for external monitoring.
  • Page 4 Pilot Supply Conversion The RSe Series valve comes from the factory configured for internal pilot supply which sources pilot supply air pressure internally from port 1 in the valve sub-base. However, when used for dual pressure applications the valve MUST be converted in the field to operate with external pilot supply through the EPS port in the valve sub-base.

  • Page 5: Valve Operation

    5/2 RSe Series Double Valves for Safe Return Dual Pressure Integration Guide EPS port EPS port 5 1 3 51 3 Valve Schematic Operation & Monitoring Requirements for 5/2 RSe Series Valves for Safe Return Dual Pressure Applications Valve Operation The 5/2 RSe valve used for safe return dual pressure applications is a redundant safe cylinder return valve.
  • Page 6 5/2 RSe Series Double Valves for Safe Return Dual Pressure Integration Guide The fault should be latched in by the safety monitoring system until a reset is performed. Failure of the valve to shift normally leads to a fault in the 5/2 RSe dual pressure safe cylinder return valve. This could happen for a variety of reasons, such as: •...
  • Page 7 5/2 RSe Series Double Valves for Safe Return Dual Pressure Integration Guide Actuation Fault Monitoring Actuation fault monitoring should check for actuation of both valves within 250 msec of the actuation signal. After the safety control system outputs provide simultaneous actuation signals to both solenoids, both sensor outputs should switch off within 250 msec.
  • Page 8 5/2 RSe Series Double Valves for Safe Return Dual Pressure Integration Guide RSe (5/2) Safe Return Dual Pressure Application Validation Test Procedure for Valve Operation and External Monitoring Logic This validation test procedure should only be performed with a 5/2 RSe valve that is known to be functioning properly. If basic valve function is in NOTE 1: question please refer to Section 8 of the Product Operating Instructions for the Valve Test Procedure.
  • Page 9 5/2 RSe Series Double Valves for Safe Return Dual Pressure Integration Guide Sensor Actuate Conditions Outlet Pressure Pass/Fail Port Cylinder Signal Step Action Sol A Sol B Fault ? Conditions Action Sensor Sensor Sol A & Sol B Port 4...
  • Page 10 5/2 RSe Series Double Valves for Safe Return Dual Pressure Integration Guide Sensor Actuate Conditions Outlet Pressure Pass/Fail Port Cylinder Signal Step Action Sol A Sol B Fault ? Conditions Action Sensor Sensor Sol A & Sol B Port 4...

  • Page 11: Standard Warranty

    The ROSS Group’s obligation under this warranty is limited to repair, replacement or refund of the purchase price paid for products which the ROSS Group has determined, in its sole discretion, are defective. All warranties become void if a product has been subject to misuse, misapplication, improper maintenance, modification or tampering.
  • Page 12 If you need additional information not shown in this guide, please visit ROSS' website, contact ROSS or your ROSS distributor. The ROSS Support Team will be happy to assist you with your application. For a current list of countries and local distributors, visit ROSS’ at www.rosscontrols.com.
