STOP MODE
Memory Mode Only: Allows to link the stop mode to the memory
mode of the logger. That is, the acquisitions will be interrupted if the
memory limit is reached (if Full Memory mode is set) or will never be
interrupted (if Circular Memory mode is set).
Date/Time: Allows to stop the acquisitions at a defined date and
time.
After a specific number of logs: Allows to set a number of
acquisitions that, when reached, will stop the acquisition process.
Daily: Allows to stop the acquisitions daily and at a previously
defined time.
FINALIZATION
Once the settings have been made, you must click the
to open the finalization screen:

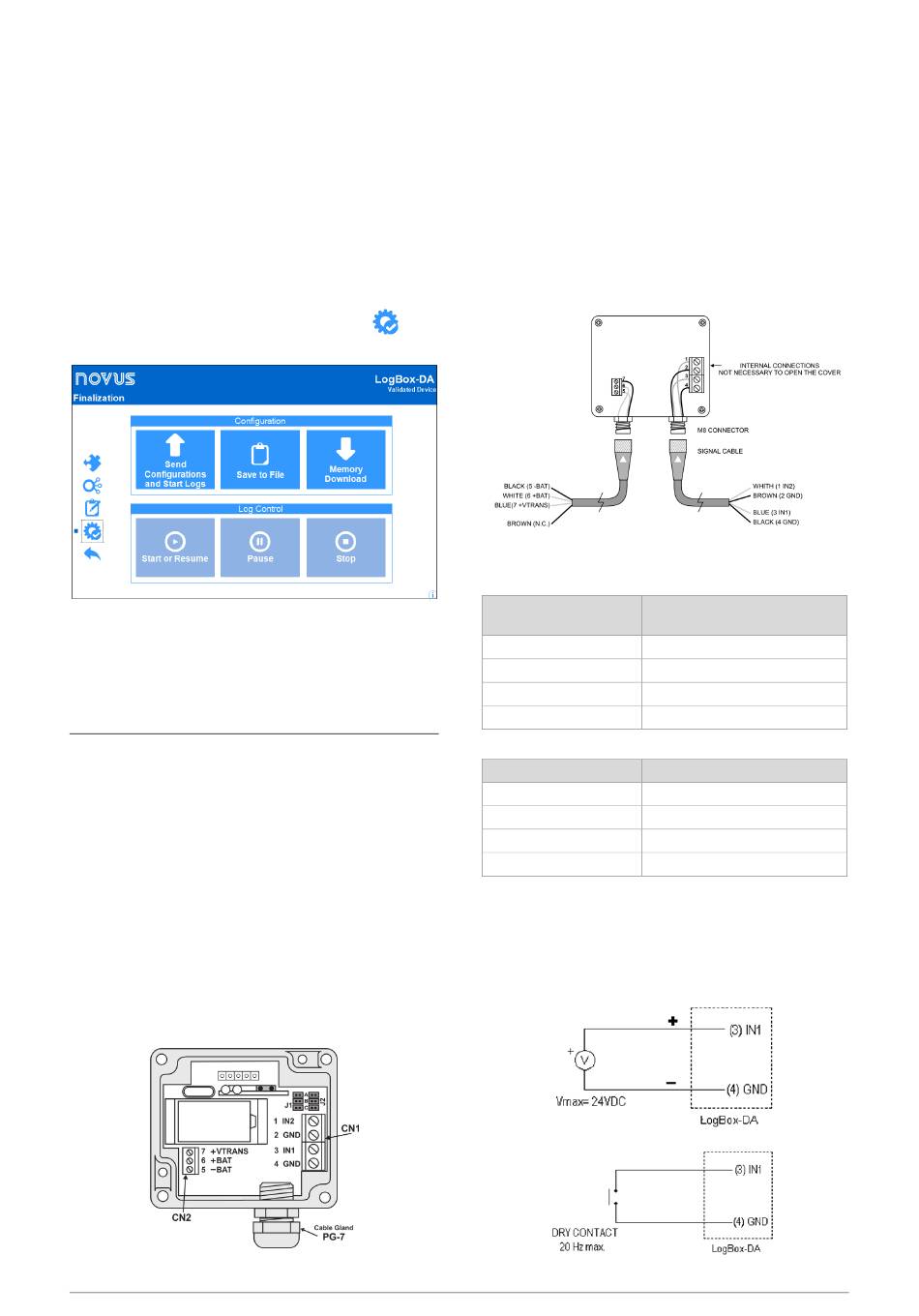

Figure 10 – Finalization
From this screen you can send and start logs, save the configuration
to file, download data from memory, and start, pause, or stop the
logging control.

ELECTRICAL INSTALLATION

Only the input channel connections and the internal electronic switch
(when used) are required. The electrical power supply is provided
exclusively by the internal battery.
For the IP65 model, input and external trigger terminals are available
internally. To make the connections, you will need to open the
housing.
For the IP67 model, the terminals are outside the housing, at the
connectors shown in Figure 11.
IP65 MODEL
In the IP65 model, the connections are made internally. To access
the terminals and the configuration jumper, it is necessary to remove
the cover from the logger.
The connection wires enter the logger through the cable gland
located on the bottom of the housing. Figure 11 shows the polarity of
these connections:
Figure 11 – IP65 Version (Connections internal view)
NOVUS AUTOMATION
Note: Be sure that the cable gland holds the wires, ensuring the
protection level of this model: IP65 − Fully protected against the entry
of dust and against water jets, according to NBR-6146 standard.
IP67 MODEL
In the IP67 version, a M8 connector is provided for signal input.
When required, a second M8 connector can be installed to output the
signal for commanding the external power supply. The cables are
supplied with the logger.
Note: You should remove the logger cover only when it is necessary
to change the battery. On this occasion, the cover must be put back
properly, ensuring the protection degree of this model: IP67 − Fully
protected against the entry of dust and against immersion in water,
according to NBR-6146 standard.
button
Figure 12 – IP67 Version (External connectors)
The wires have the following connections:
CHANNELS CABLE
(RIGHT)
Blue
Black
White
Brown
SWITCH CABLE (LEFT)
Blue
Black
White
Brown
INPUT CONNECTIONS – DIGITAL CHANNEL
The following figures show the connections for the possible input
types:
Figure 13 – Voltage Pulse and Dry Contact
LogBox-DA Datalogger
CONNECTION
Channel 1 – (3 IN1) – positive (+)
Channel 1 – (4 GND) – negative (-)
Channel 2 – (1 IN2) – positive (+)
Channel 2 – (2 GND) – negative (-)
Table 1 – Channels cable
CONNECTION
Transducer (7 +VTRANS)
External Battery (5 -BAT)
External Battery (6 +BAT)
Not connected
Table 2 – Switch cable
