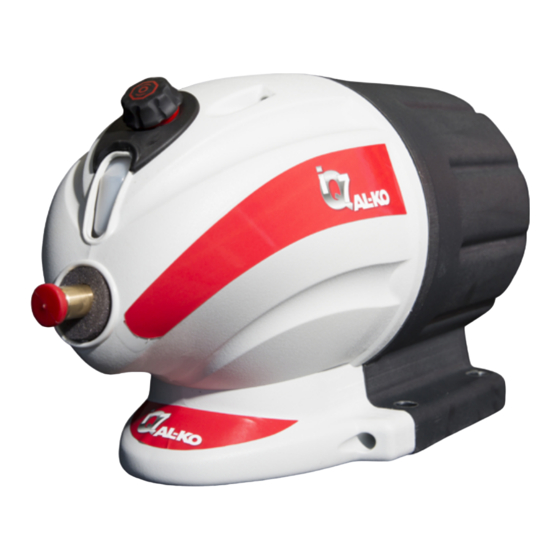

AL-KO iQ7 Installation & Operating Instructions Manual
Actuator & control
Hide thumbs
Also See for iQ7:
- Instructions (4 pages) ,
- Installation & operating instructions manual (12 pages)
Table of Contents
Advertisement
Quick Links
AL-KO iQ7 ACTUATOR & CONTROL
INSTALLATION & OPERATING
INSTRUCTIONS
For use with Motion Sensing Brake Controllers
Save This Manual. Keep this manual for the assembly, operation and maintenance
procedures. Keep this manual with the towing vehicle for future reference.
WARNING
Read this manual before
using this product.
RETAIN THIS MANUAL.
3
ARS
YEARS
RANTY
WARRANTY
4
5
YEARS
YEARS
WARRANTY
WARRANTY
alko.com.au
6
7
YEARS
YEARS
WARRANTY
WARRANTY
Advertisement
Table of Contents
Related Manuals for AL-KO iQ7
Summary of Contents for AL-KO iQ7
- Page 1 AL-KO iQ7 ACTUATOR & CONTROL INSTALLATION & OPERATING INSTRUCTIONS For use with Motion Sensing Brake Controllers Save This Manual. Keep this manual for the assembly, operation and maintenance procedures. Keep this manual with the towing vehicle for future reference. WARNING Read this manual before using this product.
- Page 2 This information MUST be distributed with the AL-KO iQ7 trailer braking system and be kept with the towing vehicle for future reference. When unpacking, make sure that the product is intact and undamaged. If any parts are missing or broken, please call (03) 9767 3700 as soon as possible.
-
Page 3: General Operation
AL-KO iQ7 unit is NOT waterproof and should NEVER be submerged at any time. It is therefore suggested that the AL-KO iQ7 unit be mounted towards the front of the towed vehicle and as high as practical (i.e. the bow post if used in the marine environment. -
Page 4: Installation
AL-KO iQ7 Actuator. Mounting bush Mounting Bracket The AL-KO iQ7 actuator incorporates four mounting holes on the base of the unit (Refer figure 3, below). In order to attach the unit securely to the trailer and to minimise vibration, Rubber grommet a sturdy mounting bracket must be fabricated. -
Page 5: Hydraulic Connection
Connect the hydraulic brake line from the brake system on the towed vehicle to the brake port on the AL-KO iQ7 actuator unit using a 3/8” UNF Brass Long Series Tube Nut. Carefully fill the brake fluid reservoir by removing the filler cap. Always use new brake fluid. - Page 6 Failure to properly install, bleed, operate and maintain your AL-KO iQ7 braking system the actuator. can cause malfunction resulting in possible serious or fatal injuries and/or property damage. The IQ7 actuator should never be used to bleed the braking system as this may damage the compressor. Drum Brakes If drum brakes are being used, a residual line pressure valve (obtain from a brake specialist) must be installed in the hydraulic line.
- Page 7 Wiring Loom The AL-KO iQ7 Wiring Loom has been designed to simplify the installation process. alko.com.au...
- Page 8 Tekonsha P3 REDARC Tow-Pro Elite Contact AL-KO for verification of all other controllers prior to use. iQ7 used in conjunction with a Tekonsha P3 brake controller fulfills the requirements of providing visible warning of low operating pressure or break away by flashing a red ‘No Connection’ display from the front of the controller.
-
Page 9: Operation
The AL-KO iQ7 does NOT require a separate power source for the activation of the breakaway system. In the event of a breakaway situation the disconnection of the power supply results in the trailer service brake being activated automatically. - Page 10 4. AL-KO will bear the cost of the transport of the Product to and from AL-KO or the authorised repair agent where the defect is covered by this warranty. AL-KO...
- Page 11 Register your warranty at www.alko.com.au Option 1. Scan the above QR code Option 2. Visit alko.com.au/warranties Option 3. Take this link (digital copy only) SERIAL No. ALK __________________ INSTALLER ____________________________________________________________ DATE The personal information disclosed to us by you will be used for the purposes of identifying you if you wish to make a claim under the warranty, and for dealing with that claim.
- Page 12 1 Airpark Drive, Airport Oaks, Mangere, Auckland Phone (09) 255 5611 Fax (09) 255 561 AL-KO International Pty Ltd (ABN 90 003 066 813) 67 -91 Nathan Road, Dandenong South, VIC 3175 Australia Phone: (61) 3 9767 3700 Fax: (61) 3 9767 3799...
