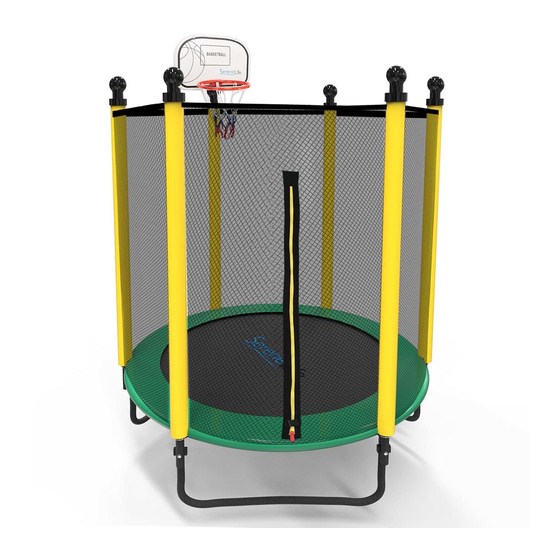

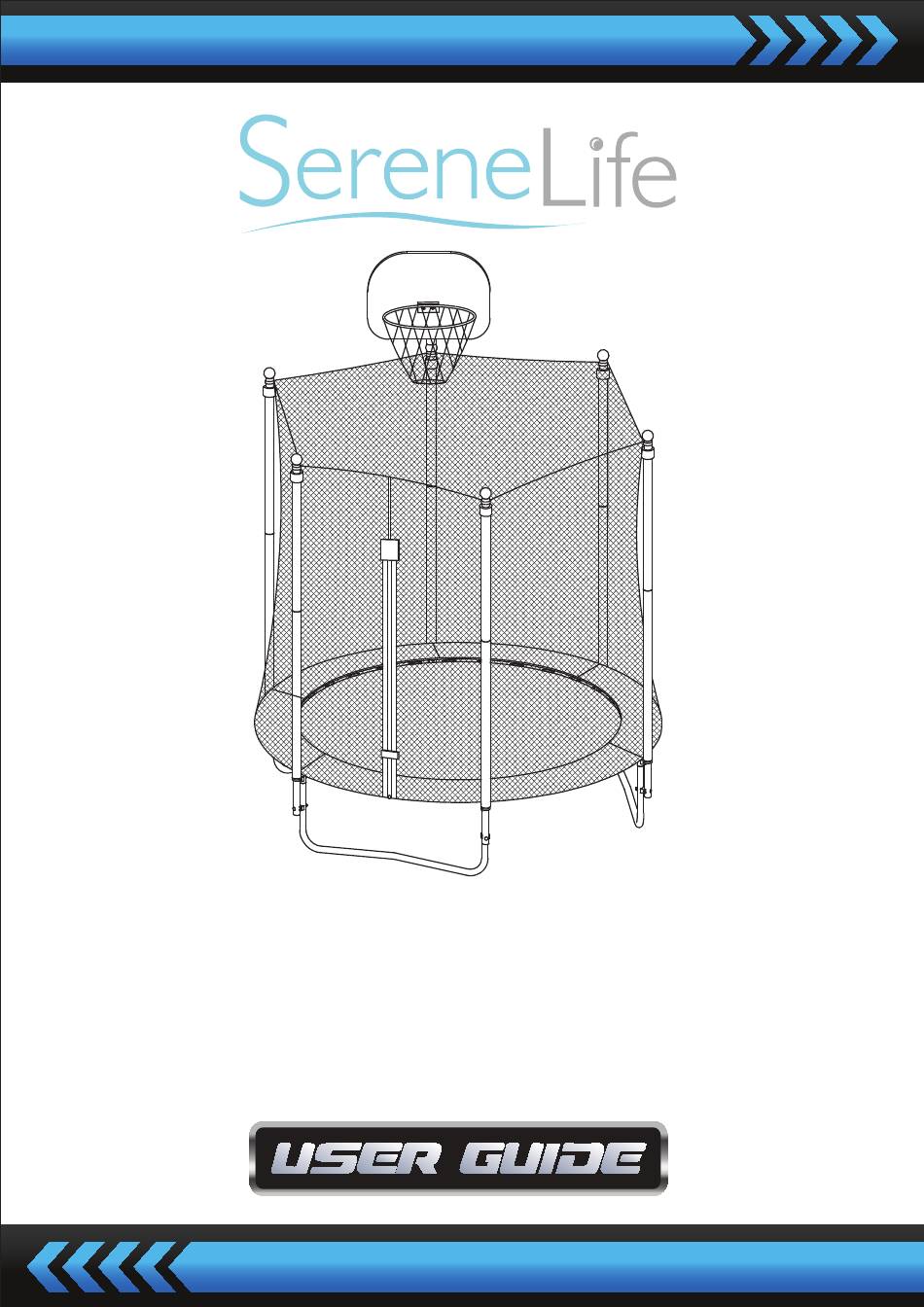

- Page 1 SLTRA5BL 5ft Outdoor & Indoor Mini Kid Trampoline with Enclosure Safety Net Basketball Hoop Outdoor & Indoor Jumping Fun Trampoline for Kids/Children, Basketball Hoop, Safety Net Cage (5 ft.)
-
Page 2: Intended Use
Read all precautions and instructions in this manual before using this equipment. Save this manual for future reference. Introduction You have chosen a high quality product. Familiarize yourself with the product before using it for the rst time. In addition, please refer to the operating instructions and the safety advice below. Only use the product as instructed and only for indicated eld of application. - Page 3 • Never jump directly from the jumping mat onto the ground! There is a high risk of injury due to the hard impact! • Only one user at a time. Risk of collision! • Do not use the trampoline if you are injuried or your health is impaired, e.g. due to ankle injuries, back pain, pregnancy etc.
-
Page 4: Maintenance & Care
ASSEMBLY SAFETY INFORMATION WARNINGS: • The trampoline must be assembled by at least two adults in accordance with the assembly instructions, and then examined before being used for the rst time. • Make sure you use the trampoline only after it has been completely assembled. •... -
Page 5: Parts List
ASSEMBLY Remove all parts from the packaging and check whether all parts are fully present. If there are any parts missing, please contact our customer service. WARNING! Due to its size, the trampoline must be assembled and installed by at least two adults. WARNING! Wear protective gloves when assembling the trampoline and make sure that you are working deliberately and carefully. -
Page 6: Assembly Instruction
ASSEMBLY INSTRUCTION STEP 1. FRAME ASSEMBLY Lay out all Frame Tubes (#1) and Leg Tubes (#2) as shown. Insert the Leg Tubes into the sockets of the Frame Tubes. NOTE: 1. All parts with the same part number are interchangeable. 2. - Page 7 • From point 1, count exactly 7 holes on the Frame Tube (#1) and 7 triangle rings on the Jumping Mat (#4), attach the second spring. Repeat the same step to hook the 3rd, 4th and 5th spring to point 13, 19 and 25.
- Page 8 STEP 3. FRAME COVER ASSEMBLY • Place the Padding Cover (#5) over the frame and springs. • Tie the elastic strap underneath the cover to Frame Tube (#1) as shown. • To make sure there’s no gap left between the Jumping Mat (#4) and the Padding Cover (#5) to prevent foot getting caught during use, “sew”...
- Page 9 STEP 4. SAFETY POLES ASSEMBLY • Plastic Caps (#20, 21) are pre-attached to the top of Upper Net Poles (#7, 8). • Slide the Upper Net Poles (#7) into Lower Net Poles (#9), 5 sets in total. • Connect Upper Net Pole(for putting up basketball hoop) (#8) to Lower Net Pole (#9) with Inner Hexagonal Bolt M6*16mm (#10) and Washer (#13), secure with L-Shape Wrench (#17).
- Page 10 Note: 1. Compared with Plastic Cap A (#20), Plastic Cap B (#21) is open-ended for xing Basketball Hoop Connecting Tube (#22). 2. Upper Net Pole (#7) and Lower Net Pole (#9) are connected by an inserted one-ended snap. 3. Upper Net Pole (#8) and Lower Net Pole (#9) are connected by an Inner hexagonal bolt M6*16mm (#10) and a washer (#13), secured by L-Shape wrench (#17).
-
Page 11: Step 5. Safety Net Assembly
STEP 5. SAFETY NET ASSEMBLY • Attach the 6 straps sewn on top of Safety Net (#16) around the thinnest part of Plastic Cap A & B (#20, 21). • Attach the plastic hooks on the bottom of Safety Net (#16) to the triangle rings of Jumping Mat (#4). www.SereneLifeHome.com... - Page 12 STEP 6. BASKETBALL SYSTEM ASSEMBLY • Connect the Rim (#24), Basketball Backboard (#23) and Basketball Hoop Connecting Tube (#22) with Inner Hexagonal Bolt M6*25mm (#28), Washer (#13) and Locknut (#29), tighten them with L-Shape wrench (#17) and Wrench (#18). • Put the assembled Basketball backboard above Upper Net Pole (#8), slide it into Upper Net Pole (#8) until you hear a crackling sound, which means the hole of the Basketball Hoop Connecting Tube (#22) has been aligned with the double-ended snap (as shown) on Upper Net Pole (#8).
- Page 13 INSTRUCTIONS FOR USE Instructions and help on trampoline use are provided below. The instructions must be carefully followed for the safety of the users, as well as people and animals nearby. NOTE: Before getting on the trampoline, perform some stretches to slowly warm up your muscles. GETTING ON THE TRAMPOLINE WARNING! Before getting on the trampoline, make sure that there are no persons, animals, or objects on or under...
- Page 14 d. You must practise aborting jumps before you attempt more complicated jumps! Slightly bend your knees when you land on the trampoline. e. Limit the duration of continuous use. Take regular breaks. Aborting a Jump If you would like to abort a jump,slightly bend your knees when landing on the jump mat. This way you slowly lose jumping power.
-
Page 15: What's In The Box
Sitting Jump (Fig. 3) 1. Jump up in the same manner as the basic jump. Do not jump too high! 2. Try to land in a sitting position. Do not lock your elbows, but keep your arms and hands loosely by your hips. -
Page 16: Maintenance
MAINTENANCE Maintenance is important for preserving the quality and safety of the trampoline. Observe the following important information to enjoy your trampoline over a long period of time. • Keep all sharp-edged and pointy objects away from the trampoline, as they may damage the jump mat. •... - Page 17 www.SereneLifeHome.com...
- Page 18 Questions? Comments? We are here to help! Phone: (1) 718-535-1800 Email: support@pyleusa.com...
