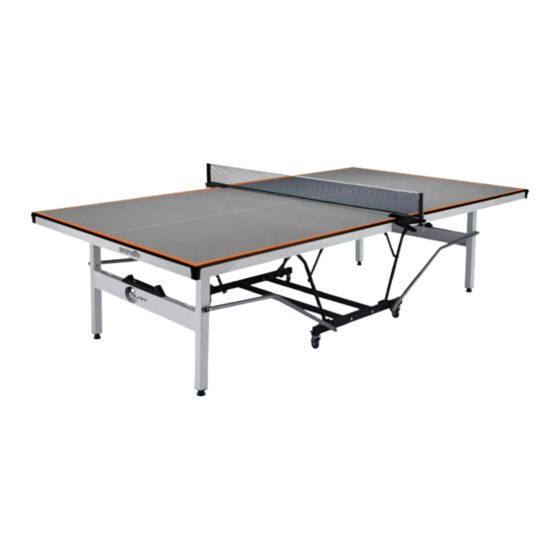

- Page 1 SLPPTB22 Durable Indoor Table Tennis Table Designed with MDF Table Top for Optimal Bounce...
-
Page 2: Important Safety Notice
IMPORTANT SAFETY NOTICE For your safety and bene t, read this manual carefully before starting assembly and using this product. Failure to follow the instructions and safety precautions in this manual can result in serious injury or damage to equipment. SAFETY INFORMATION: GENERAL ASSEMBLY WARNINGS: •... - Page 3 HARDWARE LIST PAGE Caster Beams 2.PCS Bolt M8x60MM 4.PCS Bolt M6x45MM 4.PCS M10 Lock nut 12.PCS Table Tennis Table Top 2.PCS M10 Plastic Spacer Middle Plate 1.PCS M8 Lock nut 8.PCS M6 Lock nut 6.PCS 4.PCS Support Tube 4.PCS Strut Tube 4.PCS Accessory Holder 3.PCS M10 Plastic Washer M8 Plastic Washer 4.PCS...
- Page 4 STEP 1 Hardware Needed: Bolt M10x75MM 8.PCS M10 Washer 16.PCS Stop Spool 8.PCS Triangle Support Plates 4.PCS • Before beginning, ensure you have cleared an area large enough for the table M10 Lock nut 8.PCS to be assembled. • Align Triangle Support Plate with Caster Beam to line up holes. Thread the bolt Caster Beams 2.PCS in the following order: Bolt (H2) through a Washer (H13), the Caster Beam (P2), a Stop Spool (H17), the Triangle Support Plate (H18), another Washer (H13),...
- Page 5 STEP 2 Hardware Needed: Bolt M8x60MM 4.PCS M8 Lock nut 4.PCS M8 Washer 8.PCS Caster Beams 2.PCS M10 Lock nut 8.PCS • Attach Middle Plate (P3) to Caster Beams (P2) as shown in the above image. • Thread the Bolt (H4) through the Washer (H14), both Steel Frames, another Washer (H14) and secure with Lock Nut (H7).
-
Page 6: Important Note
STEP 3 Hardware Needed: SHORT END Bolt M10x110MM 4.PCS LONG END M10 Lock nut 4.PCS CAUTION: M10 Plastic Spacer 4.PCS DO NOT overtighten the nuts, as this will apply too much pressure to the spacers and may cause them M10 Plastic Washer 8.PCS to crack. - Page 7 STEP 4 WARNING: Gray support tubes will protrude into assembly area, posing a potential tripping • Place the Strut Tubes (P5) in a upward position and lay the Gray Support Tubes hazard. Exercise caution (P4) down in front to avoid interference while attaching the Table Top. when completing the remaining assembly steps.
- Page 8 STEP 5 Hardware Needed: ASSEMBLY TIP: if there are three (3) assemblers, have two lift the table with one guiding the table onto the tubes. Table Tennis Table Top 2.PCS WARNING: • At least (2) to three (3) adults are required for the following steps.
- Page 9 STEP 6 Hardware Needed: Bolt M8x60MM 4.PCS M8 Lock nut 4.PCS M8 Plastic Washer 4.PCS CAUTION: M8 Washer 8.PCS DO NOT overtighten the nuts, as this will apply too much pressure to the spacers and Support Tube 4.PCS may cause them to crack. WARNING: Support Attachment •...
-
Page 10: Property Damage
STEP 7 Hardware Needed: 3.0x12MM Screw 4.PCS WARNING: • DO NOT open the table to playing position until all support beams and hinges are attached to table frame. • DO NOT leave table unattented in the upright position. Table is not secure yet and can be knocked over causing bodily injury or property damage... - Page 11 STEP 8 Hardware Needed: Bolt M6x45MM 4.PCS M6 Lock nut 4.PCS M6 Plastic Spacer 4.PCS M6 Washer 8.PCS Strut Tube 4.PCS Hinge Attachment • Ensure the hinge is bent with the elbow on the bottom making, a WARNING: “V” shape. WARNING: It is very important the hinge is assembled •...
-
Page 12: Accessory Holder
STEP 9 Hardware Needed: Accessory Holder 3.PCS M6 Lock nut 2.PCS M6x15mm Phillips Head Machine Bolt 2.PCS Accessory Holder • Assemble Accessory Holder by positioning one of the plastic pieces over one of the pre-drilled holes on the H frame. •... - Page 13 STEP 10 WARNING: • Area should be clear of children, pets, and any other obstacles when moving the table in different position. • DO NOT allow children to climb between, under or over any part of the table. • Adults only should move or open/close the table. •...
- Page 14 Putting the Table Play-Back and Play Mode • After correctly assembling both Table Tops, your table can safely be moved from storage mode (Figure 1) to the play-back (Figure 3) or normal (Figure 4) play position. • Grab the center of the top edge with both hands. WITH CAUTION, gently pull the table outward until you feel the legs rest on the floor as shown.
- Page 15 STEP 11 Hardware Needed: Net Clipper 2.PCS Net 1.PCS • Now that your table is in play position, you are ready to assemble the net. • Secure the Net Clipper (P7) to your Table Top (P1) by clipping it near the center of the two Table Tops. NOTE: If you plan on putting the Table in storage mode, you will want to clip it to only one Table Top surface as close to the center as possible.
- Page 16 Features: • Box Steel Apron for Durability • Comes with 50% Pre-assembled • Easy Set-up by Two People in just 40 minutes • Includes Net and Clip Set • For Indoor Use Only • DSG Exclusive • Swivel Wheels with Locking Casters for Safe Transport •...
- Page 17 www.SereneLifeHome.com...
- Page 18 Questions? Issues? We are here to help! Phone: (1) 718-535-1800 Email: support@pyleusa.com...
