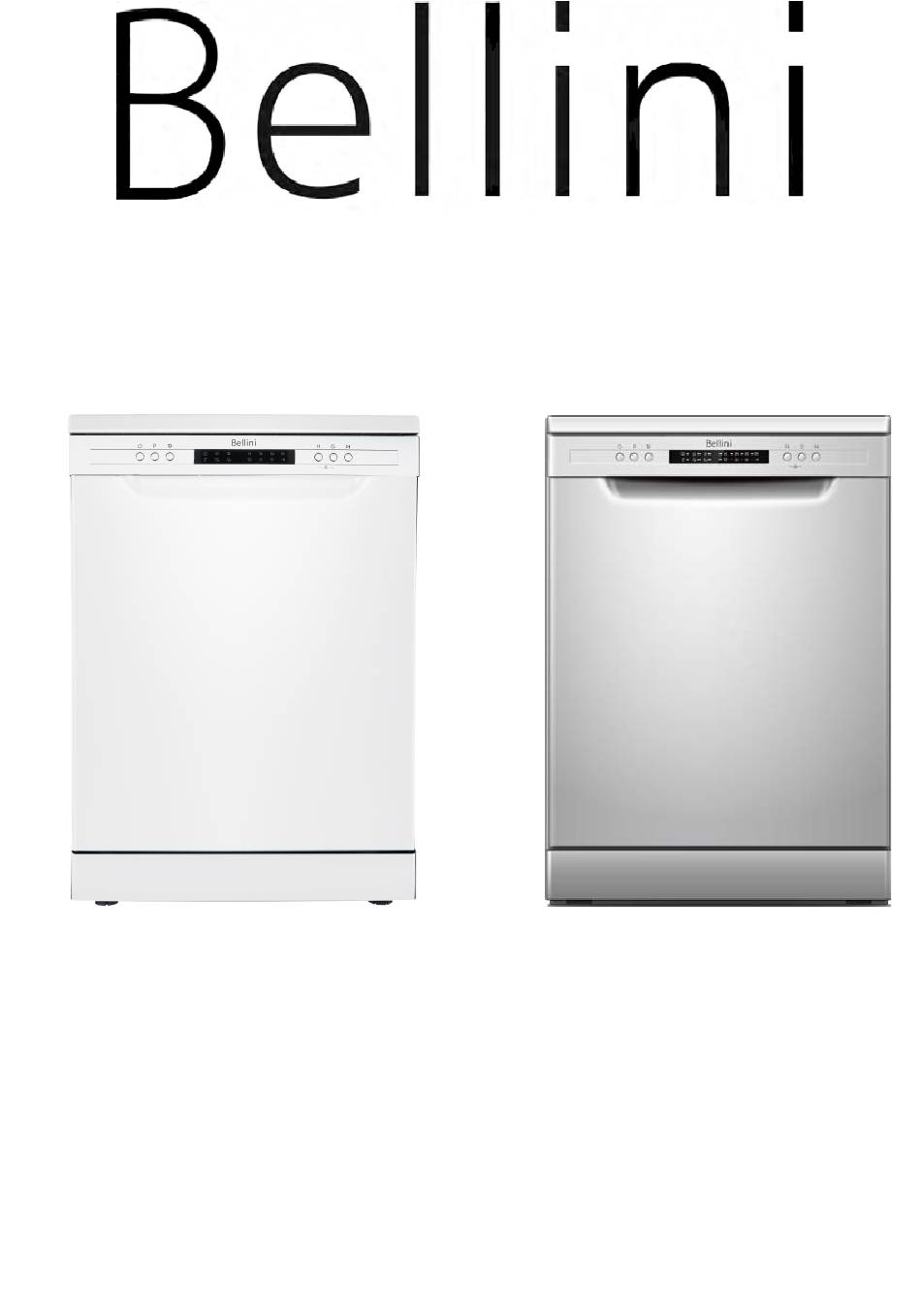

- Page 1 INSTALLATION & OPERATION INSTRUCTIONS 60cm Freestanding Dishwasher Model No. BDWM46W BDWM46W-F BDWM46X BDWM46X-F V3 July22 'We recommend you open the door slightly 50mm to assist in the drying of the dishes after every wash as the drying of the dishes is a natural process'...
- Page 2 Thank you Thank you for choosing Bellini Appliances. All Bellini appliances carry a 3 year In Home warranty, be sure to retain your installation and user manual and receipt. For all warranty and technical queries please contact Australia 1300 373 199...
-
Page 3: Table Of Contents
CONTENTS SAFETY INFORMATION PRODUCT OVERVIEW USING YOUR DISHWASHER Basket Used Tips MAINTENANCE AND CLEANING External Care Internal Care Caring For The Dishwasher INSTALLATION INSTRUCTION About Power Connection Water Supply And Drain Connection Of Drain Hoses Position The Appliance Free Standing Installation TROUBLESHOOTING TIPS LOADING THE BASKETS ACCORDING TO AS/NZS 2007.1 NOTE:... -
Page 4: Safety Information
SAFETY INFORMATION WARNING When using your dishwasher , follow the precautions listed below: Installation and repair can only be carried out by a qualified technician This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments;... - Page 5 mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. (For IEC60335-1 ) Packaging material could be dangerous for children! This appliance is for indoor household use only. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
- Page 6 Do not modify the plug provided with the appliance; If it does not fit the outlet. Have a proper outlet installed by a qualified electrician. Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. Do not operate your dishwasher unless all enclosure panels are properly in place.
- Page 7 Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For unmarked plastic items not so marked, check the manufacturer's recommendations. Use only detergent and rinse agents recommended for use in an automatic dishwasher. Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
- Page 8 Disposal For disposing of package and the appliance please go to a recycling center. Therefore cut off the power supply cable and make the door closing device unusable. Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.
-
Page 9: Product Overview
PRODUCT OVERVIEW IMPORTANT: To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Inner pipe Lower spray arm Filter assembly Dispenser Cutlery rack Upper spray arm Cup rack Cutlery basket Upper basket Lower basket NOTE: Pictures are only for reference, different models may be different. -
Page 10: Using Your Dishwasher
USING YOUR DISHWASHER Before using your dishwasher : Inside Outside 1. Loading the basket 2. Fill the rinse aid dispenser (Please check the section 1 of PART Ⅱ: Special Version) 3. Fill in detergent (Please check the section 1 of PART Ⅱ: Special Version) Basket Used Tips Adjusting the upper basket Type 1:... - Page 11 Type 2: To raise the upper basket just lift To lower the upper basket, lift the the upper basket at the center of adjust handles on each side to each side until the basket locks into release the basket and lower it to place in the upper position.
-
Page 12: Maintenance And Cleaning
MAINTENANCE AND CLEANING External Care The door and the door seal Clean the door seals regularly with a soft damp cloth to remove food deposits. When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arms. - Page 13 Coarse filter Coarse filter Main filter Main filter Fine filter Open Open Hold the coarse filter and rotate it The fine filter can be pulled off the anticlockwise to unlock the filter. bottom of the filter assembly. Lift the filter upwards and out of The coarse filter can be detached the dishwasher.
- Page 14 Spray arms It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To clean the spray arms, follow the instructions below: To remove the upper spray arm, To remove the lower spray arm, pull hold the nut in the center still and out the spray arm upward.
-
Page 15: Caring For The Dishwasher
Caring For The Dishwasher Frost precaution Please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows: 1. Cut off the electrical power to the dishwasher at the supply source. 2. Turn off the water supply and disconnect the water inlet pipe from the water valve. 3. -
Page 16: Installation Instruction
INSTALLATION INSTRUCTION WARNING Electrical Shock Hazard Disconnect electrical power before installing dishwasher. Failure to do so could result in death or electrical shock. Attention The installation of the pipes and electrical equipments should be done by professionals. About Power Connection WARNING For personal safety: Do not use an extension cord or an adapter... -
Page 17: Water Supply And Drain
Water Supply And Drain Cold water connection Connect the cold water supply hose to a threaded 3/4 inch connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure ordinary supply hose that the water is clear. -
Page 18: Connection Of Drain Hoses
Connection Of Drain Hoses Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping it. The height of drain pipe must be less than 1000mm. The free end of the hose must not be immersed in water to avoid the back flow of it. -
Page 19: Position The Appliance
Position The Appliance Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation. - Page 20 Underneath existing work top (When fitting beneath a work top) In most modern fitted kitchens there is only one single work top under which cabinets and electrical appliances are fitted. In this case remove the work top of the dishwasher by unscrewing the screws under the rear edge of the top (a).
-
Page 21: Troubleshooting Tips
TROUBLESHOOTING TIPS Before Calling For Service Reviewing the charts on the following pages may save you from calling for service. Problem Possible Causes What To Do Dishwasher doesn't Fuse blown, or the Replace fuse or reset circuit breaker. start circuit break tripped. Remove any other appliances sharing the same circuit with the dishwasher. - Page 22 Problem Possible Causes What To Do Spilled rinse-aid. Always wipe up rinse-aid spills immediately. Stained tub interior Detergent with Make sure that the detergent has no colourant may colourant. have been used. White film on Hard water minerals. To clean the interior, use a damp inside surface sponge with dishwasher detergent and wear rubber gloves.
- Page 23 Problem Possible Causes What To Do The dishes Not enough detergent Use more detergent, or change are not clean. was dispensed. your detergent. Items are blocking Rearrange the items so that the spray the movement of can rotate freely. the spray arms. The filter combination Clean and/or fit the filter correctly.
- Page 24 Problem Possible Causes What To Do The dishes aren't Wrong program has With a short program, the washing drying been selected. temperature is lower, decreasing cleaning performance. Choose a program with a long washing time. Use of cutlery with a Water drainage is more difficult with low-quality coating.
-
Page 25: Loading The Baskets According To As/Nzs 2007.1
LOADING THE BASKETS ACCORDING TO AS/NZS 2007.1: 1.Upper basket: Number Item Cups Saucers Glasses Dessert dishes Rack Forks knives NOTE: Please place the light flat wares on the rack. The total weight is less than 1.5kg. Item Number Dinner plates Soup plates Cutlery besket... - Page 26 3.Cutlery rack/basket: 4 4 4 Item Number Information for comparability tests in accordance with (*AS/NZS 2007.1 ) Soup spoons Capacity: 14 place settings Forks Position of the upper basket: lower position Program: ECO Knives Rinse aid setting: 6 Teaspoons Detergent(Pre/main): 5g/27.5g Door is open at the end of the drying cycle Dessert spoons for the drying performance test...
- Page 27 PART Ⅱ: Special Version BDWM46X, BDWM46X-F, BDWM46W, BDWM46W-F Please read this manual carefully before using the dishwasher and Keep this manual for future reference.
- Page 28 CONTENTS USING YOUR DISHWASHER Control Panel Preparing And Loading Dishes Function Of The Rinse Aid And Detergent Filling The Rinse Aid Reservoir Filling The Detergent Dispenser PROGRAMMING THE DISHWASHER Wash Cycle Table Starting A Cycle Wash Changing The Program Mid-cycle Forget To Add A Dish? ERROR CODES TECHNICAL INFORMATION...
- Page 29 QUICK USER GUIDE Please read the corresponding content on the instruction manual for detailed operating method. Install the dishwasher (Please check the section 5 “INSTALLATION INSTRUCTION ” PART Ⅰ: Generic Version.) Inside Outside Loading the baskets Removing the larger residue on the cutlery Filling the dispenser Selecting a program and running...
-
Page 30: Using Your Dishwasher
USING YOUR DISHWASHER Control Panel Operation (Button) Power Press this button to turn on your dishwasher, the screen lights up. Press this button to select the appropriate washing program, the Program selected program indicator will be lit. To dry dishes more completely. (It can only be used with Intensive, Extra Drying Heavy, Normal, Glass, 90mins) When you have about or less than 6 place setting dishware to... - Page 31 Display Intensive For heaviest soiled crockery, such as pots, pans, casserole dishes and dishes that have been sitting with dried food on them for some time. Heavy For heavily soiled loads, such as pots, plates, glasses and lightly soiled pans. Normal Cycle For normally soiled loads, such as pots, plates, glasses and...
-
Page 32: Preparing And Loading Dishes
Preparing And Loading Dishes Consider buying utensils which are identified as dishwasher-proof. For particular items, select a program with the lowest possible temperature. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended. For washing the following cutlery/dishes Are not suitable Cutlery with wooden, horn china or mother-of-pearl handles... - Page 33 Recommendations for loading the dishwasher Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water. For best performance of the dishwasher, follow these loading guidelines. (Features and appearance of baskets and cutlery baskets may vary from your model.) Place objects in the dishwasher in following way:...
- Page 34 Loading the upper basket The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.
-
Page 35: Function Of The Rinse Aid And Detergent
Function Of The Rinse Aid And Detergent The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. WARNING Only use branded rinse aid for dishwasher. -
Page 36: Filling The Rinse Aid Reservoir
Filling The Rinse Aid Reservoir Rinse-Aid indicator To open the dispenser, turn the cap Carefully pour in the rinse-aid into to the "open" (left) arrow and lift its dispenser, whilst avoiding it to it out. overflow. NOTE: Clean up any spilled rinse aid with an absorbent cloth to avoid excessive foaming during the next wash. -
Page 37: Filling The Detergent Dispenser
Filling The Detergent Dispenser Push latch to open Press the release catch on the detergent Add detergent into the larger cavity dispenser to open the cover. (A) for the main wash cycle . For more heavily soiled wash loads, also add some detergent into the smaller cavity (B) for the pre-wash cycle . -
Page 38: Programming The Dishwasher
PROGRAMMING THE DISHWASHER Wash Cycle Table The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs. )Means: need to fill rinse into the Rinse-Aid Dispenser. Description Energy Water... -
Page 39: Starting A Cycle Wash
NOTE: AS/NZS 2007.1 This program is the test cycle. The information for comparability test in accordance with AS/NZS 2007.1 Starting A Cycle Wash 1. Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one. 2. -
Page 40: Forget To Add A Dish
Forget To Add A Dish? A forgotten dish can be added any time before the detergent dispenser opens. If this is the case, follow the instructions below: 1. Press the Start/Pause button to pause the washing. 2. Wait 5 seconds then open the door. 3. -
Page 41: Error Codes
ERROR CODES If there is a malfunction, the dishwasher will display error codes to identify these: Meanings Codes Possible Causes Faucets is not opened, or water intake is The Rapid indicator Longer inlet time. restricted, or water pressure is too low. fleets frequently The 90 mins and Not reaching required... -
Page 42: Technical Information
TECHNICAL INFORMATION Height (H) 845mm Width (W) 598mm Depth (D1) 610mm (with the door closed) Depth (D2) 1175mm (with the door opened 90°) - Page 43 Product fiche Bellini Manufacturer BDWM46X, BDWM46X-F, Type / Description BDWM46W, BDWM46W-F Standard place settings Energy efficiency class Water consumption class Standard cleaning cycle Normal Energy consumption of the standard cleaning cycle 0.8 kWh Water consumption of the standard cleaning cycle 12.5 liter...
- Page 44 Consumer until the expiry of three (3) year (Warranty Period). If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform to the Company’s specifications as a result of some defect in materials, components or workmanship (Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini product free of charge.
- Page 45 1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or its service agent.
