INSTRUCTIONS MANUAL

PART I

60cm Stainless Steel Dishwasher

Model: BDW612X | BDW612X-F

GSM Retail Australia Pty Ltd ABN: 53 007 682 475

For Warranty and technical queries: Australia 1300 373 199

For Warranty and technical queries: New Zealand 0800 764 912

V1 June 2024

www.belliniappliances.com.au

Need help?

Do you have a question about the BDW612X and is the answer not in the manual?

Questions and answers

Summary of Contents for Bellini BDW612X

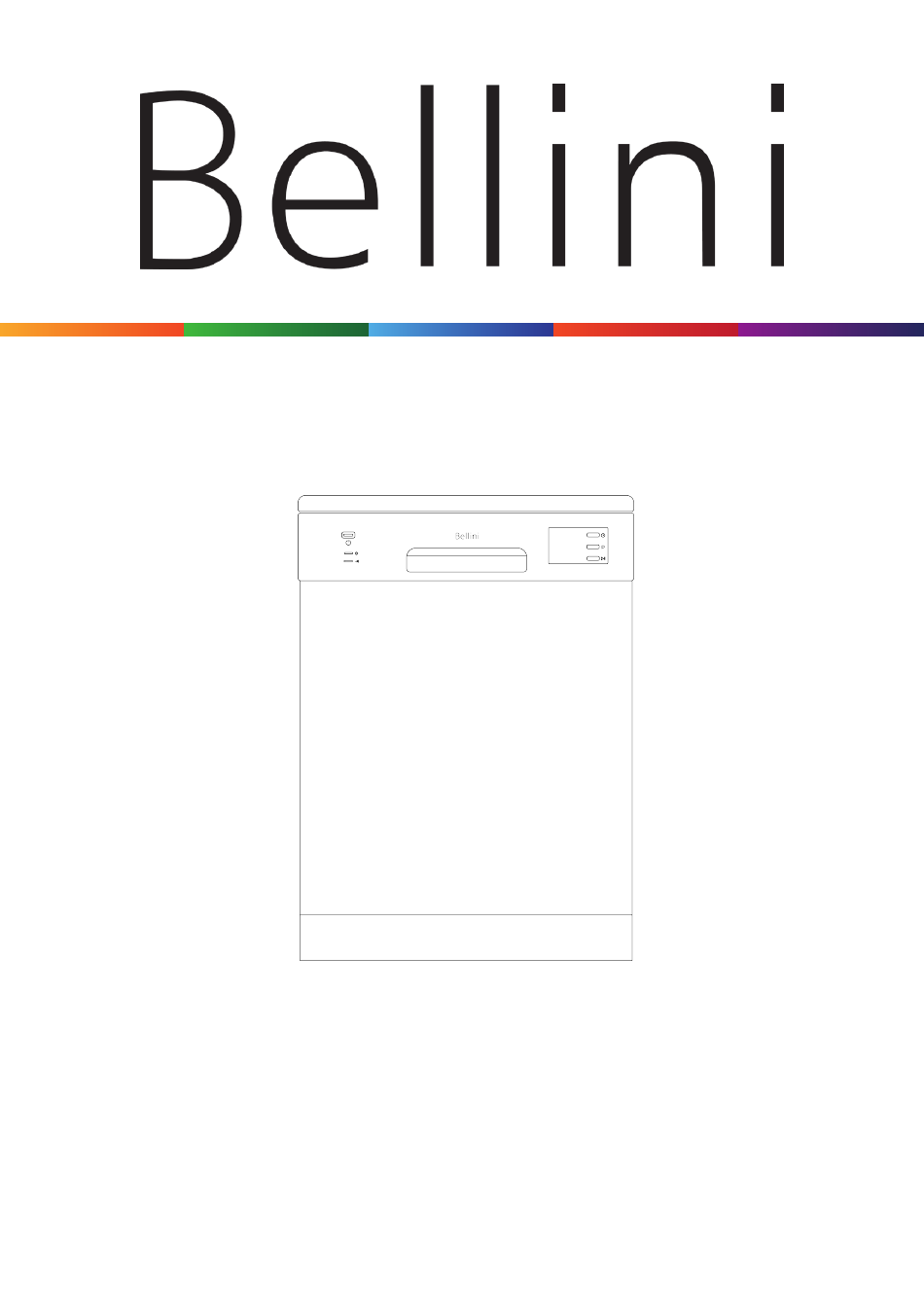

Page 1 INSTRUCTIONS MANUAL PART I 60cm Stainless Steel Dishwasher Model: BDW612X | BDW612X-F GSM Retail Australia Pty Ltd ABN: 53 007 682 475 For Warranty and technical queries: Australia 1300 373 199 For Warranty and technical queries: New Zealand 0800 764 912 V1 June 2024 www.belliniappliances.com.au...
Page 2 Thank you. Thank you for choosing Bellini Appliances. This Bellini appliance carries a 3 year in home warranty, be sure to retain your user manual and receipt. For all warranty and technical queries please phone: Aust: 1300 373 199 NZ: 0800 764 912...
Page 3 CONTENTS SAFETY INFORMATION PRODUCT OVERVIEW USING YOUR DISHWASHER Basket Used Tips MAINTENANCE AND CLEANING External Care Internal Care Caring For The Dishwasher INSTALLATION INSTRUCTION About Power Connection Water Supply And Drain Connection Of Drain Hoses Position The Appliance Free Standing Installation TROUBLESHOOTING TIPS LOADING THE BASKETS ACCORDING TO AS/NZS 2007.1 NOTE:...
Page 4 SAFETY INFORMATION WARNING When using your dishwasher , follow the precautions listed below: Installation and repair can only be carried out by a qualified technician This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments;...
Page 5 mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. (For IEC60335-1 ) Packaging material could be dangerous for children! This appliance is for indoor household use only. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
Page 6 Do not modify the plug provided with the appliance; If it does not fit the outlet. Have a proper outlet installed by a qualified electrician. Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. Do not operate your dishwasher unless all enclosure panels are properly in place.
Page 7 Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For unmarked plastic items not so marked, check the manufacturer's recommendations. Use only detergent and rinse agents recommended for use in an automatic dishwasher. Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
Page 8 Disposal For disposing of package and the appliance please go to a recycling center. Therefore cut off the power supply cable and make the door closing device unusable. Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.
Page 9 PRODUCT OVERVIEW IMPORTANT: To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Inner pipe Lower spray arm Filter assembly Dispenser upper spray arm Cup rack Cutlery basket Upper basket Lower basket NOTE: Pictures are only for reference, different models may be different.
Page 10 USING YOUR DISHWASHER Before using your dishwasher : Inside Outside 1. Loading the basket 2. Fill the rinse aid dispenser (Please check the section 1 of PART Ⅱ: Special Version) 3. Fill in detergent (Please check the section 1 of PART Ⅱ: Special Version) Basket Used Tips Adjusting the upper basket Type 1:...
Page 11 Folding back the cup shelves To make room for taller items in the upper basket, raise the cup rack upwards. You can then lean the tall glasses against it. You can also remove it when it is not required for use. Folding back the rack shelves The spikes of the lower basket are used for holding plates and a platter.
Page 12 MAINTENANCE AND CLEANING External Care The door and the door seal Clean the door seals regularly with a soft damp cloth to remove food deposits. When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arms.
Page 13 Coarse filter Coarse filter Main filter Main filter Fine filter Open Open Hold the coarse filter and rotate it The fine filter can be pulled off the anticlockwise to unlock the filter. bottom of the filter assembly. Lift the filter upwards and out of The coarse filter can be detached the dishwasher.
Page 14 Spray arms It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To clean the spray arms, follow the instructions below: To remove the upper spray arm, To remove the lower spray arm, pull hold the nut in the center still and out the spray arm upward.
Page 15 Caring For The Dishwasher Frost precaution Please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows: 1. Cut off the electrical power to the dishwasher at the supply source. 2. Turn off the water supply and disconnect the water inlet pipe from the water valve. 3.
Page 16 INSTALLATION INSTRUCTION WARNING Electrical Shock Hazard Disconnect electrical power before installing dishwasher. Failure to do so could result in death or electrical shock. Attention The installation of the pipes and electrical equipments should be done by professionals. About Power Connection WARNING For personal safety: Do not use an extension cord or an adapter...
Page 17 Water Supply And Drain Cold water connection Connect the cold water supply hose to a threaded 3/4 inch connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure ordinary supply hose that the water is clear.
Page 18 Connection Of Drain Hoses Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping it. The height of drain pipe must be less than 1000mm. The free end of the hose must not be immersed in water to avoid the back flow of it.
Page 19 Position The Appliance Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.
Page 20 Type 2: Underneath existing work top (When fitting beneath a work top) In most modern fitted kitchens there is only one single work top under which cabinets and electrical appliances are fitted. In this case remove the work top of the dishwasher by unscrewing the screws under the rear edge of the top (a).
Page 21 2. If dishwasher is in stalled at the corner of the cabinet, there should be some space when the door is opened. Cabinet Dishwasher Door of dishwasher Minimum space of 50mm NOTE: Depending on where your electrical outlet is, you may need to cut a hole in the opposite cabinet side.
Page 22 TROUBLESHOOTING TIPS Before Calling For Service Reviewing the charts on the following pages may save you from calling for service. Problem Possible Causes What To Do Dishwasher doesn't Fuse blown, or the Replace fuse or reset circuit breaker. start circuit break tripped. Remove any other appliances sharing the same circuit with the dishwasher.
Page 23 Problem Possible Causes What To Do Spilled rinse-aid. Always wipe up rinse-aid spills immediately. Stained tub interior Detergent with Make sure that the detergent has no colourant may colourant. have been used. White film on Hard water minerals. To clean the interior, use a damp inside surface sponge with dishwasher detergent and wear rubber gloves.
Page 24 Problem Possible Causes What To Do The dishes Not enough detergent Use more detergent, or change are not clean. was dispensed. your detergent. Items are blocking Rearrange the items so that the spray the movement of can rotate freely. the spray arms. The filter combination Clean and/or fit the filter correctly.
Page 25 Problem Possible Causes What To Do The dishes aren't Wrong program has With a short program, the washing drying been selected. temperature is lower, decreasing cleaning performance. Choose a program with a long washing time. Use of cutlery with a Water drainage is more difficult with low-quality coating.
Page 26 LOADING THE BASKETS ACCORDING TO AS/NZS 2007.1: 1.Upper basket: Item Number Cups Saucers Glasses Item Number Dinner plates Soup plates Dessert dishes Cutlery basket...
Page 27 3.Cutlery basket: Item Number Forks Soup spoons Dessert spoons 4 4 4 Teaspoons Knives Information for comparability tests in accordance with (*AS/NZS 2007.1 ) Capacity: 12 place settings Position of the upper basket: lower position Program: ECO Rinse aid setting: 6 Detergent(Pre/main): 5/25g Door is open at the end of the drying cycle for the drying performance test (Door position: Open 50 mm)
Page 28 INSTRUCTIONS MANUAL PART II 60cm Stainless Steel Dishwasher Model: BDW612X | BDW612X-F GSM Retail Australia Pty Ltd ABN: 53 007 682 475 For Warranty and technical queries: Australia 1300 373 199 For Warranty and technical queries: New Zealand 0800 764 912 V1 June 2024 www.belliniappliances.com.au...
Page 29 CONTENTS USING YOUR DISHWASHER Control Panel Preparing And Loading Dishes Function Of The Rinse Aid And Detergent Filling The Rinse Aid Reservoir Filling The Detergent Dispenser PROGRAM SELECTION Saving Energy Starting A Program Changing The Program Mid-cycle Forget To Add A Dish? ERROR CODES TECHNICAL INFORMATION NOTE:...
Page 30 QUICK USER GUIDE Please read the corresponding content on the instruction manual for detailed operating method. Install the dishwasher (Please check the section 5 “INSTALLATION INSTRUCTION ” of PART Ⅰ: Generic Version.) Inside Outside Load the baskets. Remove larger residue from dishes. Avoid pre-rinsing.
Page 31 USING YOUR DISHWASHER Control Panel Operation (Button) Press this button to turn on your dishwasher, the screen lights up. Power Press the Delay button to increase the delay start time. Delay a Delay cycle for up to 24 hours in one-hour increments. After setting the delay time, press the Start/Pause button to start.
Page 32 Glass For lightly soiled crockery and glass. 90 Min For lightly soiled plates and pans that need quick wash. Rapid A shorter wash for lightly soiled loads that do not Program need drying. indicator Intensive For heaviest soiled crockery, such as pots, pans, casserole dishes and dishes that have been sitting with dried food on them for a while.
Page 33 Preparing And Loading Dishes Consider buying utensils which are identified as dishwasher-proof. For particular items, select a program with the lowest possible temperature. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended. For washing the following cutlery/dishes Are not suitable Cutlery with wooden, horn china or mother-of-pearl handles...
Page 34 Recommendations for loading the dishwasher Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water. For best performance of the dishwasher, follow these loading guidelines. (Features and appearance of baskets and cutlery baskets may vary from your model.) Place objects in the dishwasher in...
Page 35 Loading the upper basket The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty. Position the dishes and cookware so that they will not get moved by the spray of water.
Page 36 Function Of The Rinse Aid And Detergent The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to run off the dishes. Your dishwasher is designed to use liquid rinse aids. WARNING Only use branded rinse aid for dishwasher.
Page 37 Filling The Rinse Aid Reservoir Remove the rinse aid reservoir cap Carefully pour in the rinse aid into by rotating it counterclockwise. dispenser, whilst avoiding it to overflow. NOTE: Clean up any spilled rinse aid with an absorbent cloth to avoid excessive foaming during the next wash.
Page 38 Filling The Detergent Dispenser Push latch to open Press the release catch on the detergent Add detergent into the larger cavity dispenser to open the cover. (A) for the main wash cycle . For more heavily soiled wash loads, also add some detergent into the smaller cavity (B) for the pre-wash cycle .
Page 39 PROGRAMMING THE DISHWASHER Wash Cycle Table The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs.Consumption values and program duration are only indicative except for ECO program.
Page 40 NOTE: *AS/NZS 2007.1 This program is the test cycle. The information for comparability test in accordance with *AS/NZS 2007.1. Saving Energy 1. Pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended. 2. Washing tableware in a household dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the household dishwasher is used according to the instructions.
Page 41 Forget To Add A Dish? A forgotten dish can be added any time before the detergent dispenser opens. If this is the case, follow the instructions below: 1. Press the Start/Pause button to pause the washing. 2. Wait 5 seconds then open the door. 3.
Page 42 ERROR CODES If there is a malfunction the dishwasher will display an error code. The following table shows possible error codes and their causes. Codes Meanings Possible Causes Faucets is not opened, or water intake is Longer inlet time. restricted,or water pressure is too low. Not reaching required Malfunction of heating element.
Page 43 TECHNICAL INFORMATION Height (H) 845mm Width (W) 598mm Depth (D1) 600mm (with the door closed) Depth (D2) 1175mm (with the door opened 90°)
Page 44 Product fiche Manufacturer Bellini BDW612X-F | BDW612X Type / Description Standard place settings Energy efficiency class Water consumption class Standard cleaning cycle Energy consumption of the standard cleaning cycle 0.73 kWh Water consumption of the standard cleaning cycle 10.7 liter...
Page 45 Consumer until the expiry of !’No (3) year (Warranty Period). 1.6 If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform to the Company’s specifications as a result of some defect in materials, components or workmanship (Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini product free of charge.
Page 46 1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or its service agent.
