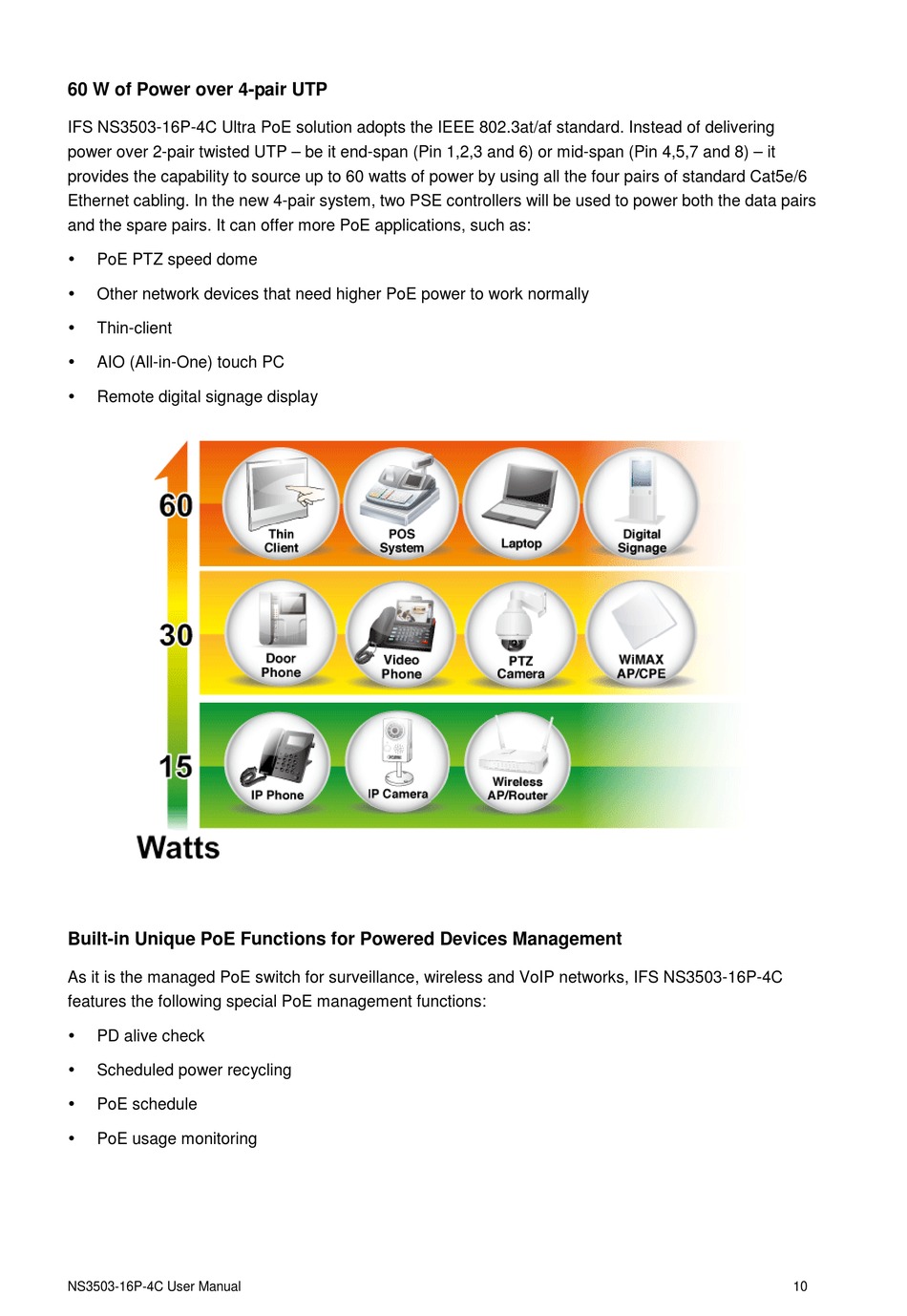

60 W of Power over 4-pair UTP
IFS NS3503-16P-4C Ultra PoE solution adopts the IEEE 802.3at/af standard. Instead of delivering
power over 2-pair twisted UTP – be it end-span (Pin 1,2,3 and 6) or mid-span (Pin 4,5,7 and 8) – it
provides the capability to source up to 60 watts of power by using all the four pairs of standard Cat5e/6
Ethernet cabling. In the new 4-pair system, two PSE controllers will be used to power both the data pairs
and the spare pairs. It can offer more PoE applications, such as:

PoE PTZ speed dome

Other network devices that need higher PoE power to work normally

Thin-client

AIO (All-in-One) touch PC

Remote digital signage display

Built-in Unique PoE Functions for Powered Devices Management

As it is the managed PoE switch for surveillance, wireless and VoIP networks, IFS NS3503-16P-4C
features the following special PoE management functions:

PD alive check

Scheduled power recycling

PoE schedule

PoE usage monitoring
