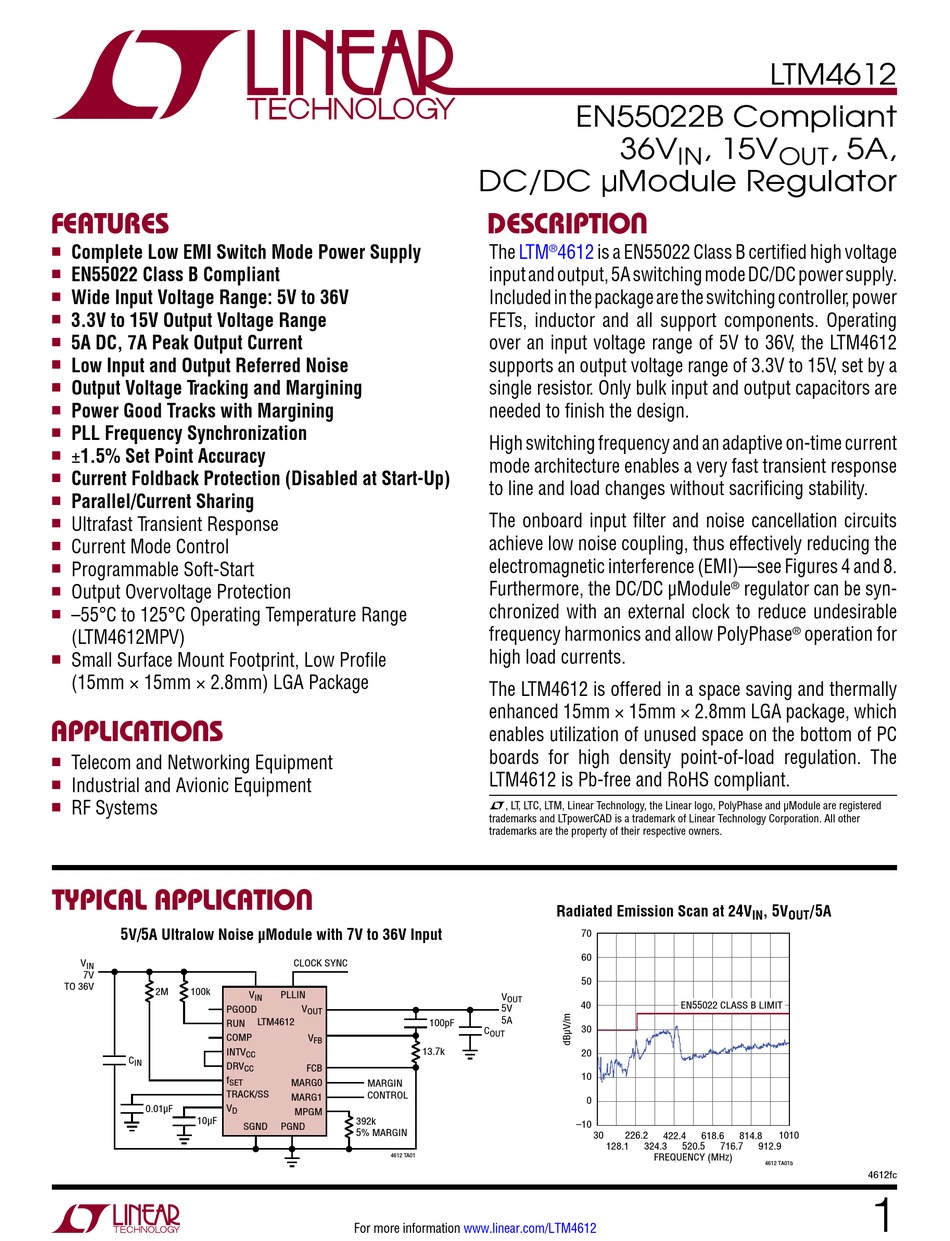

Linear Technology LTM4612 Manual

Compliant 36vin, 15vout, 5a, dc/dc µmodule regulator

Advertisement

Quick Links

FEATURES
Complete Low EMI Switch Mode Power Supply
n
EN55022 Class B Compliant
n
Wide Input Voltage Range: 5V to 36V
n
3.3V to 15V Output Voltage Range
n
5A DC, 7A Peak Output Current
n
Low Input and Output Referred Noise
n
Output Voltage Tracking and Margining
n
Power Good Tracks with Margining
n
PLL Frequency Synchronization
n
±1.5% Set Point Accuracy
n
Current Foldback Protection (Disabled at Start-Up)
n
Parallel/Current Sharing
n
Ultrafast Transient Response
n
Current Mode Control
n
Programmable Soft-Start
n
Output Overvoltage Protection
n
–55°C to 125°C Operating Temperature Range
n
(LTM4612MPV)
Small Surface Mount Footprint, Low Profile
n
(15mm × 15mm × 2.8mm) LGA Package
APPLICATIONS
Telecom and Networking Equipment
n
Industrial and Avionic Equipment
n
RF Systems
n
TYPICAL APPLICATION
5V/5A Ultralow Noise µModule with 7V to 36V Input
V
IN
7V
TO 36V
2M
100k
PGOOD
RUN
COMP
INTV
C
IN
DRV
f
SET
TRACK/SS
V
0.01µF
10µF
CLOCK SYNC
V
PLLIN
IN
V
OUT
LTM4612
V
FB
CC
FCB
CC
MARG0
MARGIN
CONTROL
MARG1
D
MPGM
392k
SGND
PGND
5% MARGIN
4612 TA01
For more information
EN55022B Compliant
DC/DC µModule Regulator
DESCRIPTION
The
LTM
4612
is a EN55022 Class B certified high voltage
®
input and output, 5A switching mode DC/DC power supply.
Included in the package are the switching controller, power
FETs, inductor and all support components. Operating
over an input voltage range of 5V to 36V, the LTM4612
supports an output voltage range of 3.3V to 15V, set by a
single resistor. Only bulk input and output capacitors are
needed to finish the design.
High switching frequency and an adaptive on-time current
mode architecture enables a very fast transient response
to line and load changes without sacrificing stability.
The onboard input filter and noise cancellation circuits
achieve low noise coupling, thus effectively reducing the
electromagnetic interference (EMI)—see Figures 4 and 8.
Furthermore, the DC/DC µModule
chronized with an external clock to reduce undesirable
frequency harmonics and allow PolyPhase
high load currents.
The LTM4612 is offered in a space saving and thermally
enhanced 15mm × 15mm × 2.8mm LGA package, which
enables utilization of unused space on the bottom of PC
boards for high density point-of-load regulation. The
LTM4612 is Pb-free and RoHS compliant.
L, LT, LTC, LTM, Linear Technology, the Linear logo, PolyPhase and µModule are registered
trademarks and LTpowerCAD is a trademark of Linear Technology Corporation. All other
trademarks are the property of their respective owners.
Radiated Emission Scan at 24V
70
60
50
V
OUT
40
5V
5A
100pF
30
C
OUT
13.7k
20
10
0
–10
30
www.linear.com/LTM4612
LTM4612
36V
, 15V
IN
OUT
regulator can be syn-
®
, 5V
IN
EN55022 CLASS B LIMIT
226.2
422.4
618.6
814.8
1010
128.1
324.3
520.5
716.7
912.9
FREQUENCY (MHz)
4612 TA01b
, 5A,
operation for
®
/5A
OUT
4612fc
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LTM4612 and is the answer not in the manual?

Questions and answers

Summary of Contents for Linear Technology LTM4612

  • Page 1 Industrial and Avionic Equipment RF Systems L, LT, LTC, LTM, Linear Technology, the Linear logo, PolyPhase and µModule are registered trademarks and LTpowerCAD is a trademark of Linear Technology Corporation. All other trademarks are the property of their respective owners.
  • Page 2: Absolute Maximum Ratings

    LTM4612 ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1) TOP VIEW INTV ..........–0.3V to 6V ............–0.3V to 16V PLLIN, FCB, TRACK/SS, MPGM, MARG0, MARG1, PGOOD ....–0.3V to INTV + 0.3V BANK 1 RUN ............. –0.3V to 5V MARG0 SGND , COMP ..........
  • Page 3 LTM4612 ELECTRICAL CHARACTERISTICS denotes the specifications which apply over the specified internal operating temperature range, otherwise specifications are at T = 25°C, V = 24V, unless otherwise noted (Note 2). Per Typical Application (front page) configuration. SYMBOL PARAMETER CONDITIONS UNITS...
  • Page 4 LTM4612 ELECTRICAL CHARACTERISTICS denotes the specifications which apply over the specified internal operating temperature range, otherwise specifications are at T = 25°C, V = 24V, unless otherwise noted (Note 2). Per Typical Application (front page) configuration. SYMBOL PARAMETER CONDITIONS UNITS...
  • Page 5: Typical Performance Characteristics

    LTM4612 TYPICAL PERFORMANCE CHARACTERISTICS (Refer to Figure 18) Efficiency vs Load Current with Efficiency vs Load Current with Efficiency vs Load Current with 3.3V (FCB = 0) (FCB = 0) (FCB = 0) 3.3V 3.3V 3.3V 3.3V LOAD CURRENT (A)
  • Page 6 LTM4612 TYPICAL PERFORMANCE CHARACTERISTICS Start-Up with 24V to 12V Short-Circuit with 24V to 12V Short-Circuit with 24V to 12V = 5A, T = –55°C at I = 0A at I = 5A 2A/DIV 0.2A/DIV 5V/DIV 5V/DIV 5V/DIV 1A/DIV 50µs/DIV 500µs/DIV 20µs/DIV...
  • Page 7: Pin Functions

    GND pins (see the LTM4612 Pin Configuration below). Slave operation is performed by putting a resistor divider (Pins B7, C7): Top FET Drain Pins. Add more capa-...
  • Page 8 LTM4612 PIN FUNCTIONS (Pin F12): The Negative Input of the Error Ampli- COMP (Pins A11, D11): Current Control Threshold and fier. Internally, this pin is connected to V with a 100k Error Amplifier Compensation Point. The current com- 0.5% precision resistor. Different output voltages can be parator threshold increases with this control voltage.
  • Page 9: Block Diagram

    LTM4612 BLOCK DIAGRAM > 1.9V = ON < 1V = OFF MAX = 5V INPUT FILTER 20V TO 36V PGOOD 5.1V 1µF ZENER COMP 100k INTERNAL COMP POWER CONTROL SGND 2.7µH MARG1 AT 4A MARG0 NOISE 10µF CANCEL- LATION 5.23k 93.1k...
  • Page 10: Operation

    FET M1 is turned off and bottom FET M2 is turned on and held on until the overvoltage condition clears. APPLICATIONS INFORMATION The typical LTM4612 application circuit is shown in Figure to V Stepdown Ratios 18. External component selection is primarily determined...
  • Page 11 LTM4612 APPLICATIONS INFORMATION Output Voltage Programming and Margining resistor on the MPGM pin programs the current. Calculate V OUT(MARGIN) The PWM controller has an internal 0.6V reference voltage. As shown in the Block Diagram, a 100k internal feedback • V...
  • Page 12 If constant frequency is a necessity, the −10 1.5 • 10 || 93.1k PLLIN pin can be used to synchronize the frequency of fSET the LTM4612 to an external clock, as shown in Figures 21 to 23. 1200 1000 = 36V = 28V...
  • Page 13 V pads and placed before the LTM4612 is designed to achieve the low input radiated EMI high frequency inductor to form the π filter. One of these noise due to the fast switching of turn-on and turn-off.
  • Page 14 Figure 5 provides a ratio of peak-to-peak output ripple current to the inductor ripple current as functions The LTM4612 is designed for low output voltage ripple. of duty cycle and the number of paralleled phases. Pick The bulk output capacitors defined as C...
  • Page 15 To further limit current in the event of an overload condi- same as the slave regulator’s feedback divider. Ratiometric tion, the LTM4612 provides foldback current limiting. If the modes of tracking can be achieved by selecting different output voltage falls by more than 50%, then the maximum resistor values to change the output tracking ratio.
  • Page 16 5V supply that powers the control circuitry and DRV for driving the internal power MOSFETs. Therefore, if • 1.5V UVLO the system does not have a 5V power rail, the LTM4612 can be directly powered by V . The gate driver current where R is the top resistor, and R is the bottom resistor.
  • Page 17 EMI noise. Figure 8 shows a derating curves in Figures 11 to 16 can be used with the typical example for the LTM4612 to meet the Class B of appropriate power loss curve in either Figure 9 or Figure EN55022 radiated emission limit.
  • Page 18 LTM4612 APPLICATIONS INFORMATION TO 15V 0LFM 400LFM TO 5V TO 12V AMBIENT TEMPERATURE (°C) LOAD CURRENT (A) LOAD CURRENT (A) 4612 F09 4612 F10 4612 F11 Figure 9. Power Loss at Figure 10. Power Loss at 5V Figure 11. No Heat Sink...
  • Page 19 LTM4612 APPLICATIONS INFORMATION Table 3. 12V and 15V Outputs DERATING CURVE POWER LOSS CURVE AIR FLOW (LFM) HEAT SINK (°C/W) θ Figures 11, 13, 15 24, 36 Figure 9 None Figures 11, 13, 15 24, 36 Figure 9 None Figures 11, 13, 15...
  • Page 20 Safety Considerations • Place a dedicated power ground layer underneath the unit. The LTM4612 modules do not provide isolation from V • Use round corners for the PCB copper layer to minimize to V . There is no internal fuse. If required, a slow blow the radiated noise.
  • Page 21 LTM4612 APPLICATIONS INFORMATION PULL-UP SUPPLY ≤ 5V CLOCK SYNC 22V TO 36V 10µF PLLIN 100k 100k PGOOD LTM4612 OUT1 OUT2 22pF ON/OFF 22µF 220µF COMP INTV 5.23k MARG0 MARGIN CONTROL MARG1 TRACK/SS 10µF REFER TO TABLE 2 50V CERAMIC MPGM...
  • Page 22 LTM4612 APPLICATIONS INFORMATION PULL-UP SUPPLY ≤ 5V CLOCK SYNC 26V TO 36V 10µF PLLIN 100k 100k PGOOD LTM4612 22pF OUT1 OUT2 ON/OFF 22µF 220µF COMP INTV 4.12k fSET 806k, 1% MARG0 MARGIN CONTROL MARG1 TRACK/SS MPGM 10µF SGND PGND 392k CERAMIC 0.01µF...
  • Page 23 LTM4612 APPLICATIONS INFORMATION PULL-UP SUPPLY ≤ 5V 22V TO 36V CLOCK SYNC 10µF 0° PHASE PLLIN 100k 100k 12V AT 5A PGOOD LTM4612 22pF 22µF 220µF COMP INTV 10µF MARG0 MARGIN CONTROL TRACK/SS MARG1 100µF MPGM SGND PGND 392k 5.23k 0.15µF...
  • Page 24 LTM4612 APPLICATIONS INFORMATION 7V TO 36V CLOCK SYNC 10µF 0° PHASE PLLIN 100k 100k 5V AT 5A PGOOD LTM4612 22pF COMP 22µF 220µF INTV 6.3V 6.3V 10µF MARG0 MARGIN CONTROL TRACK/SS MARG1 fSET1 100µF MPGM 150k SGND PGND 392k 13.7k 0.15µF...
  • Page 25: Package Description

    LTM4612 PACKAGE DESCRIPTION Pin Assignment Tables (Arranged by Pin Function) PIN NAME PIN NAME PIN NAME PIN NAME PGND INTV PGND PLLIN PGND TRACK/SS PGND PGND COMP PGND MPGM PGND PGND PGND PGND PGND MPGM PGND PGND PGND PGND PGND...
  • Page 26 LTM4612 PACKAGE DESCRIPTION Please refer to http://www.linear.com/product/LTM4612#packaging for the most recent package drawings. 4612fc For more information www.linear.com/LTM4612...
  • Page 27: Revision History

    INTVCC 4612fc Information furnished by Linear Technology Corporation is believed to be accurate and reliable. However, no responsibility is assumed for its use. Linear Technology Corporation makes no representa- For more information www.linear.com/LTM4612 tion that the interconnection of its circuits as described herein will not infringe on existing patent rights.
  • Page 28: Design Resources

    Quick videos detailing how to bench test electrical and thermal performance of µModule products. Digital Power System Management Linear Technology’s family of digital power supply management ICs are highly integrated solutions that offer essential functions, including power supply monitoring, supervision, margining and sequencing, and feature EEPROM for storing user configurations and fault logging.
