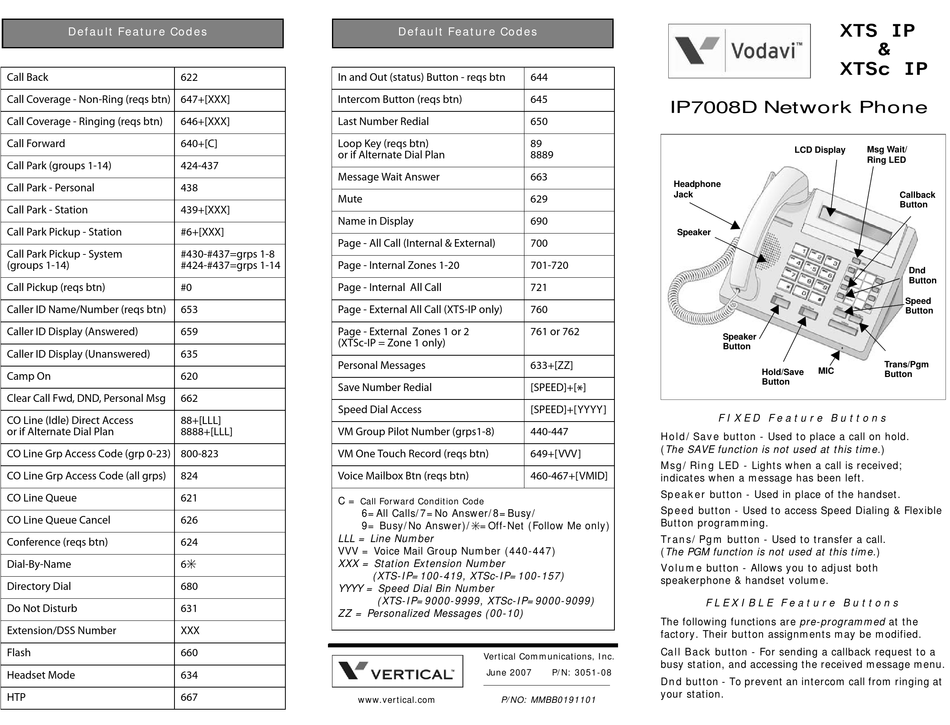

Vodavi IP7008D Quick Start Manual

Default Feature Codes
Call Back 622
Call Coverage - Non-Ring (reqs btn) 647+[XXX]
Call Coverage - Ringing (reqs btn) 646+[XXX]
Call Forward 640+[C]
Call Park (groups 1-14) 424-437
Call Park - Personal 438
Call Park - Station 439+[XXX]
Call Park Pickup - Station #6+[XXX]
Call Park Pickup - System #430-#437=grps 1-8
(groups 1-14) #424-#437=grps 1-14
Call Pickup (reqs btn) #0
Caller ID Name/Number (reqs btn) 653
Caller ID Display (Answered) 659
Caller ID Display (Unanswered) 635
Camp On 620
Clear Call Fwd, DND, Personal Msg 662
CO Line (Idle) Direct Access 88+[LLL]
or if Alternate Dial Plan 8888+[LLL]
CO Line Grp Access Code (grp 0-23) 800-823
CO Line Grp Access Code (all grps) 824
CO Line Queue 621
CO Line Queue Cancel 626
Conference (reqs btn) 624
Dial-By-Name 6
Directory Dial 680
Do Not Disturb 631
Extension/DSS Number XXX
Flash 660
Headset Mode 634
HTP 667
Default Feature Codes
In and Out (status) Button - reqs btn
Intercom Button (reqs btn)
Last Number Redial
Loop Key (reqs btn)
or if Alternate Dial Plan
Message Wait Answer
Mute
Name in Display
Page - All Call (Internal & External)
Page - Internal Zones 1-20
Page - Internal All Call
Page - External All Call (XTS-IP only)
Page - External Zones 1 or 2
(XTSc-IP = Zone 1 only)
Personal Messages
Save Number Redial
Speed Dial Access
VM Group Pilot Number (grps1-8)
VM One Touch Record (reqs btn)
Voice Mailbox Btn (reqs btn)
C =
Call Forward Condition Code
6=All Calls/7=No Answer/8=Busy/
9= Busy/No Answer)/ =Off-Net (Follow Me only)
LLL = Line Number
VVV = Voice Mail Group Number (440-447)
XXX = Station Extension Number
(XTS-IP=100-419, XTSc-IP=100-157)
YYYY = Speed Dial Bin Number
(XTS-IP=9000-9999, XTSc-IP=9000-9099)
ZZ = Personalized Messages (00-10)
Vertical Communications, Inc.
June 2007
www.vertical.com P/NO: MMBB0191101
644
645

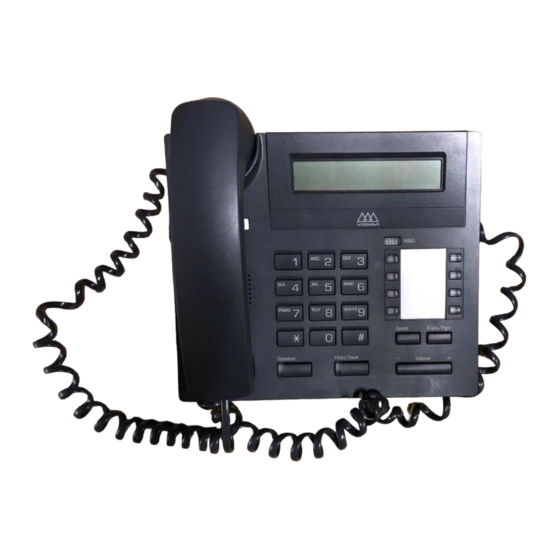

IP7008D Network Phone
650
89
8889
663
Headphone
Jack
629
690
Speaker
700
701-720
721
760
761 or 762
633+[ZZ]
[SPEED]+[ ]
*
[SPEED]+[YYYY]
440-447
Hold/Save button - Used to place a call on hold.
(The SAVE function is not used at this time.)
649+[VVV]
Msg/Ring LED - Lights when a call is received;
460-467+[VMID] indicates when a message has been left.
Speaker button - Used in place of the handset.
Speed button - Used to access Speed Dialing & Flexible
Button programming.
Trans/Pgm button - Used to transfer a call.
(The PGM function is not used at this time.)
Volume button - Allows you to adjust both
speakerphone & handset volume.
F L E X I B L E F e a t u r e B u t t o n s
The following functions are pre-programmed at the
factory. Their button assignments may be modified.
Call Back button - For sending a callback request to a
busy station, and accessing the received message menu.
P/N: 3051-08
Dnd button - To prevent an intercom call from ringing at
your station.
LCD Display Msg Wait/
Ring LED
Speaker
Button
Trans/Pgm
MIC
Hold/Save
Button
Button
F I X E D F e a t u r e B u t t o n s
Callback
Button
Dnd
Button
Speed
Button
