- Page 1 THOR Manufacturing California Proposition 7050 W. Palmetto Park Rd., Suite 15 65 Warning WARNING: This product contains chemicals Boca Raton, FL 33433 known to the State of California to cause cancer and/or reproductive harm, birth defects 1-866-955-THOR or other reproductive harm.

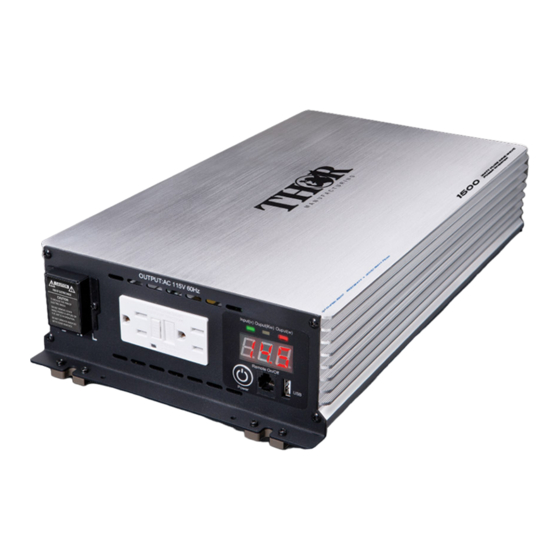

- Page 2 PROFESSIONAL GRADE ETL LISTED PURE SINE WAVE POWER INVERTER THPW 600-ETL THPW 1000-ETL THPW 1500-ETL THPW 2000-ETL THPW 3000-ETL Instruction Manual SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE. and Warranty Information Copyright © 2020 THOR Manufacturing...
- Page 3 GENERAL SAFETY WARNINGS AND INSTRUCTIONS READ ALL INSTRUCTIONS WARNING: Read all instructions before operating your inverter. Failure to follow all instructions may result in electric shock, fire and/or serious injury. • AVOID DANGEROUS ENVIRONMENTS. Don’t use inverters in damp or wet locations. •...
-
Page 4: Table Of Contents
Specifications ..................15 INTRODUCTION Thank you for purchasing this THOR Power Inverter. Please read this Instruction Manual carefully before use to ensure optimum performance and to avoid damage to this product. -
Page 5: Features
This power inverter is configured to supply continuous power in the form of 120 volt AC outlets and a USB port to run or recharge most household or electronic appliances. FEATURES The front Display, indicates power and proper operation of the inverter. This also displays inverter fault codes, if the inverter happens to shut down from over-load or over-temperature condition, or abnormal input voltages. -
Page 6: How These Inverters Work
BACK OF UNIT (ALL UNITS) THPW600 - 1500 THPW2000 - 3000 7. Negative (–) DC Power Connection 9. High-Speed Cooling Fans 8. Grounding Post 10. Positive (+) DC Power Connection HOW THESE INVERTERS WORK Your inverter converts low voltage DC (direct current) electricity from a battery to 115 volt AC (alternating current) household power in two stages. -
Page 7: Rechargeable Devices
Rechargeable Devices CAUTIONS • Some rechargeable devices are designed to be charged by plugging them directly into an AC receptacle. These devices may damage the inverter or the charging circuit. • When using a rechargeable device with your inverter, monitor its temperature for the initial ten minutes of use to determine if it produces excessive heat. -
Page 8: Protective Features
Protective Features The inverter has electronic circuit protection against overload and short circuit conditions; and monitors for the following potentially hazardous conditions: Low Battery Voltage —This condition is not harmful to the inverter, but could damage the power source. An alarm will sound when input voltage drops below 10.5 volts, and the inverter will automatically shut down when input voltage drops below 10.0 volts. -
Page 9: Permanent Installation (Cables And Fuse Not Supplied)
C. If steps A and B do not correct the problem, refer to the “Service Information” section of this Instruction Manual for assistance. Permanent Installation ( Refer to THOR inverter Install kits at www.thorpowerproducts.com For permanent installation to heavy-duty battery power you will need: • Terminals to fit cable ends and stud terminals to inverter •... -
Page 10: Important Cable Information
6. Cut another cable to connect the positive (+) battery terminal to one side of fuse holder, leaving a little slack. 7. Cut the final cable to connect the other side of fuse holder to the inverter’s positive (+) terminal. 8. -
Page 11: Connect Ac Wiring
Automatic / Manual Selector Switch and the output of the Selector Switch should be connected to the Electrical Breaker Panel / Load Center., THOR Manufacturing’s Automatic Transfer Switch Model THTS Series is recommended for this application. -
Page 12: Operating Instructions
These inverters can conduct and radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. REDUCING EMI THROUGH PROPER INSTALLATION The effects of EMI will also depend upon a number of factors external to the inverter like proximity of the inverter to the EMI receptors, types and quality of connecting wires and cables etc. -
Page 13: Operation Of The Usb Charging Port
3. The Power/Fault LED display will light green, indicating a proper connection. If the Power/Fault LED Indicator lights red, indicating a fault condition exists, refer to the “Troubleshooting” section of this Instruction Manual. 4. Plug the (110/120 volt AC) appliance into one of the Inverter’s three-prong AC outlets and operate normally. Note: Remember to disconnect the inverter from any power source when not in use. -
Page 14: Care And Maintenance
Error Protection Codes Display Indications, Common Problems, Possible Solutions / Indicacion, Causa Posible, Solucion Posible LOW DC INPUT VOLTAGE (Below 10Vdc) • Battery Voltage too low, Check or Recharge (battery) Power Source E 01 • Inadequate power being delivered to the inverter or excessive voltage drop. Use heavier gauge wire •... -
Page 15: Accessories
LIMITED ONE-YEAR HOME USE WARRANTY The limited warranty program is the only one that applies to this unit, and it sets forth all the responsibilities of THOR. There is no other warranty, other than those described herein. Any implied warranty of merchantability of fitness for a particular purpose on this unit is limited in duration to the duration of this warranty. - Page 16 Registration, Thor Manufacturing, 7050 W. Palmetto Park Rd., Suite 15, Boca Raton, FL 33433. Ce programme de garantie limitée est le seul qui s'applique à ce produit, et il a déterminé toutes les responsabilités de Thor Manufacturing concernant ce produit. Il n'y a aucune autre garantie, autre que cela qui est contenu dans la section intitulée «...
- Page 17 SPECIFICATIONS THPW600-ETL THPW1000-ETL THPW1500-ETL THPW2000-ETL THPW3000-ETL MODEL 12 VDC Nominal DC Input Voltage 10.7 - 16.5 VDC DC Input Voltage range DC Input Current AT LOAD Bolt Down Lugs Bolt Down Lugs Nut & Bolt M9 Nut & Bolt M9 Nut &...
-
Page 18: Specifications
Inverter Bypass Switch TH-IBS Basic On/ Off Remote With Bi-Color Illuminating Ring TH002 Remote with Digital Display, 1 AC outlet, 1 USB Charging Port TH-IRC Remote with Digital Display TH-IR 7.5L X 8.5W X 11.45L X 8.5W X 12.99L X 8.5W X 16.92L x 8.5W x 18.50L x 8.5W x Dimensions...
