NOTICE OF PROPRIETARY RIGHTS
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATIN. IT MAY NOT
BE REPRODUCED OR TRANSFERRED TO DOCUMENTS OR DISCLOSED TO
OTHERS OR USED FOR MANUFACTURING OR ANYOTHER PORPUSE
WITHOUT PRIOR WRITTEN PERMISSION
PREPARED BY:
Jose Illidge
DATE:
THOR MANUFACTURING, INC
5-11-2015
7050 W PALMETTO PARK RD, BOCA RATON 33433

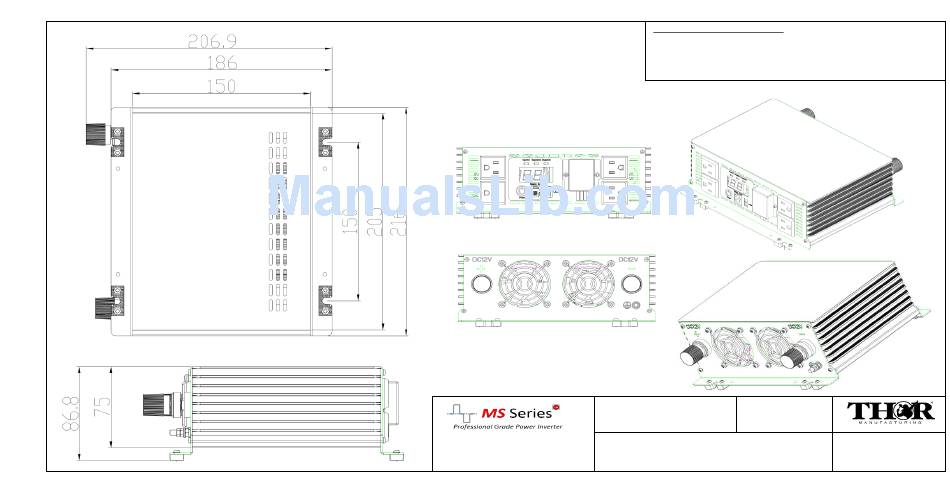

UNIT OF MEASURMENT
MM
MODEL #
THMS1000
Advertisement
Table of Contents
Related Manuals for THOR THMS-1000
Summary of Contents for THOR THMS-1000
- Page 1 BE REPRODUCED OR TRANSFERRED TO DOCUMENTS OR DISCLOSED TO OTHERS OR USED FOR MANUFACTURING OR ANYOTHER PORPUSE WITHOUT PRIOR WRITTEN PERMISSION PREPARED BY: UNIT OF MEASURMENT Jose Illidge MODEL # DATE: THOR MANUFACTURING, INC THMS1000 5-11-2015 7050 W PALMETTO PARK RD, BOCA RATON 33433...
- Page 2 Display Indications, Common Problems, Possible Solutions / Indicacion, Causa Posible, Solucion Posible LOW DC INPUT VOLTAGE (Below 10Vdc) • Battery Voltage too low, Check or Recharge (battery) Power Source • Inadequate power being delivered to the inverter or excessive voltage drop. Use heavier gauge wire E 01 •...
- Page 3 Modified Sine Wave Inverter Chart Application Operating Wattage Surge Wattage Air Compressor 3 1/4 HP 2700 8100 Water Heater 4500 5500 Clothes Dryer 1800 5000 Well Pump 2238 5595 Air Compressor 1 HP 2000 6000 Air Compressor 3/4 HP 1500 4500 Impact Drill 1/2 “...
-
Page 4: Table Of Contents
THE POWER OF THOR THMS-1000 THMS-1500 THMS-2000 THMS-3000 THMS-5000 THANLFB-100 THANLFB-150 THANLFB-200 THANLFB-300 THANLFB-400 5 feet 4Awg 5 feet 4Awg 5 feet 1/0 5 feet 1/0 5 feet 3/0 10 Feet 1/0 10 Feet 1/0 10 Feet 1/0 10 Feet2/0... - Page 5 PROFESSIONAL GRADE POWER INVERTER THMS THMS -1000 -1500 THMS THMS -2000 -3000 Instruction Manual SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE. and Warranty Information Copyright © 2015 THOR Manufacturing...
-
Page 6: Thts
GENERAL SAFETY WARNINGS AND INSTRUCTIONS READ ALL INSTRUCTIONS WARNING: Read all instructions before operating your inverter. Failure to follow all instructions may result in electric shock, fire and/or serious injury. • AVOID DANGEROUS ENVIRONMENTS. Don’t use inverters in damp or wet locations. •... -
Page 7: Thms
• DO NOT use with positive ground electrical systems.* Reverse polarity connection will result in a blown fuse and may cause permanent damage to the inverter and will void warranty. *The majority of modern automobiles, RVs and trucks are negative ground. •... -
Page 8: Introduction

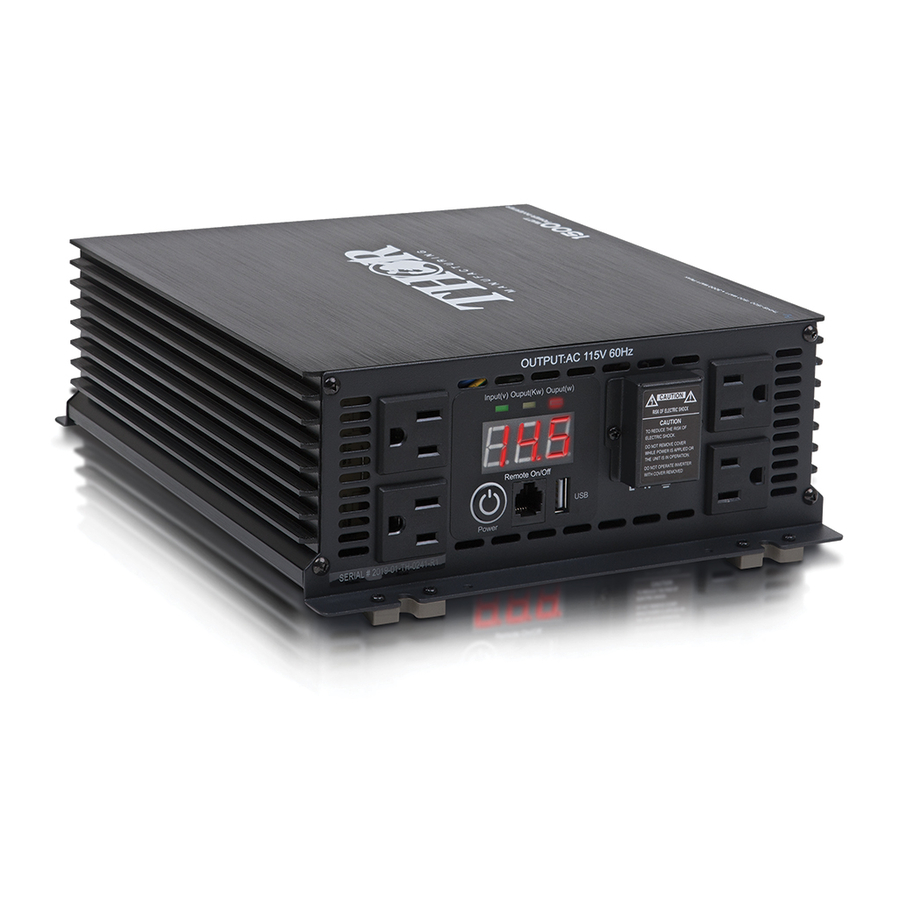

INTRODUCTION Thank you for purchasing this THOR Power Inverter. Please read this Instruction Manual carefully before use to ensure optimum performance and to avoid damage to this product. This power inverter is configured to supply continuous power in the form of 120 volt AC outlets and a USB port to run or recharge most household or electronic appliances. -
Page 9: How These Inverters Work
BACK OF UNIT (ALL UNITS) 7. Negative (–) DC Power Connection 9. High-Speed Cooling Fans 8. Grounding Post 10. Positive (+) DC Power Connection HOW THESE INVERTERS WORK Your inverter converts low voltage DC (direct current) electricity from a battery to 115 volt AC (alternating current) household power in two stages. -
Page 10: Rechargeable Devices
may not be able to start some of these motors even though their rated current draw is within specifications for this power inverter. If a motor refuses to start, observe the battery voltage using a DC voltmeter while trying to start the motor. If the battery voltmeter drops below 11 volts while the inverter is attempting to start the motor, this may be why the motor won’t start. -
Page 11: Battery Configuration
equipment can be safely tested. If an overload is detected, the inverter will simply shut down until the overload situation is corrected. CAUTIONS • Exceeding recommended voltage limits will void manufacturer’s warranty. • NEVER try to use your inverter with any 12 volt DC power source that uses a positive ground. (Most vehicles and boats use negative ground systems.) •... -
Page 12: Installation
If the Digital display, displays a fault code follow the steps outlined in the “Troubleshooting” section of this Instruction Manual. The Fault LED will light if there is an excessive voltage drop between the (battery) power source and the inverter. Note: Reverse polarity or short circuit condition may cause external or internal fuses to open and may cause irreversible damage to the Power Inverter. -
Page 13: Permanent Installation (Cables And Fuse Not Supplied)
A. Check all connections and tighten any that may be loose. B. Ensure that the source battery has adequate charge. C. If steps A and B do not correct the problem, refer to the “Service Information” section of this Instruction Manual for assistance. -
Page 14: Important Cable Information
13. Connect the stripped, soldered (longer) end of the positive (+) cable to the red stud marked (+) on the inverter and tighten the retaining nut. 14. Connect the stripped, soldered end of the negative (–) cable to the black stud marked (–) on the inverter and tighten the retaining nut. -
Page 15: Operating Instructions
OPERATING INSTRUCTIONS CAUTION: Make sure the combined load requirement of your equipment does not exceed your inverter’s maximum continuous power. Operation of the 120 Volt AC Outlets This unit features four 115 volt AC GFCI (ground fault circuit interrupter) protected outlets, that function in the same way as GFCI outlets you would typically use in your home. -
Page 16: Troubleshooting Guide
TROUBLESHOOTING GUIDE Common Audio/Visual Problems PROBLEM SOLUTION “Buzzing” sound in Inexpensive stereo systems and “boom boxes” may emit a buzzing sound from their audio systems speakers when operated from your inverter. This occurs because the power supply in the electronic device does not adequately filter the modified sine wave produced by the inverter. -
Page 17: Care And Maintenance
The limited warranty program is the only one that applies to this unit, and it sets forth all the responsibilities of THOR. There is no other warranty, other than those described herein. Any implied warranty of merchantability of fitness for a particular purpose on this unit is limited in duration to the duration of this warranty. -
Page 18: Warranty Activation
If such a product is returned more than 30 days but less than two year from the purchase date, THOR POWER PRODUCTS will repair the unit or, at its option, replace it free of charge.
