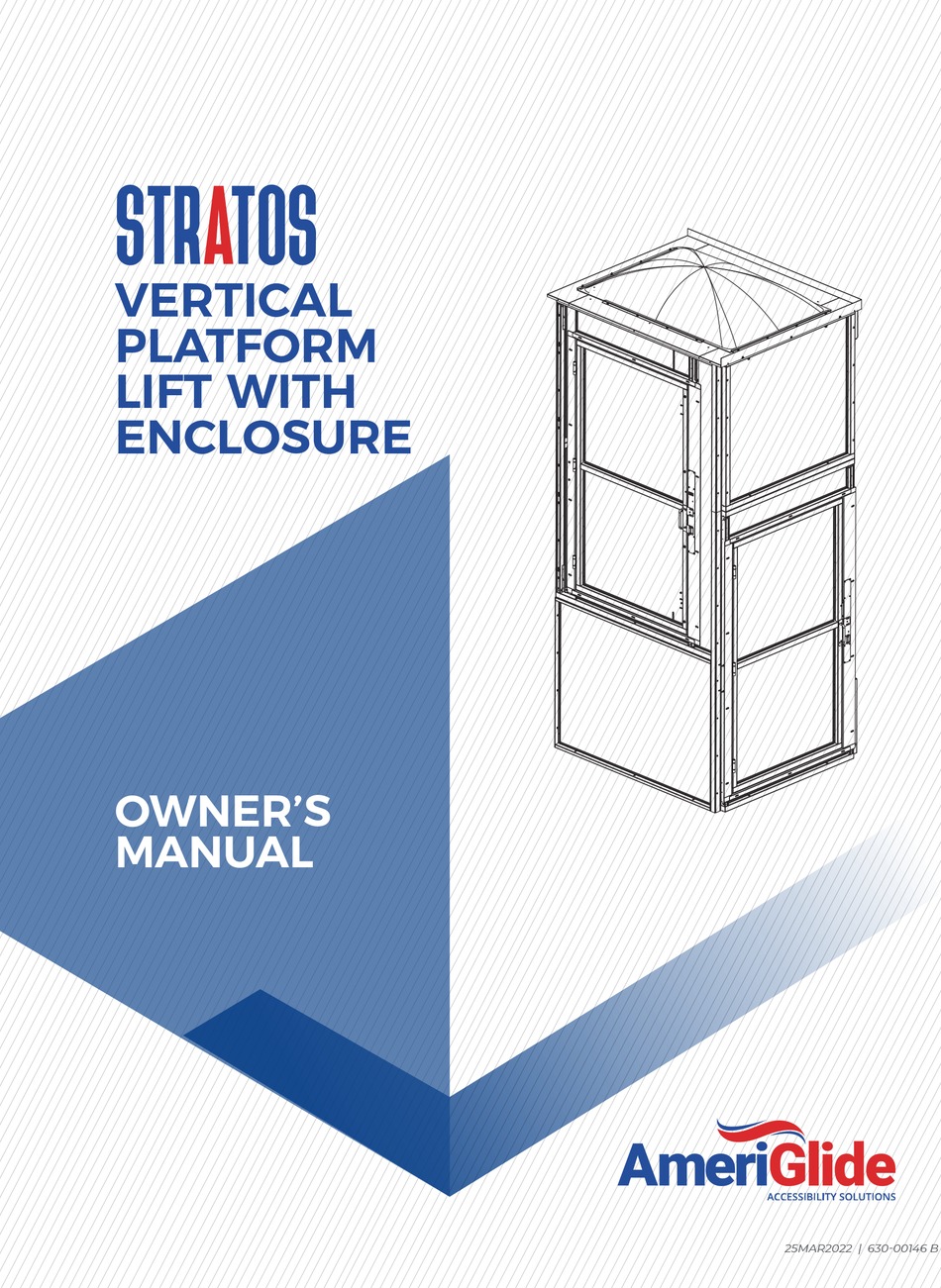

- Page 1 STRATOS VERTICAL PLATFORM LIFT WITH ENCLOSURE OWNER’S MANUAL 25MAR2022 | 630-00146 B...
- Page 2 THANK YOU From all of us at AmeriGlide, thank you for placing your trust in our products and allowing us to be a part of your journey. We strive to be the leading provider of lift assisting technology in your home and on the road.
-
Page 3: Table Of Contents
Technical Specifications ........5 Code Statement ........... 5 Key Vertical Platform Lift Elements ...... 6 OPERATION ................... 7 How the AmeriGlide Stratos Works ...... 7 Lift Operation ............7 Call/Send ............. 7 Entering the Platform ........... 7 Operating the Platform Controls ......8 Exiting the Platform .......... -
Page 4: Safety
STRATOS WITH ENCLOSURE: SECTION 1 SAFETY SECTION 1 SAFETY SAFETY DEFINITIONS SPECIAL CAUTIONS This safety alert symbol appears with Pay attention to the following Special safety statements. It means attention, Cautions while operating your vertical become alert, your safety and the platform lift. -
Page 5: Introduction
Visit ameriglide.com for specifications on your lift PLATFORM LIFT model. CODE STATEMENT Indications of Use: The Stratos with Enclosure Platform Lift is to assist the transfer of patients or mobility impaired persons and their mobility device, Your lift has been designed to meet ASME A18.1 up and down levels of a commercial facility or “Safety Standard for Platform Lifts and Stairway... -
Page 6: Key Vertical Platform Lift Elements
STRATOS WITH ENCLOSURE: SECTION 2 INTRODUCTION KEY VERTICAL PLATFORM LIFT ELEMENTS Dome (option) Lift Status Indicator Lights Bottom Door Frame Platform Top Landing Door (if specified) Ventilation System (option) Platform Controls Fixed Ramp 10. Panel (plexiglass shown) STRATOS WITH ENCLOSURE: Owner’s Manual... -
Page 7: Operation
If the platform is not at your desired landing, you will need to “call” or “send” for it. A Call/ The AmeriGlide Stratos Vertical Platform Lift is AC Send Control is located at the landing or in the powered via 115V AC, 15A, single phase, 60Hz. It is gate frame. -
Page 8: Operating The Platform Controls
STRATOS WITH ENCLOSURE: SECTION 3 OPERATION OPERATING THE control will have three (3) buttons instead of the paddle. You may want to hold the hand rail (required PLATFORM CONTROLS on Commercial Lifts) while the lift is in motion. CAUTION Once you are on the platform, locate the Platform Controls on the side panel. -
Page 9: Recommendations
Contact dealer and/or 911 (dealers phone number is written on the label next to the cab controls). The Stratos is supplied with manual lowering tools that are located beneath the metal cover with • Push in the Red Emergency Stop button on the removable front cover. - Page 10 Manual crescent key can be used to release it. Override WARNING Wait for a AmeriGlide dealer to service and inspect the lift prior to using it again. Figure 3-4 Use the provided 1/4" socket with a 3/8" ratchet or a cordless drill. Power the drill in the forward direction - rotating clockwise to lower the platform.
-
Page 11: Troubleshooting
4-LEDs. LEDs are numbered from left to right, while facing the tower from the platform side. Color listed in brackets indicates LED is flashing. Figure 4-1 See Figure 4-1. Refer all other Status Codes to your AmeriGlide NOTE: [COLOR] means flashing light. dealer. Status LED Status... - Page 12 STRATOS WITH ENCLOSURE: SECTION 4 TROUBLESHOOTING Status LED Status Lift is on AC power and battery is Very Low. If lift [Amber] [Amber] [Amber] transfers to backup power platform will only go down. Service is Required*. Minor Fault. Platform function is reduced. Service may Any [Amber] be Required.
-
Page 13: Care
STRATOS WITH ENCLOSURE: SECTION 5 CARE SECTION 5 CARE To maximize longevity and appearance of your lift, AmeriGlide recommends the following procedures: • Keep the VPL platform free of debris. Sweeping to clear these areas regularly to prevent debris accumulation is required. Wiping with a damp cloth should be enough for additional surface cleaning. -
Page 14: Maintenance & Inspection
STRATOS WITH ENCLOSURE: SECTION 6 MAINTENANCE SECTION 6 MAINTENANCE & INSPECTION Except as described elsewhere in this manual, • Check that there is no loose hardware or maintenance must be performed only by qualified emerging cracks/deformations in the platform technicians. Contact your dealer with questions and tower. -
Page 15: Commercial Application
STRATOS WITH ENCLOSURE: SECTION 6 MAINTENANCE COMMERCIAL APPLICATION • Check for any rust that may be developing. Rust is expected in outdoor applications END-USER/MAINTENANCE (especially in coastal areas), but with proactive maintenance or quick repair, this can be minimized. AmeriGlide recommends... -
Page 16: Service Mode
“Out of Service Mode”. This is indicated on the status indicator as any flashing red light. This cannot be corrected by a power cycle. Call your AmeriGlide dealer immediately. STRATOS WITH ENCLOSURE: Owner’s Manual... -
Page 17: Maintenance/Service Record
STRATOS WITH ENCLOSURE: SECTION 6 MAINTENANCE MAINTENANCE/SERVICE RECORD ASME 18.1-2017 requires that a log is kept of all service and maintenance performed on this lift in commercial applications. This includes a record of all accidents and a weekly operational check. Refer to “Install and Service Manual”... -
Page 18: Warranty
VPL400, VPL600, VPL800, VPL1000, VPL1200, VPL1400 SERIES MODELS WITH ENCLOSURE Your lift came with a separate warranty page on Ameriglide warrants, to the original purchaser of a page 19. You must return this page within ten Stratos with Enclosure Vertical Platform Lift (VPL), (10) days of installation to register your lift. - Page 19 WARRANTY PLEASE FILL OUT ALL FIELDS AND RETURN WITHIN TEN (10) DAYS OF PRODUCT INSTALLATION. Fax completed form to 1-866-234-5680 or mail to: AmeriGlide, ATTN Warranty Department, 1500 Independence Blvd., Suite 220, Sarasota Florida 34234. PRODUCT INFORMATION PURCHASER INFORMATION Model:...
- Page 20 STRATOS WITH ENCLOSURE: SECTION 7 WARRANTY Page Intentionally Left Blank STRATOS WITH ENCLOSURE: Owner’s Manual 25MAR2022 | 630-00146 B...
- Page 21 NOTES STRATOS WITH ENCLOSURE: Owner’s Manual 25MAR2022 | 630-00146 B...
- Page 22 NOTES STRATOS WITH ENCLOSURE: Owner’s Manual 25MAR2022 | 630-00146 B...
- Page 23 NOTES STRATOS WITH ENCLOSURE: Owner’s Manual 25MAR2022 | 630-00146 B...
- Page 24 866.378.6648 | ameriglide.com...
