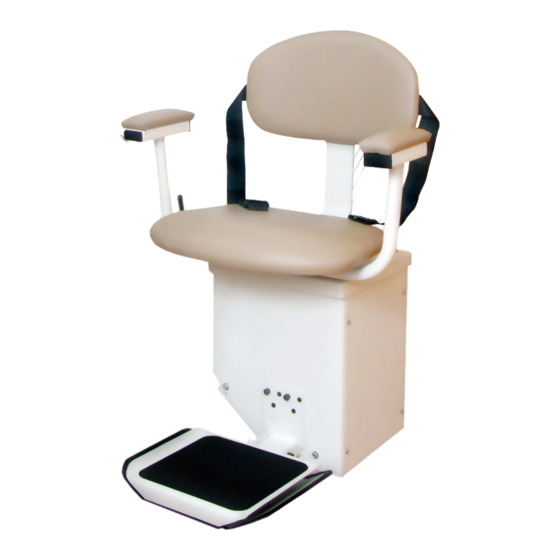

RUBEX
WARNING! STRICT ADHERENCE TO THESE INSTALLATION INSTUCTIONS is required and will promote safety of those installing this
product, as well as those who will ultimately use the lift for its intended purpose. Any deviation from these instructions will void the
LIMITED WARRANTY that accompanies the product. Additionally, any party installing the product who deviates from the INSTALLATION
INSTRUCTIONS shall be taken to agree to INDEMNIFY, SAVE AND HOLD HARMLESS the manufacturer from any and all loss, liability or
damage including attorney fees, that might arise out of or in connection with such deviation.
11819
P/N: 16169 Rev D
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AmeriGlide RUBEX
Summary of Contents for AmeriGlide RUBEX
- Page 1 Installation Manual RUBEX WARNING! STRICT ADHERENCE TO THESE INSTALLATION INSTUCTIONS is required and will promote safety of those installing this product, as well as those who will ultimately use the lift for its intended purpose. Any deviation from these instructions will void the LIMITED WARRANTY that accompanies the product.
- Page 2 Indications for Use: Indications for Use: The Rubex Stair Lift is a transport system, also commonly known as a stairway chairlift, or The Rubex Stair Lift is a transport system, also commonly known as a stairway chairlift, or stairlift. It is a motorized device intended to assist transfers of a single mobility impaired person stairlift.
-
Page 3: Table Of Contents
Installing the Lower Limit CAM _________________________ 12 Installing the Seat _____________________________________ 13 Installing the Upper Limit CAM _________________________ 14 Installing the Call Controls _____________________________ 14 Completing Track Installation __________________________ 15 Final Checks ___________________________________________ 15 Rubex Stair Lift Install Manual | www.Ameriglide.com | 866-378-6648 3 //... -
Page 4: Before You Start
Limitation of Angle. No lift shall be installed to operate on a great-er incline than 45° as measured on the mean. Applicable to stair lifts installed in locations other than in or at a private residence. Rubex Stair Lift Install Manual | www.Ameriglide.com | 866-378-6648 4 //... -
Page 5: Required Tools
Step 2: Check each box for any possible shipping damage. Caution Use a dolly or get assistance in carrying the chassis box to avoid injury. Note The chassis is shipped attached to the top 2' of track. Rubex Stair Lift Install Manual | www.Ameriglide.com | 866-378-6648 5 //... -
Page 6: Installing The Lower Tracks
Step 4: Identify the bottom track section. It will have a metal end plate at one end. Lay the lower track section on the steps as shown in the picture above. Rubex Stair Lift Install Manual | www.Ameriglide.com | 866-378-6648 6 //... - Page 7 Tighten the splice bar set screws to lock tracks together. Caution: Do not put your fingers between the track sections at any time as injury could occur. Rubex Stair Lift Install Manual | www.Ameriglide.com | 866-378-6648 7 //...
- Page 8 Final track adjustment should occur after the unit is installed. The track should still move vertically in the bracket slots for final adjustment. Rubex Stair Lift Install Manual | www.Ameriglide.com | 866-378-6648 8 //...
-
Page 9: Routing The Lower Call Control Wire
Completely remove Make sure the packing bracket is removed the packing bracket. and discarded before attempting to operate the lift. Rubex Stair Lift Install Manual | www.Ameriglide.com | 866-378-6648 Rave Stair Lift Manual | www.Ameriglide.com | 866-378-6648 9 //... -
Page 10: Slack Cable Reset Procedure
This will slowly inch the unit up the track. If you see the lift begin to move uphill or hear a click, that will tell you that the slack cable has reset. Rubex Stair Lift Install Manual | www.Ameriglide.com | 866-378-6648 10 //... -
Page 11: Installing Plastic Chain And Traveling Power Cable
Two holes are provided in the mounting bracket in the event that one of the holes would happen to be directly over a splice between two pieces of track. Rubex Stair Lift Install Manual | www.Ameriglide.com | 866-378-6648 11 //... -
Page 12: Installing The Power Cord
NOTE: Before the upper limit cam can be moved to its proper position, the seat will have to be attached to the unit chassis. Rubex Stair Lift Install Manual | www.Ameriglide.com | 866-378-6648 12 //... -
Page 13: Installing The Seat
The unit is designed so it will not run unless the seat is facing forward and the swivel lock is in place. Rubex Stair Lift Install Manual | www.Ameriglide.com | 866-378-6648 13 //... -
Page 14: Installing The Upper Limit Cam
Upper call control box or placed on the wall and operated by hand. Run the unit down to a few inches past the lowest track splice. Lower call control box Rubex Stair Lift Install Manual | www.Ameriglide.com | 866-378-6648 14 //... -
Page 15: Completing Track Installation
STEP 2: Test unit controls located on the chair arm - run unit a short distance down and up. STEP 3: Test operation of upper and lower call controls. STEP 4: Check footrest safety. Rubex Stair Lift Install Manual | www.Ameriglide.com | 866-378-6648 15 //... - Page 16 11819 P/N: 16169 Rev D...
