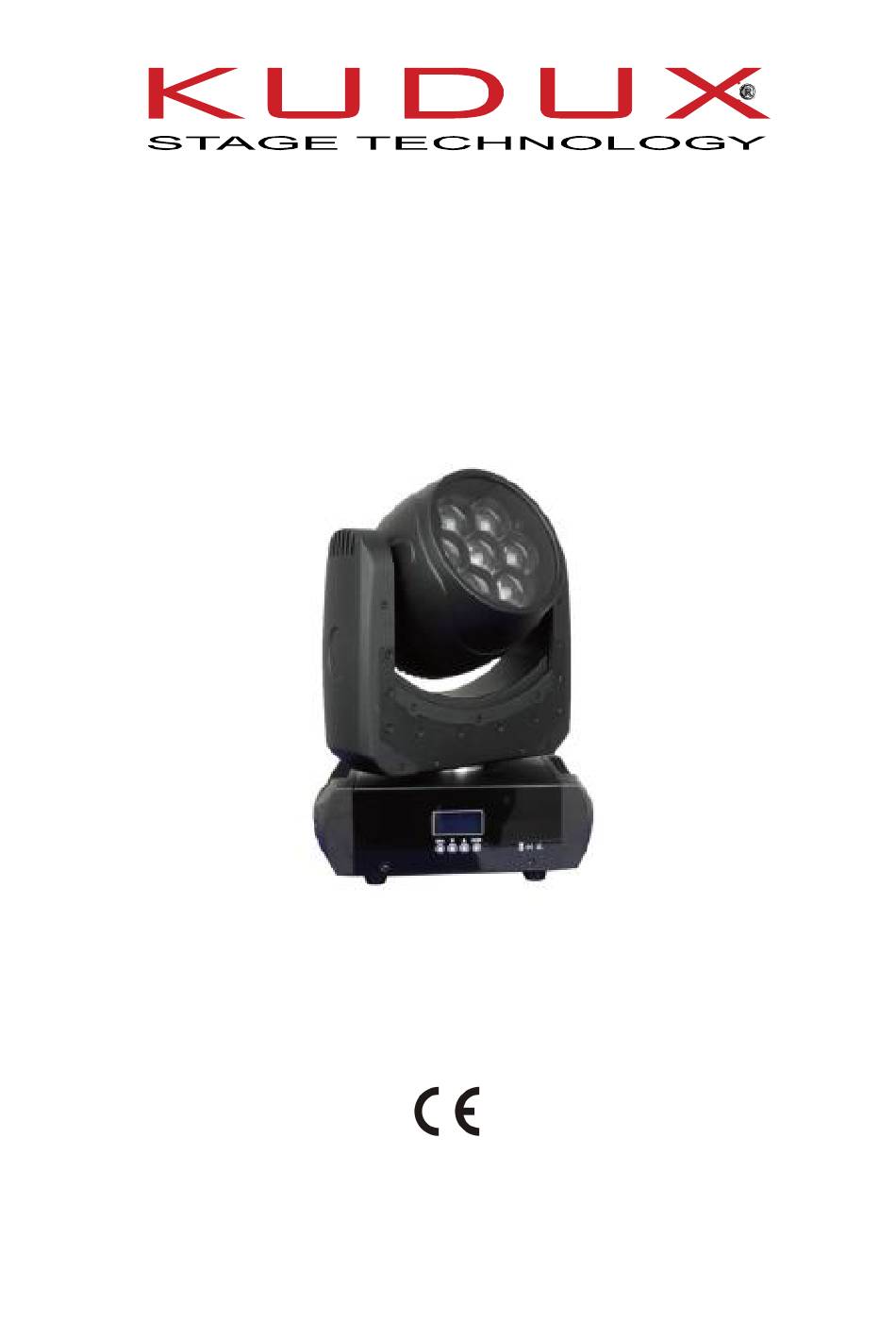

- Page 1 PIXEL ZOOM 105 WASH LED User manual Please read the manual before installing and using this lighting Keep it for future reference...
- Page 2 If you have any remarks or comments, please share them with us. We will be grateful for any suggestions that will help us make products that are even better and devices that satisfy your needs. R&D Team WWW.KUDUX.COM...
-
Page 3: Table Of Contents
Luminous diagram ......................5 Safety information ......................6 Package ..........................7 Install standard ........................7 Power supply ........................8 Control panel menu operate ..................... 9 DMX Channels ......................... 11 Clear and maintenance ....................14 Specification ........................ 14 Contact: ........................15 WWW.KUDUX.COM... -
Page 4: Statement
Intelligent LED display module, the English language selection mode, intuitive operating menu, shortcut. 1. Part introduction 01 —body 02 —arm 03 —lens 04 —handle 05 —base bottom WWW.KUDUX.COM... -
Page 5: Fixture Size
2. Fixture size 3. Luminous diagram WWW.KUDUX.COM... -
Page 6: Safety Information
The equipment must be installed away from inflammable and explosive materials. • The highest temperature is 40 ° C when the equipment is in stable state. • The equipment cannot have an obstacle at least in the range of 0.5 meters. • Do not replace the non-original parts. WWW.KUDUX.COM... -
Page 7: Package
Two fast locks system could fix the item easily. 6.2. Equipment fixed • Before installation must verify the fast lock is keep in good state and can withstand at least 10 times the weight of product. Verify that the building can withstand at least 10 times of WWW.KUDUX.COM... -
Page 8: Power Supply
Do as above guide to connect other device, and finally coupled with terminal insertion as following: Power supply 7.1. Voltage, power, fuse specification Total Power Frequency Input Voltage 110~240V 180 W 50/60HZ WWW.KUDUX.COM... -
Page 9: Control Panel Menu Operate
2Min The menu returns in 2 minute 3Min The menu returns in 3 minute Closing backlight flashing LigtFlh open backlight flashing Cree led L Brand Cree led Tool WhiteSW White balance switch Balance Red (50—255) The white balance red WWW.KUDUX.COM... - Page 10 Effects of fading ShapeR Effect of red ShapeG Effect of green ShapeB Effect of blue ShapeW Effect of white ShapeD Effect of dimming BlackD Effect of backlight Reserv reserved RunTime 0000-9999 Lamp service time Info DisVers Vx.xx Version of display software WWW.KUDUX.COM...
-
Page 11: Dmx Channels
0~540 degree Pan Fine 0 -255 Pan Fine Tilt Rotation 0 -255 0~270 degree Tilt Fine 0 -255 Tilt Fine 0 -9 No function 10 -14 Whole light Reset Function set 15 -39 No function 40 -44 XY Normal mode WWW.KUDUX.COM... - Page 12 125-129 JAS Green 130-134 Lime Green 135-139 Spring Yellow 140-144 Deep Amber 145-149 Chrome Orange 150-154 Orange 155-159 Gold Amber 160-164 Millennium Gold 165-169 Deep Golden Amber 170-174 Flame Red 115-179 180-201 Color clockwise run from fast to slow WWW.KUDUX.COM...
- Page 13 Gobo anticlockwise run from slow to fast 0 -4 No function 5 -19 LED built-in effect1 20 -39 LED built-in effect2 40 -59 LED built-in effect3 Built-in effects 60 -79 LED built-in effect4 … … 150-169 LED built-in effect7 160-179 LED built-in effect8 WWW.KUDUX.COM...
-
Page 14: Clear And Maintenance
2. Using vacuum or pressure blows gently blow any dust and floating structures. 11. Specification • Channels mode 10/14 CH • Lamp: 7*15W RGBW 4in1 LED TIANXIN • Power: 110-240V,50/60Hz • Total power: 180W • Display: LCD screen display, can reverse 180° • Lens: French lens, 8 degree WWW.KUDUX.COM... -
Page 15: Contact
Can make the clear spot when beam angel in7.9 degree, wash effect when in big angle 12. Contact: website Please check who is our dealer in your country at our www.kudux.com or write direct to us by email: office@kudux.com WWW.KUDUX.COM...
