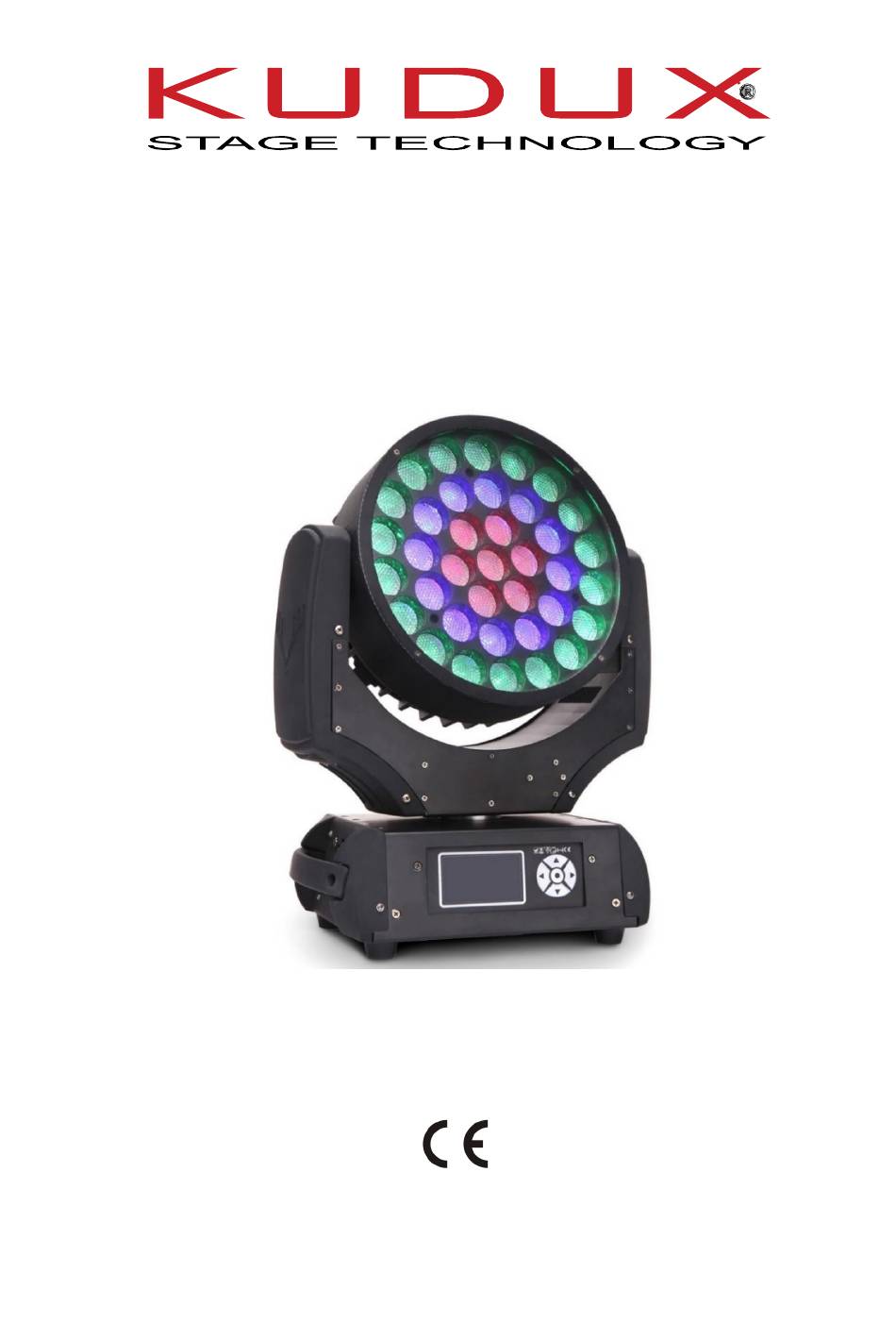

- Page 1 Moving Head WASH 600 ZOOM 37X10W RGBW User manual Please read the manual before installing and using this lighting Keep it for future reference...
- Page 2 If you have any remarks or comments, please share them with us. We will be grateful for any suggestions that will help us make products that are even better and devices that satisfy your needs. R&D Team WWW.KUDUX.COM...
-
Page 3: Table Of Contents
Rigging the fxture ......................8 3.4. DMX-512 connection ....................10 WASH 600 ZOOM - DMX chart ..................11 Technical Specifications ....................14 Maintenance and cleaning ....................38 6.1. Replacing fuse ......................39 Change Log ........................39 Photometric diagrams ..................... 40 Contact ..........................41 WWW.KUDUX.COM... -
Page 4: Statement
LED light emission. Risk of eye injury. Do not consider the beam at less than 1 meter from the front surface of the product. Do not view the light output with optical instruments or any device that may concentrate the beam WWW.KUDUX.COM... - Page 5 If this device will be operated in any way different to the one described in this manual, the product may suffer damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short- circuit, burns, electric shock, crash etc. WWW.KUDUX.COM...
-
Page 6: Fixture Exterior View
4 - Control buttons 5 - Base 6 - Head cover 7 - Fan 8 - Yoke 9 - 3-pin DMX OUT 10 - 3-pin DMX IN 11 - 5-pin DMX OUT 12 - 5-pin DMX IN 13 - POWER IN WWW.KUDUX.COM... -
Page 7: Installation
4. Put the transparent eggcrate on the zoom module (6) and screw it with three screws (4) with washers to the zoom module (6). 5. Place the transparent cover (3) and the top flange (2) back to the head and secure it with four screws (1). WWW.KUDUX.COM... -
Page 8: Rigging The Fxture
Make sure that the device is fixed properly! Ensure that the structure (truss) to which you are attaching the fixtures is secure. The fixture can be placed directly on the stage floor or rigged on a truss without altering its operation characteristics. WWW.KUDUX.COM... - Page 9 2-Omega holder 3-Clamp 4-Trust 5-Safety chain The fixture can be also rigged by means of the mounting adapter (option) for one Omega holder: In this case the fixture can hang on the truss in horizontal position only, not sideways. WWW.KUDUX.COM...
-
Page 10: Dmx-512 Connection
Caution: At the last fixture, the DMX-cable must be terminated with a terminator. Solder a 120 Ω resistor between Signal (–) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX- output of the last fixture WWW.KUDUX.COM... -
Page 11: Wash 600 Zoom - Dmx Chart
Green (8 bit) - zone 1 0-255 proportional Green LEDs saturation control (0-100%) Green fine ( 16 bit) - zone 1 0-255 proportional Fine green LEDs saturation control Blue (8 bit) zone 1 0-255 proportional Blue LEDs saturation control (0-100%) WWW.KUDUX.COM... - Page 12 White (8 bit) zone 3 0-255 proportional White LEDs saturation control (0-100%) White fine ( 16 bit) zone 3 0-255 proportional Fine white LEDs saturation control ( Mode/Channel Value Funct Type of control 31 15 11 No function step 1-255 WWW.KUDUX.COM...
- Page 13 Random strobe effect from slow--> fast (random effect 5 zone) Random strobe effect from slow--> fast Zone 192-223 proportional (random zone + random strobe) effect 6 224-255 step Random strobe effect from slow --> fast (All zones together) Shutter open WWW.KUDUX.COM...
-
Page 14: Technical Specifications
Remotely controllable speed of pan/tilt movement for easy programming Movement control: tracking and vector Pan movement 0° - 450° at max. speed: 2.1 sec. (3.4 sec. - Theatre mode) Tilt movement 0° - 300° at max. speed:1.1 sec. (2.5 sec. - Theatre mode WWW.KUDUX.COM... - Page 15 Temperatures Maximum ambient temperature: 45° C Maximum housing temperature: 75° C Minimum distances Min. distance from flammable surfaces: 0.5 m Min. distance to lighted object: 1.0 m Total heat dissipation 1330 BTU/h (calculated) Weight (net): 10.6 kg Dimensions (mm) WWW.KUDUX.COM...
-
Page 16: Maintenance And Cleaning
The cooling fans should be cleaned monthly. The interior of the base should be cleaned at least annually using a vacuum-cleaner or an air-jet. More complicated maintenance and service operations are only to be carried out by authorized distributors. WWW.KUDUX.COM... -
Page 17: Replacing Fuse
DMX Input New description of the wireless operation 2/2/2011 Silent mode of fans added to menu Personality DMX chart v. 1.5: Silent mode of fans added on Power channel (241-255 DMX) 13/3/2011 LED zone short errors added to error messages WWW.KUDUX.COM... -
Page 18: Photometric Diagrams
8. Photometric diagrams WWW.KUDUX.COM... -
Page 19: Contact
9. Contact website Please check who is our dealer in your country at our www.kudux.com or write direct to us by email: office@kudux.com WWW.KUDUX.COM...
