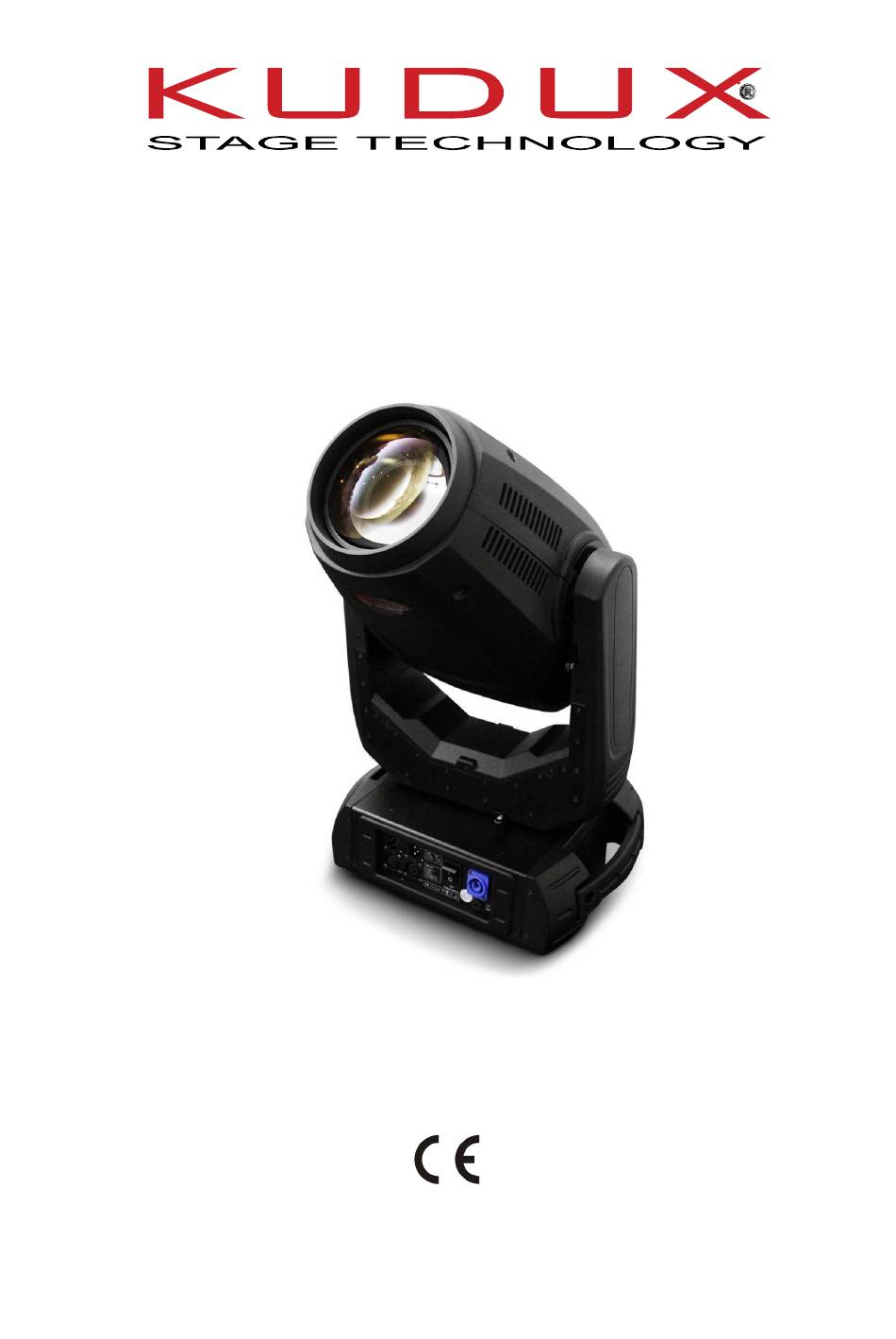

- Page 1 Moving Head Hot Beam 10R User manual Please read the manual before installing and using this lighting Keep it for future reference...
- Page 2 If you have any remarks or comments, please share them with us. We will be grateful for any suggestions that will help us make products that are even better and devices that satisfy your needs. R&D Team WWW.KUDUX.COM...
-
Page 3: Table Of Contents
Cable connection（DMX） ................... 5 1.6. Rigging (Optional) ......................5 Panel operation ......................... 6 2.1. Brief ..........................6 2.2. Operation........................7 2.3. Boolean parameter setting .................... 7 2.4. Operation and parameter instruction ................8 Channel description ......................11 Contact: ........................... 15 WWW.KUDUX.COM... -
Page 4: Installation And Attention
Rotation eight prism, effect move , frost 0-100% mechanical dimming, mechanical dimming and free dimming available. strobe macro control available. Lens optical system achanical fouce .beam angle 0～4° Over heat protection Power Input: 100-240V，50/60Hz WWW.KUDUX.COM... -
Page 5: Cable Connection（Dmx
Install on safety string which stands at least ten times weight as equipment. Terminal of the accessory is designed for clamps. Make sure pan/tilt lock unlocked or not. Keep the distance more than 1M from equipment to flammable material or lighting source. WWW.KUDUX.COM... -
Page 6: Panel Operation
Display & operation just like ‘Android operation system’, touch the item will set or modify setting. Note: Prevent damage the touch or TFT displayer, Can not use sharp objects chick displayer. Figure 3 Panel diagram WWW.KUDUX.COM... -
Page 7: Operation
When the parameter is a key item, chick corresponding item, a dialog shown in Figure 5 will been popup ask for the confirm. Chick ‘sure’ to confirm. Figure 5 Dialog of confirm WWW.KUDUX.COM... -
Page 8: Operation And Parameter Instruction
Enter the page of DMX address, as shown in Figure 7, click the blank area in right side of display will pop-up diglog as in Fig. 4, modify value, then click ‘ENTER’ to confirm and save DMX address code. Figure 7 page of DMX Address WWW.KUDUX.COM... - Page 9 SOUND CTRL). As ‘OFF’, keep light up displayer and show main menu。 Screen Rotation：rotate displayer. Touch enable： Disable or enable touch function, when disable, use encoder to operate light and set parameter. Touch adjust：adjust touch function, normally, not enter this item. Figure 9 page of display WWW.KUDUX.COM...
- Page 10 Pan Offset: Set PAN original position. Tilt Offset: Set TILT original position. Lamp up when: Select lamp on mode, includes 3 mode: power on, after reset done and manual； Factory setting: restore all parameter to factory setting. Figure 11 page of run parameter WWW.KUDUX.COM...
-
Page 11: Channel Description
Reset Pan/Tilt（Over 3 seconds） Reset 140~149 150~189 Reset Effect motor (Over 3 seconds) Lamp 200~209 Reset All (Over 3 seconds) 210~229 none 230~239 Lamp Off (Over 3 seconds) 240~255 none Linear color select White（100%~10%） Color1（100%~10%） 9~17 Color 2（100%~10%） 18~26 Color 3（100%~10%） 27~36 WWW.KUDUX.COM... - Page 12 Speed of Rotating gobo, fast to slow Speed Beam(Hole) Gobo 1 10~15 Gobo 2 16~21 Gobo 3 22~27 Gobo 4 28~33 Gobo 5 34~39 Gobo 6 40~45 Gobo 7 46~51 Gobo 8 52~57 Gobo 9 58~63 Gobo 10 64~69 Gobo 11 WWW.KUDUX.COM...
- Page 13 23~25 Gobo 7 26~28 Gobo 8 29~31 Gobo 9 Rot. Gobo rotation 32~34 Gobo 1 35~37 Gobo 2 38~40 Gobo 3 41~43 Gobo 4 Rotating 44~46 Gobo 5 Gobo Wheel 47~49 Gobo 6 Gobo 7 50~52 Gobo 8 53~55 WWW.KUDUX.COM...
- Page 14 ---- 0~19 Open position (hole) 20~49 6-facet linear rotating prism -indexing 50~75 6-facet linear rotating prism- rotation 76~105 8-facet circular rotating prism- Indexing 106~127 8-facet circular rotating prism-rotation Prism/Gobo macro 128~135 Macro 1 136~143 Macro 2 144~151 Macro 3 WWW.KUDUX.COM...
-
Page 15: Contact
Shutter open 224~255 Random strobe-effect from slow to fast 0~255 Dimmer intensity from 0% to 100% Dimmer 1. Contact: website Please check who is our dealer in your country at our www.kudux.com or write direct to us by email: office@kudux.com WWW.KUDUX.COM...
