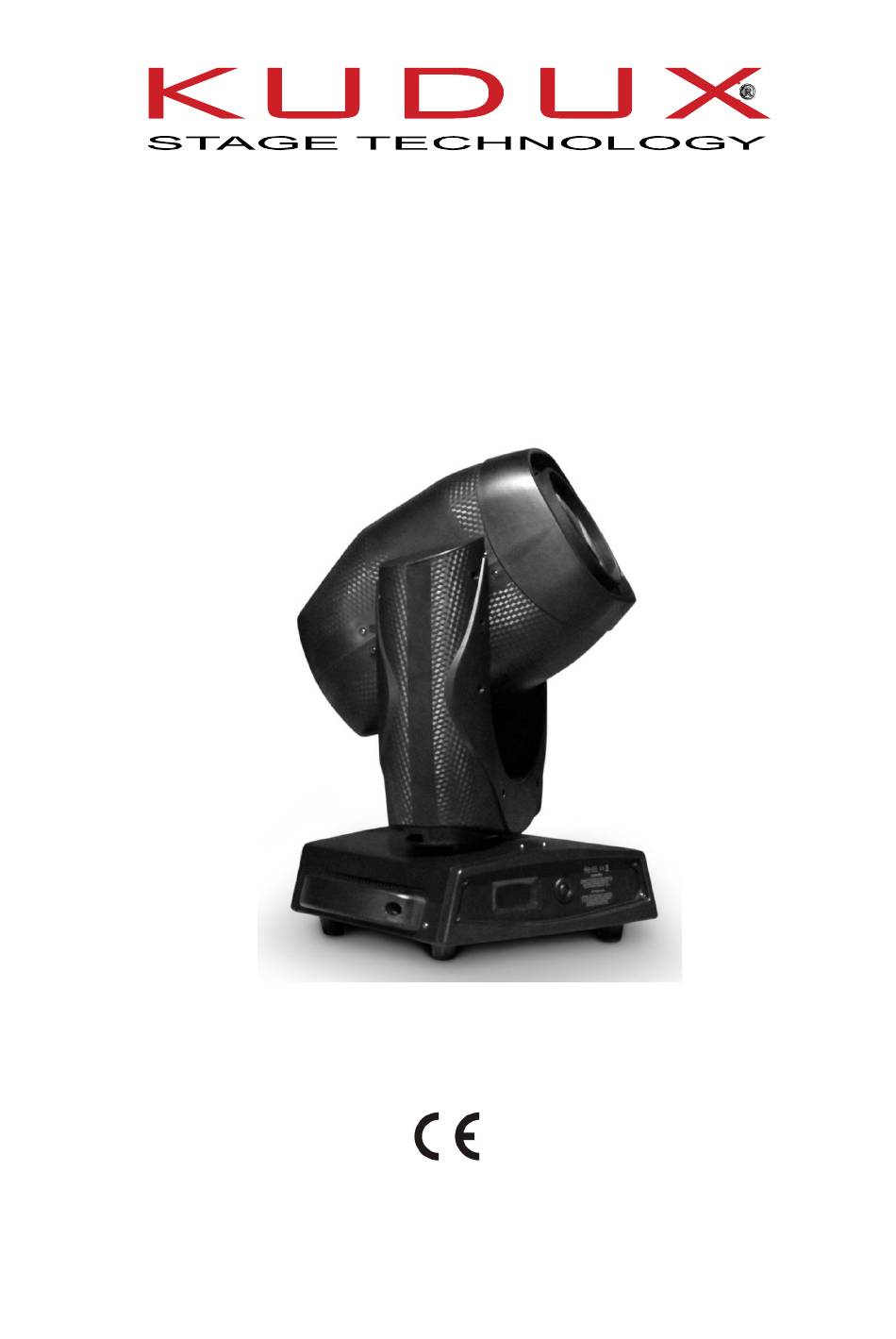

- Page 1 Moving Head Hot Mix 15R User manual Please read the manual before installing and using this lighting Keep it for future reference...
- Page 2 If you have any remarks or comments, please share them with us. We will be grateful for any suggestions that will help us make products that are even better and devices that satisfy your needs. R&D Team WWW.KUDUX.COM...
-
Page 3: Table Of Contents
Statement ..........................4 Product description ........................4 Safety information ......................4 Package ..........................5 Install standard ........................6 Power supply ........................7 Lamp ..........................8 Display menu ........................8 DMX Channels ........................9 Technical parameters: ..................... 16 Contact: ........................... 16 WWW.KUDUX.COM... -
Page 4: Statement
Product description Thank you for choosing this HOT MIX 15R products, this model is the moving head light which is the latest development of the smart, efficient products, beautiful shape, smooth R & D, combined... -
Page 5: Package
Handling at least allow the device to cool for 20 minutes. • Do not replace the non-original parts. Package 2.1. Attachment HOT MIX 15R packed with fly-case of one in one, two in one, or carton box. Attach follow accessory. CONTENT QUANTITY USER MANUL 1 piece WWW.KUDUX.COM... -
Page 6: Install Standard
Before power on, make sure you have opened the X, Y axis lock! Install standard 3.1. Install lock HOT MIX 15R can be placed on the stage, or mounted in an arbitrary direction of the truss. Two fast locks system could fix the item easily. 3.2. Equipment fixed •... -
Page 7: Power Supply
3.3. Fixture connect Attention! One product only can accept one input one output. HOT MIX 15R DMX cable include 3 contact pins: Pin 1, FOR GROUND; Pin 2 connected to the negative polarity signal; The pin 3 connected to the positive polarity signal. -
Page 8: Lamp
MAGENTA COLOUR WHEEL YELLOW COLOUR WHEEL YELLOW COLOUR WHEEL COLOUR 1 COLOUR 1 COLOUR 2 COLOUR 2 COLOUR 3 COLOUR 3 STOPPER / STROBE STOPPER / STROBE DIMMER DIMMER DIMMER FINE DIMMER FINE STATIC GOBO CHANGE STATIC GOBO CHANGE WWW.KUDUX.COM... -
Page 9: Dmx Channels
Linear Yellow movement 0 - 255 COLOUR 1 Empty position Empty + Soft Filter Soft Filter Soft Filter + Lavender Lavender Lavender + CTO 3200K CTO 3200K CTO 3200K + CTO 2500K CTO 2500K CTO 2500K + Blue Wood (UV Filter) WWW.KUDUX.COM... - Page 10 0 - 255 Dimmer blades move from totally closed to totally open in 0.02 seconds at maximum speed. DIMMER FINE 0 - 255 Fine Dimmer positioning STATIC GOBO CHANGE Empty position Gobo 1 Gobo 2 Gobo 3 WWW.KUDUX.COM...
- Page 11 (120 rpm) to slow (4.4 rph) 125 - 130 Stop rotation 131 - 255 Continuous animation disk CCW rotation at linearly variable spee from slow (4.4 rph) to fast (120 rpm) ROTATING GOBO SELECT Empty position 0 - 18 WWW.KUDUX.COM...
- Page 12 Continuous gobo rotation CW at linearly variable speed from slo 193 - 255 (2.2 rpm) to fast (180 rpm) ROTATING GOBO effect disabled if BEAM MODE is working FINE GOBO ROTATION 0 - 255 Fine Gobo Indexing CW PRISM INSERTION Prism out 0 - 10 WWW.KUDUX.COM...
- Page 13 FOCUS FINE 0 - 255 Fine Focus positioning BEAM MODE 0 - 127 Zoom / Autofocus mode 128 - 255 Beam Mode ROTATING and CHANGE GOBO / PRISM / ZOOM effects disabled i BEAM MODE is working WWW.KUDUX.COM...
- Page 14 76 – 105 Zoom IN OUT 106 – 135 Standby Black 1 136 – 165 Zoom IN Faded Random 166 – 195 Zoom OUT Faded Random 196 – 225 Zoom IN OUT Random 226 - 255 Standby Black 2 WWW.KUDUX.COM...
- Page 15 When your performances over, please use your console to turn off the lamp first (DMX level = 0 bit.). let the fan keep working to cooling down around 5 minutes, then cut off the power.This action could be helpful to extend the lifetime of lamps. VECTOR MODE TIME TABLE WWW.KUDUX.COM...
-
Page 16: Technical Parameters
• Over heat protection • Power: 100-240V, 50/60Hz • IP level: IP20 • Net weight：30 KGS 9. Contact: website Please check who is our dealer in your country at our www.kudux.com or write direct to us by email: office@kudux.com WWW.KUDUX.COM...
