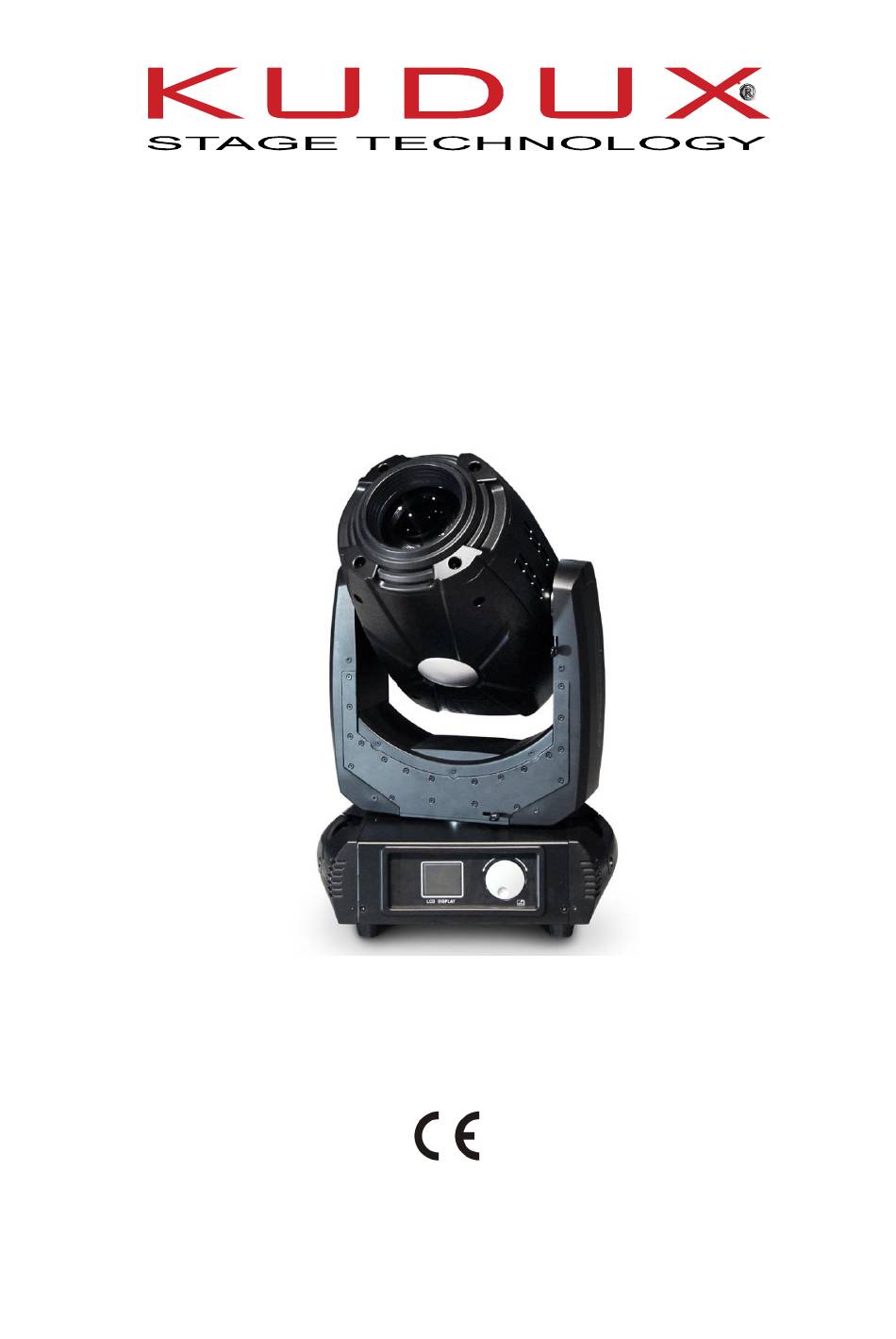

- Page 1 Moving Head Hot BEAM 150 LED User manual Please read the manual before installing and using this lighting Keep it for future reference...
- Page 2 If you have any remarks or comments, please share them with us. We will be grateful for any suggestions that will help us make products that are even better and devices that satisfy your needs. R&D Team WWW.KUDUX.COM...
-
Page 3: Table Of Contents
Package ..........................7 Install standard ........................8 Power supply ........................9 Color wheel, gobo wheel ....................9 Control panel ........................10 Control panel menu operate ................... 11 DMX Channels ......................14 Clear and maintenance ....................18 Contact: ........................18 WWW.KUDUX.COM... -
Page 4: Statement
Production introduces Thank you for choosing this HOT BEAM 150 LED products, this model is the moving head light which is the latest development of the smart, efficient products, beautiful shape, smooth R & D,... -
Page 5: Part Introduction
02 — control wheel 01 — 3 Pin DMX in 02 — 5 Pin DMX in 03 — Power switch 04 — Power in 05 — 3 Pin DMX out 06 — 5 pin DMX out 07 — Fuse WWW.KUDUX.COM... -
Page 6: Safety Information
The Fixture should be used with the protection screen together. 3.5. Prevention of electric shock The electrical connection must only be carried out with corresponding qualifications; Before installing, make sure you use the power voltage lamps must comply with the identified WWW.KUDUX.COM... -
Page 7: Package
Handling at least allow the device to cool for 20 minutes. • Do not replace the non-original parts. Package 4.1. Attachment HOT BEAM 150 LED packed with fly-case of one in one, two in one, or carton box. Attach follow accessory. CONTENT QUANTITY USER MANUL... -
Page 8: Install Standard
Before power on, make sure you have opened the X, Y axis lock! Install standard 5.1. Install lock HOT BEAM 150 LED can be placed on the stage, or mounted in an arbitrary direction of the truss. Two fast locks system could fix the item easily. 5.2. Equipment fixed •... -
Page 9: Power Supply
If lamp cable is damaged, replacement should be operated by factory or qualified staff. Any question, please contact professionals or talk to a qualified electrician. Live wire(L) Null(N) Ground wire BLUE Yellow +Green 7. Color wheel, gobo wheel WWW.KUDUX.COM... -
Page 10: Control Panel
MINI HOT BEAM Have 6 linear prism and 8 facet prism. With Focus . Rotation . Zoom . Shaking . Rotation speed changeable 8. Control panel Control wheel Display: to display all information of fixture. Control wheel: can turn right, left and enter. turn left ： date increase turn right ：date decrease Press function ：enter WWW.KUDUX.COM... -
Page 11: Control Panel Menu Operate
PAN/TILT optical "Off " sensor testing off "XY Fback" PAN/TILT optical "Open" sensor testing on ▲ Return Return Shortcust off for "Shortcut" "Off " colors and gobos Shortcust open for "Open" colors and gobos "Off " half color function WWW.KUDUX.COM... - Page 12 Open times memo " "Fan1Rota" 0000-9999 Fan rotation speed 1 "InfoSee " "Fan150 LED 0000-9999 Fan rotation speed 2 ota" "Version " XMOA Version No limit No limit time Spare time No limit No limit times Spare cut ▲ Return Return WWW.KUDUX.COM...
- Page 13 Ballast earthed "total 5V", Ballast 5V "Open" Tilt angel rotation "YAngle " 000-255 "Return " 000-255 return "Checksum 01-10" Check Cabrilate data " ▲ Return Return CHANLEVE Chan1..140 Show the dmx address Color...focus Display the status MotorRst ▲ Return WWW.KUDUX.COM...
-
Page 14: Dmx Channels
Whole unit reset 210－229 empty 230－239 Lamp off by dmx 240－255 empty Colors 0－8 white 9－17 Deep Red 18－26 Deep blue 27－36 Yellow 37－45 Green 46－54 Magenta 55－63 Azure 64－72 73－81 Dark green 82－90 Amber 91－100 blue 101－109 orange WWW.KUDUX.COM... - Page 15 Gobo 4 28－33 Gobo 5 34－39 Gobo 6 40－45 Gobo 7 46－51 Gobo 8 52－57 Gobo 9 58－63 Gobo 10 64－69 Small beam 1 70－75 Small beam 2 76－87 Small beam 3 Gobo shaking from slow to fast 88－95 shaking WWW.KUDUX.COM...
- Page 16 116－124 Gobo 4 125－133 Gobo 5 134－142 Gobo 6 143－151 Gobo 7 152－160 Gobo 8 161－169 Gobo 9 171－179 Gobo 9 not move 180－217 Run from fast to slow 218－255 Run from slow to fast Gobo rotation 0－127 index WWW.KUDUX.COM...
- Page 17 Strobe from slow to fast 96－127 No Strobe Fast to slow,slow close fast 128－143 open Slow to fast,fast open slow 144－159 close 160－191 Strobe open Random strobe from slow to 192－223 fast 224－255 No strobe dimmer 0－255 Linear dimmer empty WWW.KUDUX.COM...
-
Page 18: Clear And Maintenance
1. Cut off the power supply, cool down the lamp and open the covers. 2. Using vacuum or pressure blows gently blow any dust and floating structures. 12. Contact: website Please check who is our dealer in your country at our www.kudux.com or write direct to us by email: office@kudux.com WWW.KUDUX.COM...
