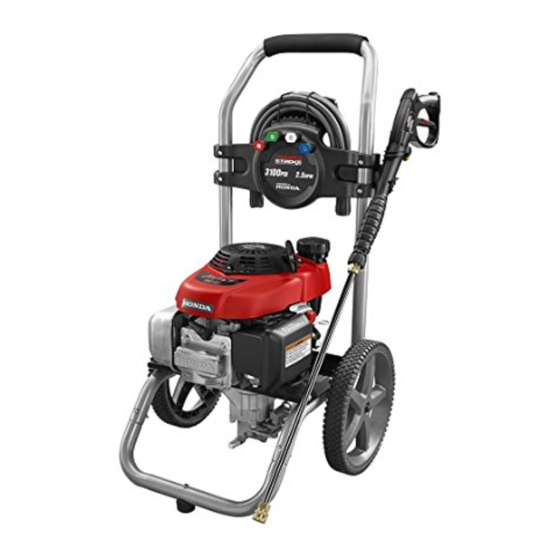

3100 psi pressure washer

Advertisement

Available languages

Available languages

Quick Links

OPERATOR'S MANUAL
MANUAL DEL OPERADOR
3100 PSI PRESSURE WASHER
LAVADORA A PRESIÓN DE 3 100 PSI
PS80996
To register your POWERSTROKE product, please
visit: http://register.powerstroketools.com/
Para registrar su producto de POWERSTROKE, por
favor visita: http://register.powerstroketools.com/
NOTICE
Do not use E15 or E85 fuel (or fuel
containing greater than 10% ethanol)
in this product. It is a violation of fed-
eral law and will damage the unit and void your warranty.
No utilice combustibles E15 o E85 (ni combustibles que
contengan más de 10 % de etanol) con este producto. Esto
constituye una violación a la ley federal, dañará la unidad
y anulará la garantía.
Your pressure washer has been engineered and manufactured to our high standard for dependability, ease of operation,
and operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING:
To reduce the risk of injury, the user must read and understand the operator's manual before using
this product.
Thank you for your purchase.
SAVE THIS MANUAL FOR FUTURE REFERENCE
Su lavadora de presión ha sido diseñada y fabricada de conformidad con las estrictas normas para brindar fiabilidad, facilidad
de uso y seguridad para el operador. Con el debido cuidado, le brindará muchos años de sólido y eficiente funcionamiento.
ADVERTENCIA:
antes de usar este producto.
Le agradecemos su compra.
GUARDE ESTE MANUAL PARA FUTURAS CONSULTAS
AVISO
Para reducir el riesgo de lesiones, el usuario debe leer y comprender el manual del operador
CUSTOMER SERVICE
SERVICIO AL CLIENTE
USA: 1-877-617-3501
Mexico: 01 800 843 1111
www.powerstroketools.com
