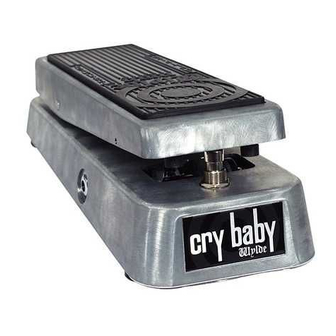

Congratulations on your purchase of the ZW-45 Zakk Wylde Signature Wah
from Dunlop. Dunlop is the most trusted name in wah pedal manufacturing
and the ZW-45 is designed to give you unparalleled sound quality and years
of dependable service. Please take a minute to read through this manual so
you can get the most out of your ZW-45.
Modern Crybaby master Zakk Wylde and Dunlop have joined forces to
deliver the toughest, meanest wah pedal on the planet. Built from the ground
up with great tone and rugged durability in mind, this pedal can stand up to
the crushing stomp of metal's reigning king of lead guitar. The Wylde Wah
features a heavy-duty raw-metal casing and roadworthy components to
withstand years of ass-kicking abuse. With guts that have been finely tuned
to Zakk's specs, this wah is specially voiced to deliver an extra thick and
cutting tone. The Wylde Wah—available only from Dunlop Manufacturing,
the world's leader in wah pedal technology.
SETUP INSTRUCTIONS
1) Insert a 9-volt battery, plug in an ECB-003 power adapter (ECB-003E for
Europe), or plug into a Dunlop DC Brick multi-power supply 9-volt output.
2.) Run a cord from your guitar to the ZW-45 instrument jack.
3.) Run another cord from the ZW-45's Amplifier jack into your amplifier input.
4.) Turn on the amplifier and begin play9ing.
5.) Turn the pedal on/off, push the toe of the pedal down until you feel a "click".
DUNLOP MANUFACTURING, INC. P.O. BOX 846 BENICIA, CA 94510 U.S.A.
PH. 707.745.2722 FAX. 707.745.2658 JIMDUNLOP.COM

Advertisement

loading
Need help?

Need help?

Do you have a question about the CRY BABY WULDE WAH ZW-45 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dunlop CRY BABY WULDE WAH ZW-45

  • Page 1 Congratulations on your purchase of the ZW-45 Zakk Wylde Signature Wah from Dunlop. Dunlop is the most trusted name in wah pedal manufacturing and the ZW-45 is designed to give you unparalleled sound quality and years of dependable service. Please take a minute to read through this manual so you can get the most out of your ZW-45.
  • Page 2 ZW-45 ZAKK WYLDE SIGNATURE WAH ADJUSTABLE ROCKER TORQUE This pedal comes with an adjustable torque clutch that allows the user to control the amount of resistance the rocker has to being moved. The MODEL ECB-024B 100K OHM adjustment is located under the rocker at the heel of the pedal. By HOT POTZ POTENTIOMETER placing the rocker toe down and looking under the rocker heel, you can see an adjustment allen head screw.
