About the user manuals
Product documentation is composed of the following documents.
• Installation Guide (accessory): Provides information about "Precautions", "Precautions for instal-
lation" and the installation method.
• Basic Information (this document): Provides information about "Precautions for use", "Parts and
functions" and "Detail specifications".
• Operating Instructions (in the following manual website): Explains how to perform the settings
and how to operate this camera.
https://i-pro.com/global/en/surveillance/documentation_database
"<Control No.: C****>" used in these documents should be used to search for information on our
support website (https://i-pro.com/global/en/surveillance/training_support/support/technical_
information) and will guide you to the right information.
• microSDXC/ microSDHC/ microSD memory card is described as microSD
memory card.
• The external appearance and other parts shown in this manual may differ
from the actual product within the scope that will not interfere with normal
use due to improvement of the product.

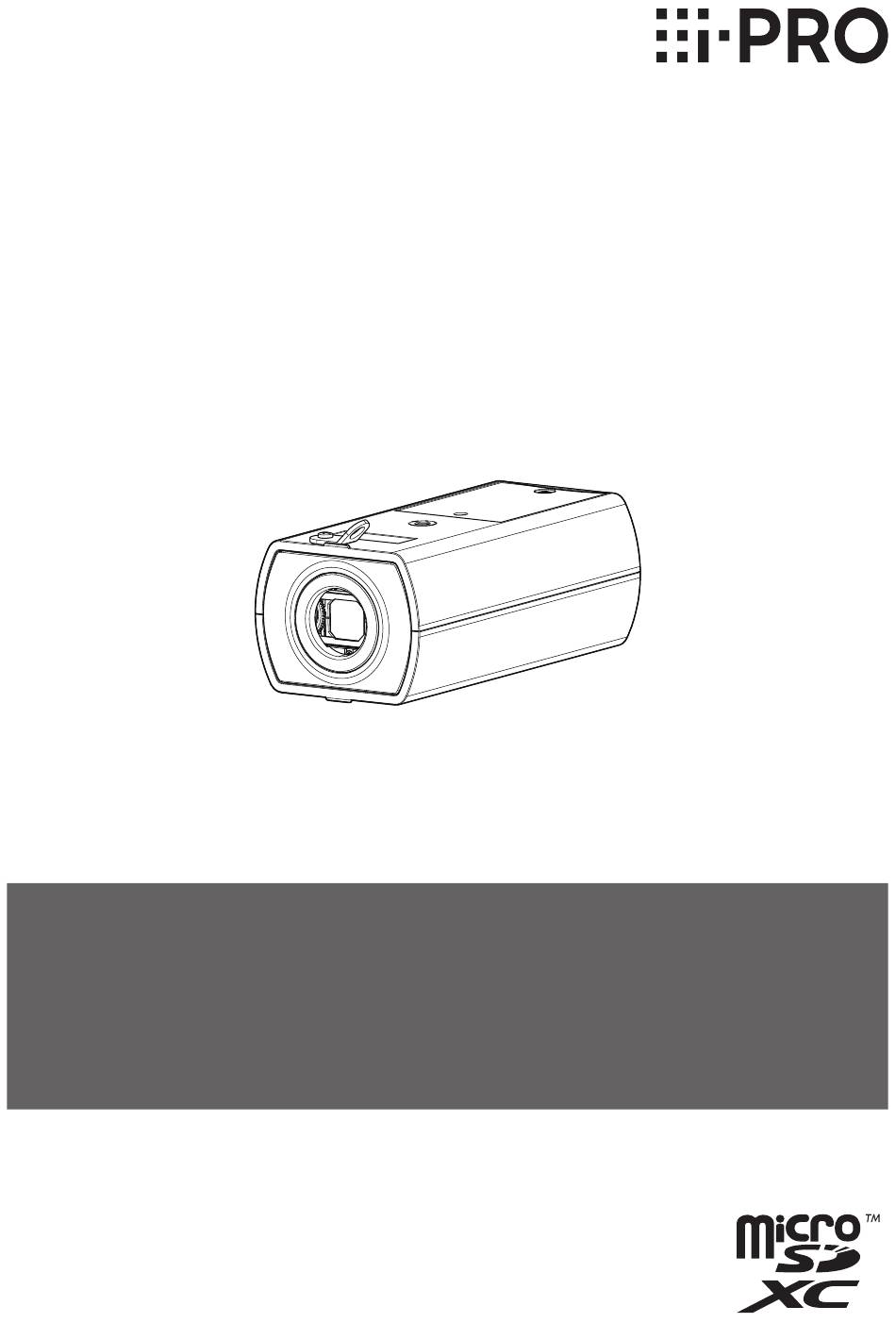

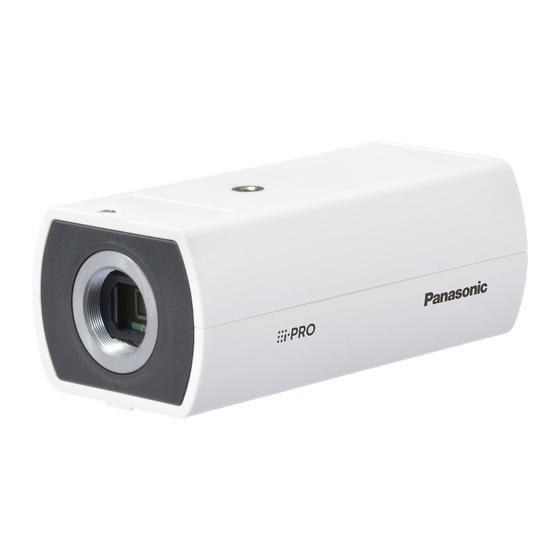

Basic Information
Network Camera
WV-S1136
Model No.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WV-S1136 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for i-PRO WV-S1136

Summary of Contents for i-PRO WV-S1136

  • Page 1 “<Control No.: C****>” used in these documents should be used to search for information on our support website (https://i-pro.com/global/en/surveillance/training_support/support/technical_ information) and will guide you to the right information. • microSDXC/ microSDHC/ microSD memory card is described as microSD memory card.

  • Page 2: Table Of Contents

    Contents Limitation of liability ........................3 Disclaimer of warranty ........................3 System requirements for a PC ...................... 4 Network security ........................... 5 Precautions for use ........................6 Parts and functions ........................8 Insert / remove a microSD memory card ..................14 Troubleshooting ...........................

  • Page 3: Limitation Of Liability

    IMPROVEMENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S). Disclaimer of warranty IN NO EVENT SHALL i-PRO Co., Ltd. BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW:...

  • Page 4: System Requirements For A Pc

    System requirements for a PC ® CPU: Intel Core Processor family - Intel ® Core i5-6500 or faster ® - Intel Core i7-6700 or faster recommended Memory: 4 GB (2 GB x 2, Dual Channel) or more recommended. Network interface: 10BASE-T/100BASE-TX 1 port Audio interface: Sound card (when using the audio function)

  • Page 5: Network Security

    Network security As you will use this unit connected to a network, your attention is called to the following security risks. A Leakage or theft of information through this unit B Use of this unit for illegal operations by persons with malicious intent C Interference with or stoppage of this unit by persons with malicious intent It is your responsibility to take precautions such as those described below to protect yourself against the above network security risks.

  • Page 6: Precautions For Use

    Precautions for use When the product is accessible from the Periodically images on the screen appear to Internet be distorted To prevent unauthorized access, note the following. When the camera is installed in a location where • Leave user authentication turned on. it is subject to small vibrations (for example, when •...
  • Page 7 Cleaning the lens Router Use a lens cleaning paper (used to clean camera When connecting this product to the Internet, lenses or lenses of spectacles). When using use a broadband router with the port forwarding solvent, use an alcohols solvent and do not use a function (NAT, IP masquerade).

  • Page 8: Parts And Functions

    Parts and functions ■ Terminals 【Rear】 Network connector (RJ45) ⑤ SD ERROR Power supply /ABF indicator terminal (12 V DC) EXT I/O ① terminals INITIAL SET button Audio output connector MONITOR OUT Audio input connector terminal ② ③ ACT indicator LINK indicator 【Side】...
  • Page 9 [1] Network connector (RJ45) Connect an Ethernet cable (category 5e or better, straight, 4 pairs (8 pins)) to the network connector. IMPORTANT: • Use all 4 pairs (8 pins) of the Ethernet cable. • The maximum cable length is 100 m {328 feet}. •...
  • Page 10 [4] Audio output connector Connect an external speaker* using a stereo mini plug (ø3.5 mm). (Audio output is monaural.) • Output impedance: Approx. 600 Ω (unbalanced) • Recommended cable length: Less than 10 m {32.8 feet} * Use a powered speaker. • Output level: –20 dBV IMPORTANT: •...
  • Page 11 [6] MONITOR OUT terminal (factory shipment: NTSC monitor) Used to connect a monitor used for adjustments during installation or when performing service. IMPORTANT: • The adjustment monitor is used for checking the adjustment of the angular field of view when installing the camera or when servicing.
  • Page 12 ■ Indicators and buttons ① INITIAL SET button (Initializing / NTSC ⇔ PAL switch button) Follow the steps below to initialize the network camera. ⑴ Turn off the power of the camera. When using a PoE hub, disconnect the Ethernet cable from the camera. When using an external power supply, disconnect the power cord plug (accessory) from the power supply terminal (12V DC).
  • Page 13 ⑤ SD ERROR/ABF indicator • When ABF (Auto Back Focus) operation is being executed Blinks red (Interval of 1 time/ second) • When the camera is being started Lights red Lights red → Lights off • When a microSD memory card is recognized normally Lights red →...

  • Page 14: Insert / Remove A Microsd Memory Card

    Insert / remove a microSD memory card Note: • Refer to the Operating Instructions on our manual website for further information about the microSD memory card settings. • Refer to our support website <Control No.: C0107> for latest information about the compat- ible microSD memory cards.
  • Page 15 ■ Remove a microSD memory card When removing a microSD memory card, reverse the procedure. • To remove the microSD memory card, hold down the SD ON/OFF button for about 2 seconds. When the flashing SD MOUNT indicator goes out, you can remove the microSD memory card. IMPORTANT: •...

  • Page 16: Troubleshooting

    Troubleshooting Before asking for repairs, check the symptoms with the following table. Contact your dealer if a problem cannot be solved even after checking and trying the solution in the table or a problem is not described below. Reference Symptom Cause/solution pages When using a PoE device for power supply...
  • Page 17 Reference Symptom Cause/solution pages • Check the following. • Grounding of the camera, a switching hub or periph- eral devices are not done. • The camera is used near an electrical power line. • The camera is used near a device which produces Audio input contains Installation strong magnetic field or radio waves (such as near a...

  • Page 18: Detail Specifications

    {2-15/16 inches (W) × 2-1/4 inches (H) × 5-3/4 inches (D)} (excluding lens/ power cord plug) Approx. 370 g {0.82 lbs} Mass: Finish: PC/ABS resin, i-PRO white *1 Refer to our support website <Control No.: C0106> for further information about Power source and Power consumption information.
  • Page 19 Camera • Image sensor: Approx. 1/2.8 type CMOS image sensor Effective pixels: Approx. 2.1 megapixels Scanning area: 5.57 mm (H)×3.13 mm (V) {7/32 inches (H) × 1/8 inches (V)} Scanning system: Progressive Minimum illumination: Color: 0.006 lx {0.00056 footcandle} (30IRE, F1.2, Maximum shutter: Off (1/30 s), AGC: 11)* 0.008 lx {0.00075 footcandle} (50IRE, F1.2, Maximum shutter: Off (1/30 s), AGC: 11) 0.0005 lx {0.00005 footcandle}...
  • Page 20 Maximum shutter: [60 fps mode] Max. 1/4000 s, Max. 1/2000 s, Max. 1/1000 s, Max. 1/500 s, Max. 1/250 s, Max. 1/120 s, Max. 1/100 s, Max. 2/120 s, Max. 1/30 s, Max. 2/30 s, Max. 4/30 s, Max. 6/30 s, Max. 10/30 s, Max. 16/30 s [30 fps/15 fps mode] Max.
  • Page 21 • Network Network: 10BASE-T/100BASE-TX, RJ45 connector Resolution * [16:9 mode (60 fps mode)] [16:9 mode (30 fps mode)] H.265/ H.264 JPEG (MJPEG) [16:9 mode (50 fps mode)] [16:9 mode (25 fps mode)] 1920×1080/ 1280×720/ 640×360/ 320×180 [4:3 mode (30 fps mode)] [4:3 mode (25 fps mode)] 1280x960/ VGA/ QVGA [4:3 mode (15 fps mode)]...
  • Page 22 JPEG (MJPEG) Image quality: 0 SUPER FINE/ 1 FINE/ 2/ 3/ 4/ 5 NORMAL/ 6/ 7/ 8/ 9 LOW (10 steps: 0-9) Transmission type: Pull (Refresh interval)/ Push (MJPEG) Refresh interval: [60 fps mode] 0.1 fps/ 0.2 fps/ 0.33 fps/ 0.5 fps/ 1 fps/ 2 fps/ 3 fps/ 5 fps/ 6 fps/ 10 fps/ 12 fps/ 15 fps/ 30 fps/ 60 fps [30 fps mode] 0.1 fps/ 0.2 fps/ 0.33 fps/ 0.5 fps/ 1 fps/ 2 fps/ 3 fps/ 5 fps/ 6 fps/...
  • Page 23 Microsoft Windows 10 Microsoft Windows 8.1 Browser * Microsoft Edge Firefox Google Chrome Maximum concurrent 14* (Number of sessions that can connect to cameras at the same time) access number: * Depends on network conditions Multi-screen: Up to 16 camera images can be displayed simultaneously on a multi-screen. * (Including the camera itself) microSD memory microSDXC memory card: 64 GB, 128 GB, 256 GB, 512 GB...
  • Page 24 Authorised Representative in EU: i-PRO EMEA B.V. Laarderhoogtweg 25, 1101 EB i-PRO Co., Ltd. Amsterdam, Netherlands Fukuoka, Japan i-PRO EMEA B.V. UK Branch 1010 Cambourne Business Park, https://www.i-pro.com/ Cambridgeshire CB23 6DP © i-PRO Co., Ltd. 2022 N0521-1042 PGQP3164YA...
