About the user manuals
Product documentation is composed of the following documents.
• Installation Guide (accessory): Provides information about "Precautions", "Precautions for instal-
lation" and the installation method.
• Basic Information (this document): Provides information about "Precautions for use", "Parts and
functions" and "Detail specifications".
• Operating Instructions (Refer to the link on the following support website): Explains how to
perform the settings and how to operate this camera.
https://i-pro.com/global/en/surveillance/documentation_database
"<Control No.: C****>" used in these documents should be used to search for information on our technical
information website (https://i-pro.com/global/en/surveillance/training_support/support/technical_information)
and will guide you to the right information.
• microSDXC/ microSDHC/ microSD memory card is described as microSD
memory card.
• The external appearance and other parts shown in this manual may differ
from the actual product within the scope that will not interfere with normal
use due to improvement of the product.
Basic Information
WV-S15700-V2L
Model No.
WV-S15600-V2L
WV-S15500-V3L
WV-S15500-F6L
WV-S15500-F3L

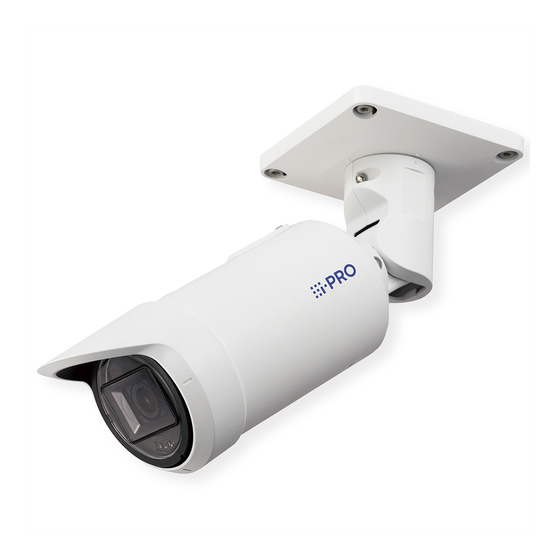

Network Camera
WV-S15700-V2L
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for i-PRO WV-S15700-V2L
Summary of Contents for i-PRO WV-S15700-V2L
- Page 1 “<Control No.: C****>” used in these documents should be used to search for information on our technical information website (https://i-pro.com/global/en/surveillance/training_support/support/technical_information) and will guide you to the right information. • microSDXC/ microSDHC/ microSD memory card is described as microSD memory card.
-
Page 2: Table Of Contents
Contents Limitation of liability ........................3 Disclaimer of warranty ........................3 About notations ..........................4 System requirements for a PC ...................... 4 Network security ........................... 5 Precautions for use ........................6 Parts and functions ........................9 Insert / remove a microSD memory card ..................14 Troubleshooting ........................... -
Page 3: Limitation Of Liability
IMPROVEMENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S). Disclaimer of warranty IN NO EVENT SHALL i-PRO Co., Ltd. BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW:... -
Page 4: About Notations
The following items indicate the color of PC resin. The functions with this notation are available when using the model with the i-PRO white body. The functions with this notation are available when using the model with the black body. -
Page 5: Network Security
Network security As you will use this unit connected to a network, your attention is called to the following security risks. A Leakage or theft of information through this unit B Use of this unit for illegal operations by persons with malicious intent C Interference with or stoppage of this unit by persons with malicious intent It is your responsibility to take precautions such as those described below to protect yourself against the above network security risks. -
Page 6: Precautions For Use
Precautions for use When the product is accessible from the About the automatic status detection Internet function To prevent unauthorized access, note the When this product malfunctions due to following. exogenous noise, etc. for 30 seconds or more, the product will automatically restart and will return •... - Page 7 Do not use benzine, thinner, alcohol, or any other types of solvents or detergents. Otherwise, it may <WV-S15500-V3L><WV-S15600-V2L> cause discoloration. When using a chemical cloth <WV-S15700-V2L><WV-S15500-F6L> for cleaning, read the caution provided with the <WV-S15500-F3L> chemical cloth product. Cleaning of the front panel •...
- Page 8 AVC Patent Portfolio License Time & date setting THIS PRODUCT IS LICENSED UNDER THE AVC It is necessary to set the time & date before PATENT PORTFOLIO LICENSE FOR THE putting this product into operation. Refer to the PERSONAL USE OF A CONSUMER OR OTHER Operating Instructions for descriptions of how to USES IN WHICH IT DOES NOT RECEIVE perform the settings.
-
Page 9: Parts And Functions
Parts and functions The following are descriptions when using the model WV-S15700-V2L. ■ Cables cable [1] Ethernet (category 5e or better, straight, [1] RJ45 Network cable 4 pairs (8 pins)) 4P alarm cable [5] EXT I/O cable (WV-QCA501A accessory) 2P power cable... - Page 10 [2] Power supply cable / 2P power cable (WV-QCA501A accessory) Connect the output cable of the DC power supply to the 2P power cable. IMPORTANT: • Be sure to use the 2P power cable provided with WV-QCA501A. • Be sure to fully insert the 2P power cable into the power supply cable. Otherwise, it may damage the camera or cause malfunction.
- Page 11 [5] EXT I/O cable / 4P alarm cable (WV-QCA501A accessory) Note: • Off, input, and output of the ALARM IN2 and 3 can be switched by configuring the setting. Refer to the Operating Instructions for further information about the ALARM IN2 and 3 settings (“Off”, “Alarm input”, “Alarm output”...
- Page 12 ■ Indicators and buttons WIDE+AF button 157V2L 157V2L 156V2L 156V2L 155V3L 155V3L TELE+AF button 157V2L 157V2L 156V2L 156V2L 155V3L 155V3L INITIAL SET button SD ON/OFF button SD memory card warning/error indicator SD MOUNT indicator ACT indicator LINK indicator INITIAL SET button (Initializing / NTSC PAL switch button) Follow the steps below to initialize the network camera.
- Page 13 SD MOUNT indicator Lights off → Blinks green → • When a microSD memory card is inserted and could be recognized Lights off Lights off → Lights green • When data can be saved after the microSD memory card is inserted and the SD ON/OFF button is pressed (less than 1 second) •...
-
Page 14: Insert / Remove A Microsd Memory Card
Insert / remove a microSD memory card Note: • Use a microSD memory card dedicated to i-PRO cameras. • Refer to the Operating Instructions on our support website for further information about the microSD memory card settings. ■ Insert a microSD memory card Remove the front portion from the camera. - Page 15 • When some microSD memory cards are used with this product, the product may not work properly or performance deterioration may be caused. Use a microSD memory card dedicated to i-PRO cameras. SD slot IMPORTANT: •...
-
Page 16: Troubleshooting
Troubleshooting Before asking for repairs, check the symptoms with the following table. Contact your dealer if a problem cannot be solved even after checking and trying the solution in the table or a problem is not described below. Reference Symptom Cause/solution pages When using a PoE device for power supply... - Page 17 Reference Symptom Cause/solution pages • Check the following. • Grounding of the camera, a switching hub or periph- eral devices are not done. • The camera is used near an electrical power line. • The camera is used near a device which produces Audio input contains Installation strong magnetic field or radio waves (such as near a...
-
Page 18: Detail Specifications
Detail specifications Basic • Power source * DC 12 V PoE (IEEE802.3af compliant) Power consumption * 157V2L 156V2L 155V3L DC 12 V: 1.0 A/ Approx. 12.0 W PoE DC 48 V: 240 mA/ Approx. 11.5 W (Class 0 device) 155F6L 155F3L DC 12 V: 880 mA/ Approx. - Page 19 *1 Refer to our support website <Control No.: C0106> for further information about Power source and Power consumption information. *2 When using with the IR LED Light constantly lit, the upper limit of the operating temperature range is +50 °C {+122 °F}. 157V2L 156V2L This camera is not equipped with the function to change the audio output to the monitor output.
- Page 20 Minimum illumination: 155F6L Color: 0.08 lx {0.0075 footcandle} (30IRE, F1.6, Maximum shutter: Off (1/30 s), AGC: 11)* 0.11 lx {0.0103 footcandle} (50IRE, F1.6, Maximum shutter: Off (1/30 s), AGC: 11) 0.007 lx {0.0007 footcandle} (50IRE, F1.6, Maximum shutter: max. 16/30 s, AGC: 11)* BW: 0 lx {0 footcandle} (50IRE, F1.6, Maximum shutter: OFF (1/30 s), AGC: 11, when the IR LED is lit)
- Page 21 [30 fps mode] Shutter speed: 157V2L 156V2L 1/30 Fix, 3/120 Fix, 2/100 Fix, 2/120 Fix, 1/100 Fix, 1/120 Fix, 1/250 Fix, 1/500 Fix, 1/1000 Fix, 1/2000 Fix, 1/4000 Fix, 1/10000 Fix 155V3L [25 fps mode] 1/25 Fix, 3/100 Fix, 2/100 Fix, 1/100 Fix, 1/250 Fix, 1/500 Fix, 1/1000 Fix, 1/2000 Fix, 1/4000 Fix, 1/10000 Fix [30 fps mode] Maximum shutter:...
- Page 22 *1 The frame rate is limited to 15 fps for level 30 or higher. *2 When the 320x180 resolution is used, the “90°” and “270°” settings are not available. *3 When “0°(Off)” or “180° (Upside-down)” is used, the analog output of the MONITOR OUT terminal rotates according to the setting angle of the rotated image.
- Page 23 Aperture range: 157V2L 156V2L F1.5 – Close 155V3L F1.3 – Close 155F6L F1.6 155F3L F2.0 Angular field of view: 157V2L 156V2L [16:9 mode] Horizontal: 53° (TELE) – 104° (WIDE) Vertical: 30° (TELE) – 56° (WIDE) 155V3L [16:9 mode] Horizontal: 34° (TELE) – 106° (WIDE) Vertical: 19°...
- Page 24 DORI * 157V2L Detect (25 ppm / 8 ppf) 154 m {505.4 ft} (TELE) 60 m {196.9 ft} (WIDE) Observe (62.5 ppm / 19 ppf) 61.6 m {202.1 ft} (TELE) 24.0 m {78.7 ft} (WIDE) Recognize (125 ppm / 38 ppf) 30.8 m {101.1 ft} (TELE) 12.0 m {39.4 ft} (WIDE) Identify (250 ppm / 76 ppf) 15.4 m {50.5 ft} (TELE) 6.0 m {19.7 ft} (WIDE)
- Page 25 • Network Network: 10BASE-T/100BASE-TX, RJ45 connector Resolution: 157V2L H.265/ H.264 * [16:9 mode(30 fps mode)][16:9 mode(25 fps mode)] JPEG (MJPEG) 3840×2160/ 2560×1440/ 1920×1080/ 1280×720/ 640×360/ 320×180 156V2L [16:9 mode(30 fps mode)][16:9 mode(25 fps mode)] 3328×1872/ 2560×1440/ 1920×1080/ 1280×720/ 640×360/ 320×180 155V3L 155F6L 155F3L...
- Page 26 JPEG (MJPEG) Image quality: 0 SUPER FINE/ 1 FINE/ 2/ 3/ 4/ 5 NORMAL/ 6/ 7/ 8/ 9 LOW (10 steps: 0-9) Transmission type: Pull (Refresh interval)/ Push (MJPEG) Refresh interval: [30 fps mode] 0.1 fps/ 0.2 fps/ 0.33 fps/ 0.5 fps/ 1 fps/ 2 fps/ 3 fps/ 5 fps/ 6 fps/ 10 fps/ 12 fps/ 15 fps/ 30 fps [25 fps mode] 0.08 fps/ 0.17 fps/ 0.28 fps/ 0.42 fps/ 1 fps/ 2.1 fps/ 3.1 fps/ 4.2 fps/...
- Page 27 <Control No.: C0132>. *5 When using MJPEG/JPEG (Refresh interval) only. *6 Use a microSD memory card dedicated to i-PRO cameras. *7 For possible number of images and duration (an indication) that can be saved on the microSD memory card, refer to our support website below.
- Page 28 Authorised Representative in EU: i-PRO EMEA B.V. Laarderhoogtweg 25, 1101 EB i-PRO Co., Ltd. Amsterdam, Netherlands Fukuoka, Japan i-PRO EMEA B.V. UK Branch 1010 Cambourne Business Park, https://www.i-pro.com/ Cambridgeshire CB23 6DP © i-PRO Co., Ltd. 2022 av0322-1062 PGQP3420YA...
