STAND HEATER ASSEMBLY:

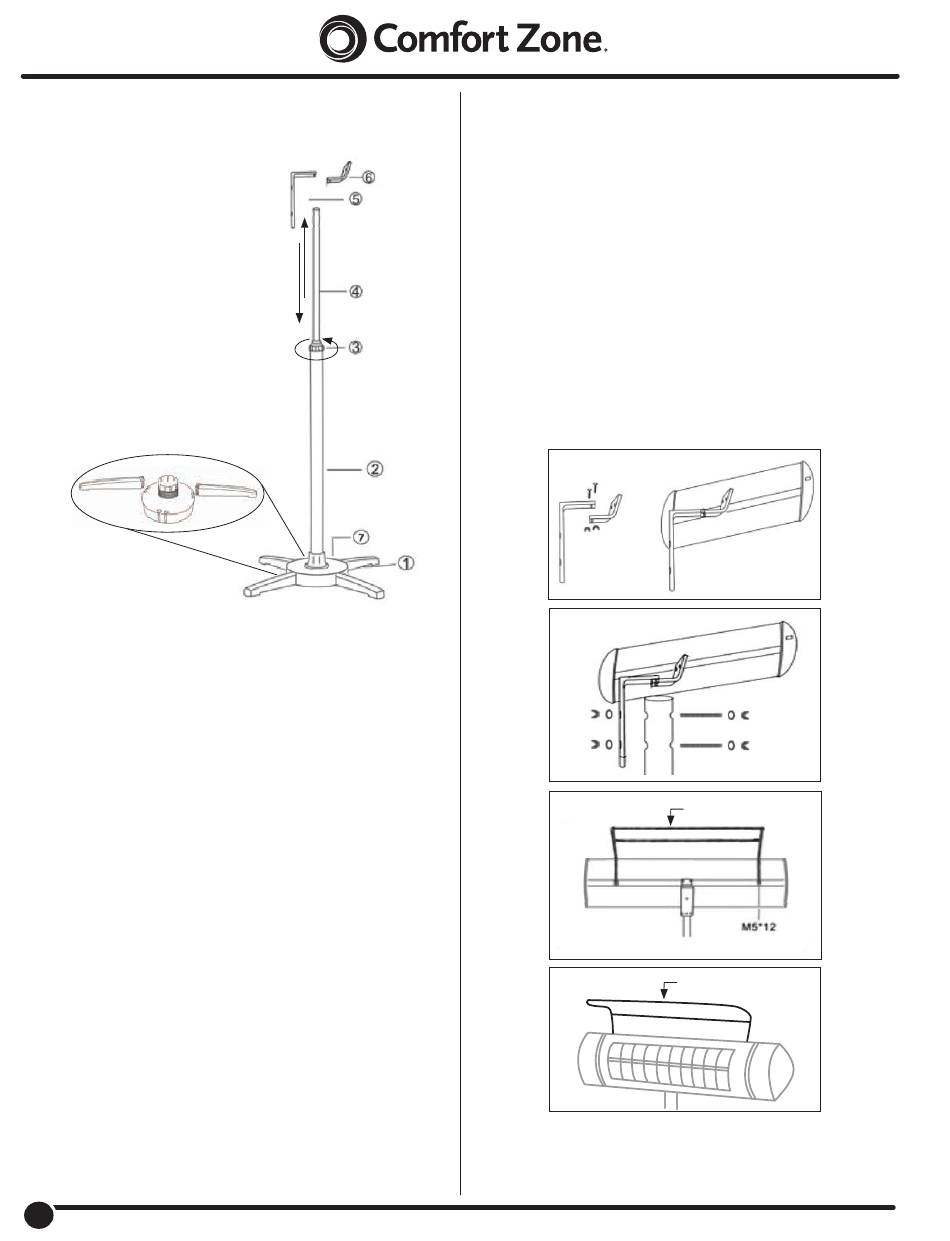

HEATER STAND COMPONENTS:
1. Cross base
2. Bottom tube
3. Fixed plastic screw nut
4. Top tube
5. Bracket 1
6. Bracket 2
7. Base center weight
ASSEMBLING THE STAND:
1. Push the narrower top tube through the black plastic cap
fixed screw (Part #3 on the above diagram).
2. Turn the fixed screw until tight. This piece can be loosened
and the top tube adjusted to the desired height, then the
fixed screw should be tightened again to keep the top tube
in place.
3. Unscrew the top cap of the base center weight and remove.
Insert the bottom tube into center hole.
4. Assemble the four feet to base by sliding them down from
the top. A rubber mallet can be used to gently push them
into place.
5. Slide the top cap of the base center weight over the top of
the pole and down to the bottom. Screw it tightly back onto
the base center weight.
4
4
www.comfortzoneproducts.com

STAND MOUNTING:

CAUTION:
Please keep the Comfort Zone Indoor/Outdoor
Patio Heater at a horizontal angle when mounted to the stand.
For safety, the heater SHOULD NOT be mounted vertically or
diagonally. The heater has a tip-over sensor inside. If the heater
is mounted vertically or diagonally, the heater will not function.
1. Connect bracket 1 and bracket 2 by using the two M6*14
screws (Fig. 6).
2. Using the two M6x60 double end threaded stud screw bolts,
plus the 4 washers and 4 nuts provided, install the aluminum
bracket and heater body to the holder (Fig. 7).
3. Using the two M5*12 screws connect the SAFETY DRAPE
BAR to the back side of heater body (Fig. 8). The top of the
safety drape bar should extend over the top of the heater,
extending towards the front of the heater (Fig. 9).
Fig. 7
Fig. 8
Fig. 9
ATTENTION!
The Safety Drape Bar is to keep flammable items away from
the heater grille. It should never be covered with clothing,
towels, blankets, or anything else which may catch fire.
Fig. 6
Safety Drape Bar
Safety Drape Bar
