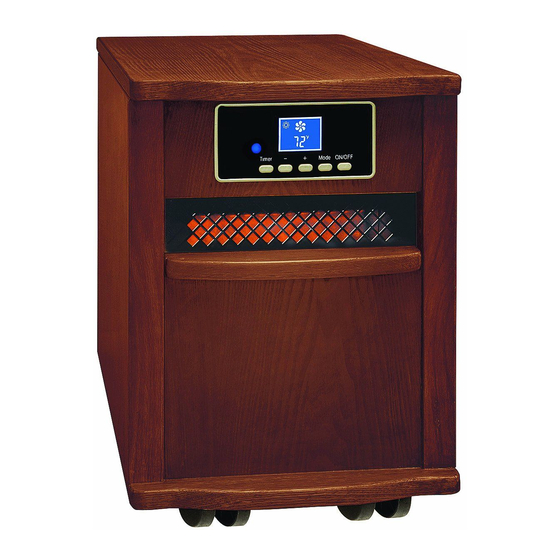

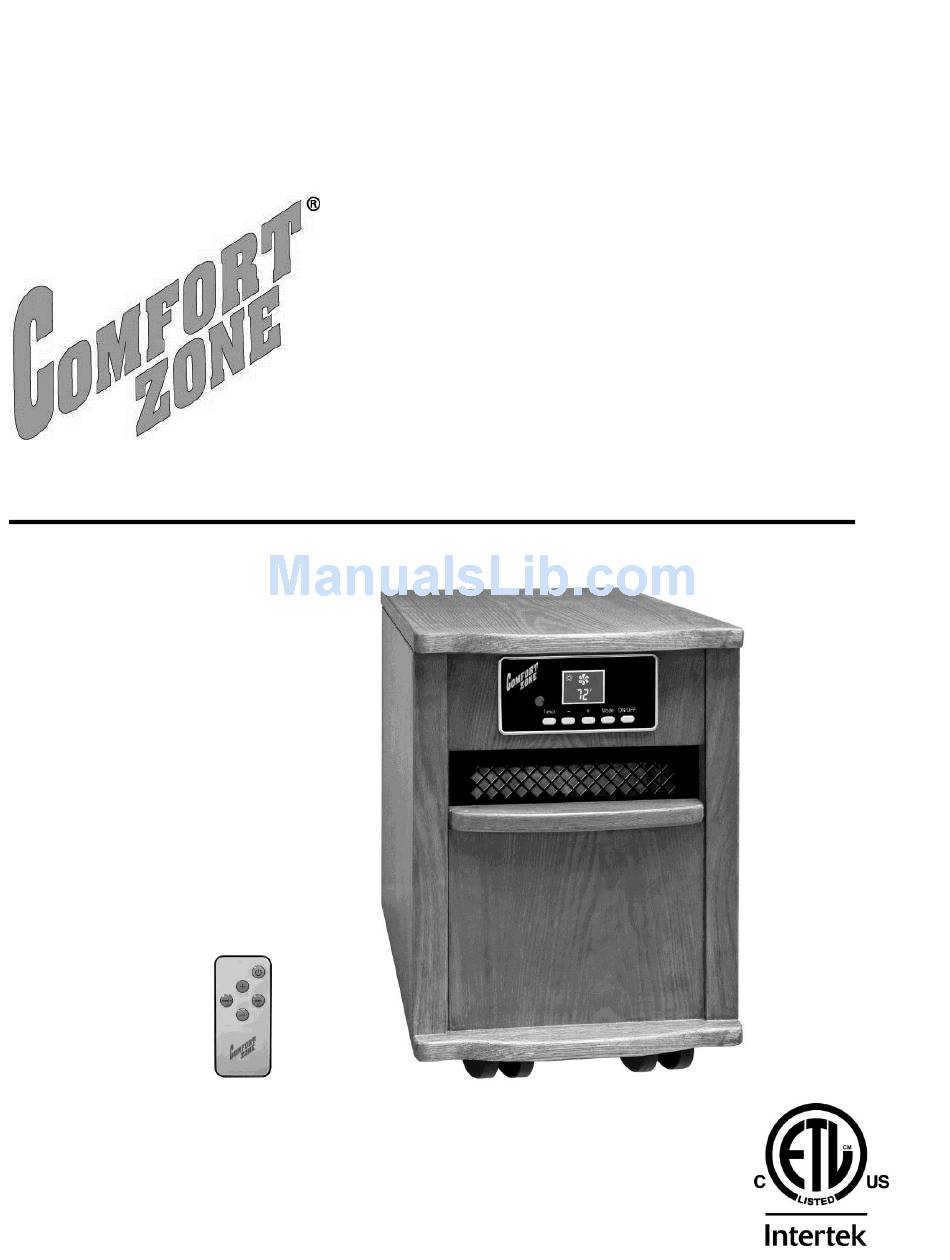

PLEASE SAVE THESE INSTRUCTIONS WARNING: READ THIS OWNER’S MANUAL CAREFULLY BEFORE USE. Thank you for choosing the Comfort Zone® Digital Quartz Infrared Heater. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new heater.
12. A heater has hot and arcing or sparking parts inside. DO NOT use in areas where gasoline, paint, explosive and/or flammable liquids are used or stored. Keep unit away from heated surfaces and open flames. 13. Do not use an extension cord because the extension cord may overheat and cause a risk of fire. 14.
WARNING: This heater has a voltage rating of 120 volts. The cord has a plug as shown in A. An adapter as shown in C is available for connecting three-blade grounding-type plugs to two-slot receptacles. The grounding lug extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box.
Control Panel 1. Energy-Saving Function Indicator: indicates when energy-saving mode is on. 2. Low Power Indicator: indicates when low 1000 watt mode is on. 3. High Power Indicator: indicates when high 1500 watt mode is on. 4. Fan Indicator: shows when fan is running. 5.
Remote Control The remote control buttons function the same way as they do on the control panel. ON/OFF Button: used for power-on /power-off. Temp Up Button: used for raising set temperature or timer value. Mode Button: used for selecting running mode. Temp Down Button: used for reducing set temperature or timer value.
OPERATING INSTRUCTIONS 1. Power On and Select Power Mode. Turn the heater on by pressing the ON/OFF button on the control panel or by pressing the POWER button on the supplied remote control. Select a heat setting Press the MODE button to toggle between the three heat settings.
3. Set Timer Power-Off The unit has a timer feature that will turn the heater OFF after a set amount of time. The duration is set in 1-hour intervals. With heater power ON, press the ”Timer” on the control panel or “TIMER”...
Page 9
5. Set Control Panel Button Lock The control Panel has a locking feature for child safety. The control panel lock will also disable the remote control. On the control panel, press Temp Up and Temp Down buttons together for 3 seconds. The control panel is locked when you hear the tone.
MAINTENANCE 1. Unplug the unit and let it cool completely. 2. To keep the heater clean, the outer shell may be cleaned with a soft, damp cloth. You may use a mild detergent if necessary. After cleaning, dry the unit with a soft cloth. CAUTION: DO NOT let liquid enter the heater.
1. If you do not plan on using the heater for a long period of time, please remove the remote control battery according to the below diagram. Battery Cover Battery PULL PUSH STORAGE Store the heater in a cool, dry location when not in use. To prevent dust and dirt build-up, use the original packaging to repack the unit.
LIMITED WARRANTY Products manufactured by Comfort Zone® are warranted to the original consumer to be free of defects in material and workmanship for twelve (12) months from the original date of purchase. The warranty does not cover products modified outside our factory, damage or failure caused by acts of God, abuse, misuse, abnormal usage, faulty installation, failure to follow suggested maintenance procedures enclosed with this product (as defined by Magnuson-Moss Warranty-Federal Trade Commission lmprovement Act) This unit is guaranteed to the original retail purchaser against defects in quality or workmanship for a period of one year from the date of...
