INSTALLATION INSTRUCTIONS:

ATTENTION!
1. This heater should be handled gently during installation
and while cleaning.
2. Do not install in an acidic or alkaline environment.
3. The heater must be grounded.
4. This heater must be plugged into a 120 Volt A.C.,
15 AMP (or larger) circuit.
5. Ensure the power rating has sufficient current carrying
capacity.
NOTE: Any electrical wiring for the heater that has to be
done should be completed by a qualified specialist.
ATTENTION!
1. The heater must only be installed and operated in a
horizontal position with max. ± 15° slope. For safety, do
not mount your heater in a vertical or diagonal position.
Never install your heater on a combustible surface. DO NOT
mount on plastic or vinyl.
2. The distance of your heater from the ground should be a
minimum of 6 ft. (1.8 m).
3. The distance of your heater from the ceiling should be a
minimum of 1.5 ft (0.7 m).
INCORRECT INCORRECT
NOTE: For your safety, do not attempt to alter this heater in any
way. Do not attempt to perform repairs on your heater. Consult
a professional electrician.
www.comfortzoneproducts.com

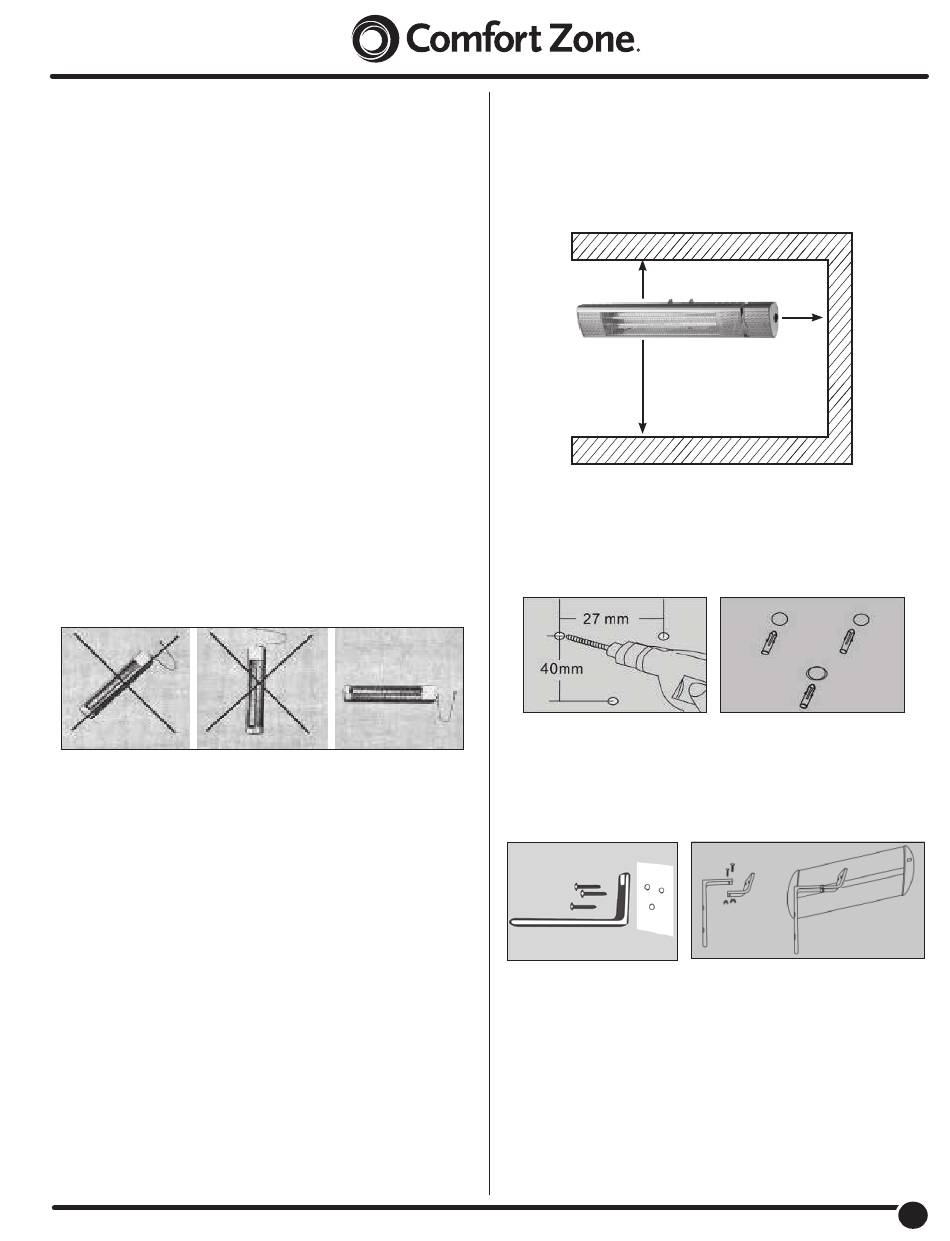

WALL MOUNTING:

1. For safety, the product should be installed at least
6ft. above the ground. It should be installed
at least 18in. away from ceiling or roof, and should be
at least 18in. from a wall or structure to the left and the
right of the mounted heater (Fig. 1).
2. Using a drill, make three 5/16in. (8 mm) round holes (Fig. 2)
and insert three plastic wall anchors into the holes (Fig. 3).
Screw the long bracket (Bracket 1) into the wall using the
screws provided.
CORRECT
3. Using the screws provided, screw the short bracket (Bracket
2) to the long bracket (Bracket 1), using nuts to tighten.
Bracket 2 should already be affixed to the heater
(Fig. 4 and Fig. 5).
18 in.
6 ft.
Fig. 1
Fig. 2
Fig. 4
18 in.
Fig. 3
Fig. 5
