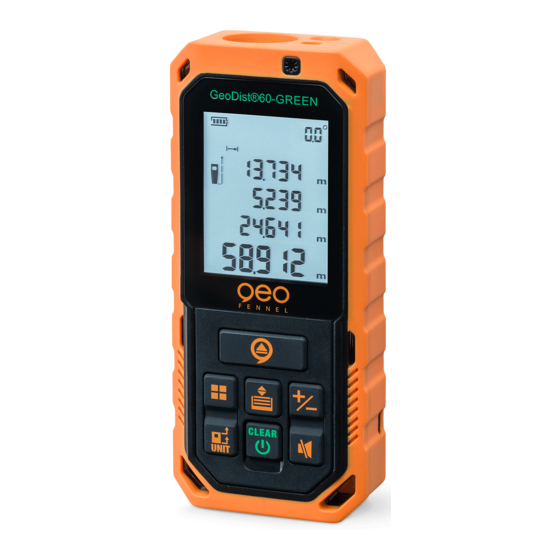

- Page 1 GeoDist 60-GREEN ® USER MANUAL www.geo-fennel.com...
- Page 2 Dear Customer, Thank you for your confidence in us, having purchased a geo-Fennel instru- ment. For the optimum performance of the instrument, please read this manual carefully and keep it in a convenient place for future reference. This manual contains important safety information that should be read and understood before use.
- Page 3 Technical data Measuring distance 0,2 - 60 m* Accuracy distance measurement ±2 mm** Accuracy tilt measurement ± 0,3° Laser class 2 / green Power supply NiMH Temperature range -10°C - +40°C Measuring units m / ft / in / ft+in Dust / water protection IP 65 Dimensions...
- Page 4 POWER SUPPLY INSERT 3 X AAA NIMH BATTERIES Ensure correct polarity when inserting the batteries. CHARGE THE BATTERIES Open the cover of the USB plug (bottom of the instrument) and charge the battery via the USB connection. For this use a standard USB charger, i.
- Page 5 1. Measuring key (press briefly: single measurement / press long: continuous measurement) 2. Measuring mode: area, volume, Pythagoras, indirect measure- ment 1 + 2 3. Press briefly: measuring reference: front, rear, tripod Press long: measuring units: m / ft / in / ft+in 4.
- Page 6 GENERAL NOTES · After 3 minutes without operation the instruments powers off automa- tically. · The instrument automatically saves the last 20 measured values. MEASURING REFERENCE FRONT TRIPOD REAR ADDITION / SUBTRACTION Press briefly -> add Press long -> substract etc.
- Page 7 AREA CALCULATION 1st distance Press until appears 2nd distance Press for the 1st distance circumference Press for the 2nd distance area VOLUME CALCULATION 1st distance Press until appears 2nd distance Press for the 1st distance 3rd distance Press for the 2nd distance volume Press for the 3rd distance...
- Page 8 PYTHAGORAS (3-POINT) Press until appears Press for the inclined distance top Press for the horizontal distance Press for the inclined distance bottom inclined distance top horizontal distance inclined distance bottom height PYTHAGORAS (3-POINT / PARTIAL HEIGHT) Press until appears Press for the inclined distance top Press for the inclined distance bottom...
- Page 9 INDIRECT MEASUREMENTS VIA INCLINATION WITH HIGH ACCURACY Where direct measurements to the target are not possible, e.g. on glass facades without measurement reflection or when the measurement object is obscured: Measure partial distances, the device will calculate the missing distances. Here a general note: ·...
- Page 10 MEMORY The instrument automatically saves the last 20 measured values. Memory recall TROUBLE SHOOTING Code Cause Corrective action Calculation error Repeat the measurement Excessive current Contact your dealer Battery weak Charge the battery Signal too weak or Change the target surface measuring time too long Signal too strong Change the target surface...
- Page 11 SAFETY NOTES INTENDED USE OF INSTRUMENT The instrument emits a visible laser beam in order to carry out the following measuring tasks (depending on the instrument): distance measurements. SPECIFIC REASONS FOR ERRONEOUS MEASURING RESULTS Measurements through glass or plastic windows; dirty laser emitting windows;...
- Page 12 EXCEPTIONS FROM RESPONSIBILITY The user of this product is expected to follow the instructions given in the user manual. Although all instruments left our warehouse in perfect condition and adjustment the user is expected to carry out periodic checks of the product’s accuracy and general performance. The manufacturer, or its representatives, assumes no responsibility of results of a faulty or intentional usage or misuse including any direct, indirect, consequential damage, and loss of profits.
- Page 13 60825-1:2014. It is allowed to use the unit without further safety precau- tions. The eye protection is normally secured by aversion responses and the blink reflex. The laser instrument is marked with class 2 warning labels. www.geo-fennel.de G ER M A N Y Laser IEC 60825-1:2014 P ≤...
- Page 14 GmbH Technische Änderungen vorbehalten. Kupferstraße 6 All instruments subject to technical changes. D-34225 Baunatal Sous réserve de modifications techniques. Tel. +49 561 / 49 21 45 +49 561 / 49 72 34 info@geo-fennel.de www.geo-fennel.de 01/2021 Precision by tradition.
