Electric principle diagram
A.Computer-controlling board B.Power Plug
E.Sensor
F.Door Switch
I.Washing Pump
J.Drain Pump
C.Power Switch
D.Water Level Switch
G.Water Inlet Valve
H.Capacitor
K.Temperature Limiter
L.Heater

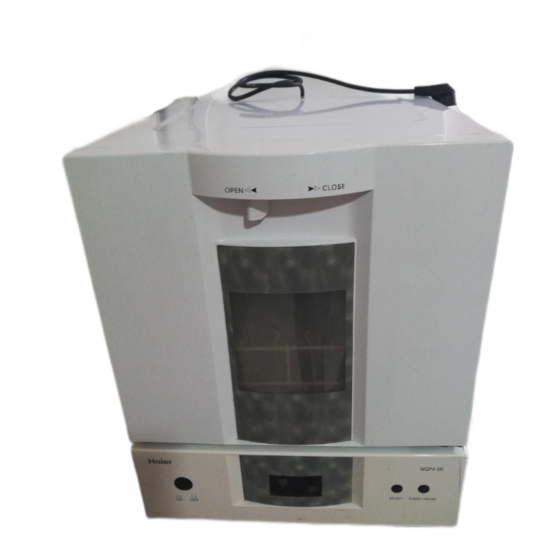

Haier Household Electric Dishwasher
WQP4-3N
Maintenance
Electric principle diagram
CONTENTS
Advertisement
Related Manuals for Haier WQP4-3N
Summary of Contents for Haier WQP4-3N
-
Page 1: Table Of Contents
Electric principle diagram A.Computer-controlling board B.Power Plug C.Power Switch E.Sensor F.Door Switch G.Water Inlet Valve I.Washing Pump J.Drain Pump K.Temperature Limiter Haier Household Electric Dishwasher WQP4-3N D.Water Level Switch Features H.Capacitor Parts and Functions L.Heater Safety Before operation Operation instructions... -
Page 2: Features
Easy operation and convenient use All mentioned above are advanced features of the appliance. PARTS AND FUNCTIONS This unit is a tableware-cleaning dishwasher. It sprays hot water with detergent on the tableware, then flushes with clean water. Handle Used when opening or closing the door. - Page 3 When abnormal phenomenon appears, turn the power switch to"off", take off the power plug, or cut off the main power supply and get in touch with haier After- Take off sales Service Center at once.
-
Page 4: Safety
Easy to be Be careful with the dishes after washing. scaled Do not put heavy objects or water containers on the top of the dishwasher. Forbidden For dishwashers with ventilation openings in the base, That a carpet must not obstruct the openings. -
Page 5: Operation Instructions
1)Set the lock on"open"position, draw the handle forward to open the backdoor. Washing time Duration Rinse1 Rinse2 Drying 2)Draw the shelf out of the dishwasher About 10 Min About 20 Min 6 Min 67Min shelf 62Min 52Min 2.Dish treatment before washing... - Page 6 OPERATION INSTRUCTIONS C.Dish washing 3.Food containers drying 1.Switch on the appliance. 1)After washing is finished and the power switch Press the On/Off switch and the indicators is switched off, open the door. Food containers for drying and normal wash illuminate. will be dry in several minutes.
- Page 7 MAINTENANCE 3)Reassemble it after washing Do not forget to install the seal (white) on the sprayer. If you forget it, the sprayer can not rotate smoothly, that will reduct its capacity. Installation method of the sprayer: Monthly Maintenance Appearance cleaning Clean out dirt from the surface with a piece of wet cloth.
-
Page 8: Troubleshooting And Maintenance Service
* The lock is at "open" position. * Set the lock at "close"position. * Program selecting keys are pressed. * Press to confirm. * The dishwasher is tilted. Abnormal * Chopsticks might block the sprayer. sounds * The sound of spraying water striking the washing box is not abnormal.
