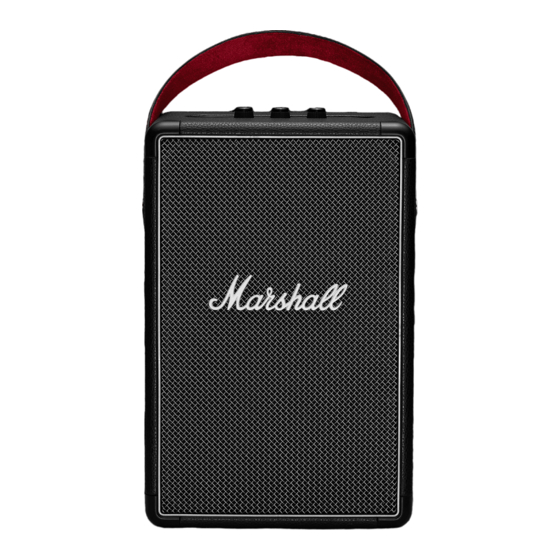

Portable stereo loudspeaker
Hide thumbs Also See for TUFTON:
Table of Contents

Advertisement

Quick Links

Download this manual
TUFTON - PORTABLE STEREO LOUDSPEAKER
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TUFTON and is the answer not in the manual?

Questions and answers

Related Manuals for Marshall Amplification TUFTON

Summary of Contents for Marshall Amplification TUFTON

  • Page 1 TUFTON - PORTABLE STEREO LOUDSPEAKER USER MANUAL...
  • Page 2 LEGAL & TRADEMARK NOTICE • Design of device and packaging are intellectual properties of Zound Industries International AB and Marshall Amplification Plc. © All Rights Reserved. Zound Industries International AB is hereinafter referred to as “Zound Industries” or “manufacturer”. •...

  • Page 3: Table Of Contents

    LEGAL & TRADEMARK NOTICE 002. DISCLAIMER BOX CONTENTS 004. GENERAL DESCRIPTION 005. CHARGING THE INTERNAL BATTERY 007. 008. TURNING THE TUFTON ON/OFF 009. MANY WAYS TO CONNECT 011. CONNECTING VIA AUX INPUT 013. ADJUSTING THE VOLUME/BASS/TREBLE 014. STANDBY MODE 015.
  • Page 4 BOX CONTENTS 006. MARSHALL TUFTON PORTABLE STEREO LOUDSPEAKER 006. QUICK START GUIDE 006. IMPORTANT SAFETY INSTRUCTIONS 006. MAINS LEAD 001. 002. 003. 004. 004.

  • Page 5: General Description

    GENERAL DESCRIPTION 001. Bluetooth BUTTON ® 002. POWER/VOLUME KNOB 003. BASS KNOB 004. TREBLE KNOB 005. BATTERY LEVEL INDICATOR 002. 001. 004. 003. 005. 005.
  • Page 6 GENERAL DESCRIPTION CONTINUED 006. DETACHABLE CARRY STRAP 007. REAR DRIVER 008. BASS PORT 009. BACKPLATE 010. AUX INPUT FOR 3.5 mm JACK 011. MAINS INPUT 012. MAINS LEAD 006. 007. 008. 009. 010. NOTE: DATE CODE AND SERIAL NUMBER STICKER LOCATED HERE.

  • Page 7: Charging The Internal Battery

    IMPORTANT: ALWAYS ENSURE THAT THE MAINS LEAD, POWER JACK AND SPEAKER ARE COMPATIBLE WITH YOUR MAINS SUPPLY AND WALL SOCKET. THE TUFTON IS EQUIPPED WITH AN INTERNAL BATTERY WITH A PLAYING TIME OF MORE THAN 20 HOURS AT MID VOLUME. CHARGING THE BATTERY FROM EMPTY TO FULL CHARGE TAKES APPROXIMATLY 2.5 HOURS.

  • Page 8: Turning The Tufton On/Off

    TURNING THE TUFTON ON/OFF THE VOLUME KNOB DOUBLES AS AN ON/OFF KNOB. 001. TURN THE VOLUME KNOB CLOCKWISE TO THE DESIRED VOLUME AND THE SPEAKER TURNS ON. 002. THE BATTERY LEVEL INDICATOR SHOWS THE BATTERY CHARGE. 003. TURN THE VOLUME KNOB FULLY COUNTER-CLOCKWISE UNTIL YOU HEAR A CLICK TO TURN OFF THE SPEAKER.

  • Page 9: Many Ways To Connect

    MANY WAYS TO CONNECT THERE ARE MANY WAYS TO CONNECT TO YOUR TUFTON. THE CONNECTION CAN BE WIRELESS VIA Bluetooth OR BY USING A CABLE WITH A 3.5 mm STEREO JACK. CAUTION: MAKE SURE THAT THE VOLUME IS SET TO LOW ON BOTH...
  • Page 10 REMAINS LIT WHEN THE UNITS ARE CONNECTED. 004. PRESS PLAY ON YOUR AUDIO DEVICE. TUFTON CAN BE CONNECTED TO TWO Bluetooth DEVICES AT THE SAME TIME. PLAYING A CONNECTED Bluetooth DEVICE WILL MAKE IT THE SELECTED AUDIO SOURCE, PAUSING ANY PREVIOUSLY PLAYED AUDIO ON THE SECOND DEVICE.

  • Page 11: Connecting Via Aux Input

    THE BACK OF THE SPEAKER. 002. CONNECT THE OTHER END OF THE LEAD TO THE AUDIO OUTPUT ON YOUR MUSIC PLAYER. 003. PRESS PLAY ON YOUR AUDIO DEVICE. 001. 002. NOTE: AUDIO CABLES ARE NOT INCLUDED IN THE TUFTON. 011.
  • Page 12 BATTERY LEVEL INDICATOR THE BATTERY LEVEL INDICATOR SHOWS THE REMAINING CHARGE OF THE TUFTON. THE INDICATOR IS DIMMED DURING NORMAL OPERATION TO SAVE BATTERY POWER. TURNING ANY KNOB WILL MAKE THE INDICATOR LIGHT UP. WHEN CHARGING THE BATTERY, THE INDICATOR DISPLAYS THE BATTERY CHARGE WITH A RISING ANIMATION.

  • Page 13: Adjusting The Volume/Bass/Treble

    ADJUSTING THE VOLUME/BASS/TREBLE THE TUFTON INCLUDES THREE KNOBS FOR ADJUSTING THE AUDIO. 001. VOLUME KNOB 002. BASS KNOB 003. TREBLE KNOB 001. 002. 003. 001. 002. 003. NOTE: THE VOLUME KNOB IS ALSO THE ON/OFF SWITCH. 013.

  • Page 14: Standby Mode

    STANDBY MODE IF THE TUFTON IS LEFT UNUSED FOR 10 MINUTES THE SPEAKER SAVES BATTERY CHARGE BY GOING INTO STANDBY. IN THIS MODE ALL INDICATORS ARE OFF AND THE SPEAKER DOES NOT RESPOND TO THE Bluetooth CONNECTION. 001. PUSH THE Bluetooth BUTTON TO WAKE THE SPEAKER FROM STANDBY MODE.

  • Page 15: Performing A Factory Reset

    TO BE SET UP AGAIN. 001. ENSURE THAT THE SPEAKER IS ON. 002. PUSH AND HOLD THE BLUETOOTH BUTTON FOR 7 SECONDS. ALL INDICATORS TURN OFF AND THE SPEAKER RESTARTS. 003. REMOVE FROM YOUR AUDIO DEVICE’S BLUETOOTH LIST  TUFTON  BEFORE PAIRING AGAIN. 015.

  • Page 16: Technical Information

    TECHNICAL INFORMATION ACOUSTIC SPECIFICATION • PORTABLE STEREO LOUDSPEAKER WITH BASS REFLEX SYSTEM • DIGITAL CLASS D AMPLIFIERS:1 X 40 W + 2 X 15 W + 1 X 10 W • 16 mm DOME TWEETER: 1 X • 2" FULL RANGE DRIVERS: 2 X •...

  • Page 17: Troubleshooting

    CAUSE ACTION THE TUFTON DOES The battery is discharged. Connect the mains lead to NOT TURN ON. the Tufton and a working wall socket. THERE IS NO AUDIO The wrong audio source is Ensure that the device is selected. connected to the Tufton.
  • Page 18 There is a strong electric field Items such as microwave surrounding the Tufton. ovens, wireless network adapters, fluorescent lights and gas cookers use the same frequency range as the Bluetooth device.
  • Page 19 Too much bass/treble on the Lower the bass/treble on the speaker. speaker. ERRATIC Interference from another Move the Tufton to another PERFORMANCE electronic device. spot. Turn off or move the interfering electronic device. NOTES: A Bluetooth DEVICE COULD CAUSE AUDIO-RELATED OR TECHNICAL FAULTS, DEPENDING ON USE, IN THE FOLLOWING CASES: •...
  • Page 20 WWW.MARSHALLHEADPHONES.COM 020.
