FOLDING LADDER
Caterpillar D10R Dozer

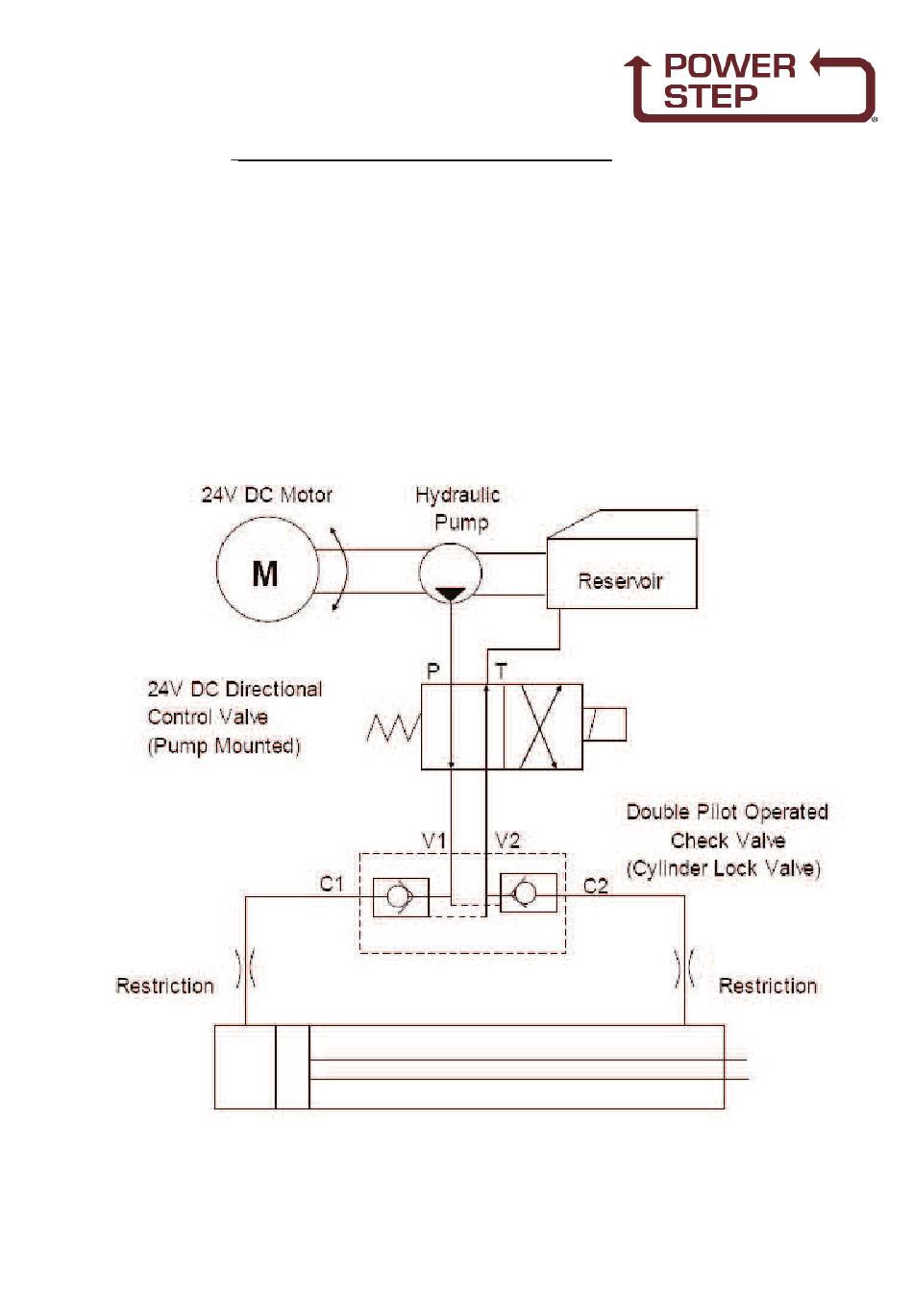

Section 5-8 Hydraulic Cylinder (Valve Diagram)
See also Drawing Page 34
Double Acting Hydraulic System with
directional Control Valve and Cylinder
Lock Valve
0.030"
0.030"
Pg35
PSA-D10R FL+RHW 31-3-14
