Power Step Cat D10R Dozer Manual page 28

FOLDING LADDER
Caterpillar D10R Dozer

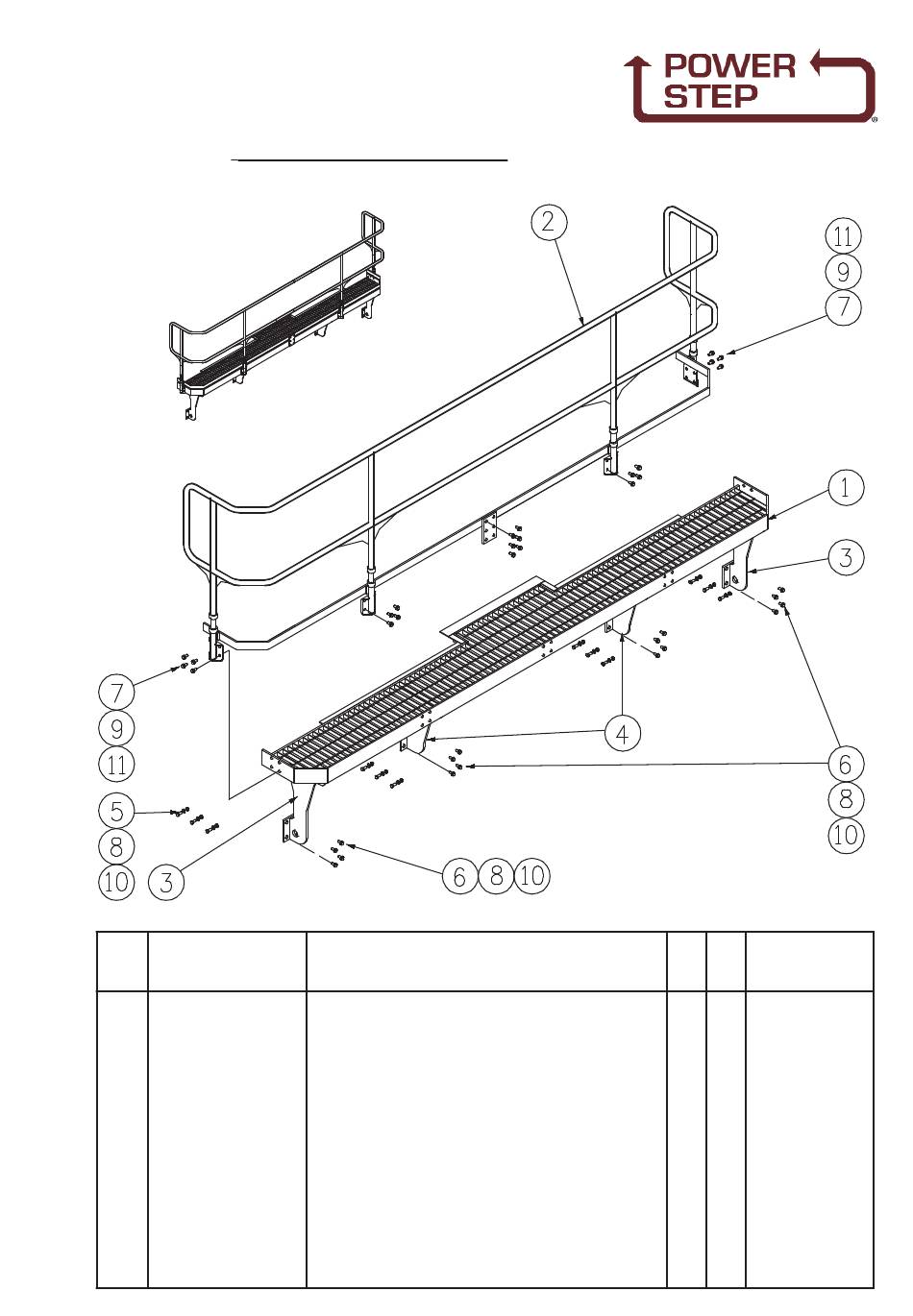

Section 5-4 Landing Assembly - Rear PS- 22051A-NG
Item Part No.
1 PS-22051
2 PS-22052-NG
3 PS-22006-99
4 PS-22006-98
5 CPS-M16X50ZP
6 CPS-M16X35ZP
7 CPS-M12X40ZP
8 CPS-M16NZP
9 CPS-M12NZP
10 CPS-M16WH
11 CPS-M12WH
PSA-D10R FL+RHW 31-3-14
Part Name
LANDING - REAR
HANDRAILS- REAR- NEW GENERATION
WALKWAY MOUNTING-OUTER
WALKWAY MOUNTING-INNER
BOLT-M16 x 50
BOLT-M16 x 35
BOLT-M12 x 40
NUT-M16
NUT-M12
WASHER-HARDENED-M16
WASHER-HARDENED-M12
Upgraded Handrails
Qty
1
1
2
2
12
16
22
12
22
42
44
Pg28
