Power Step Cat D10R Dozer Manual page 34

FOLDING LADDER
Caterpillar D10R Dozer

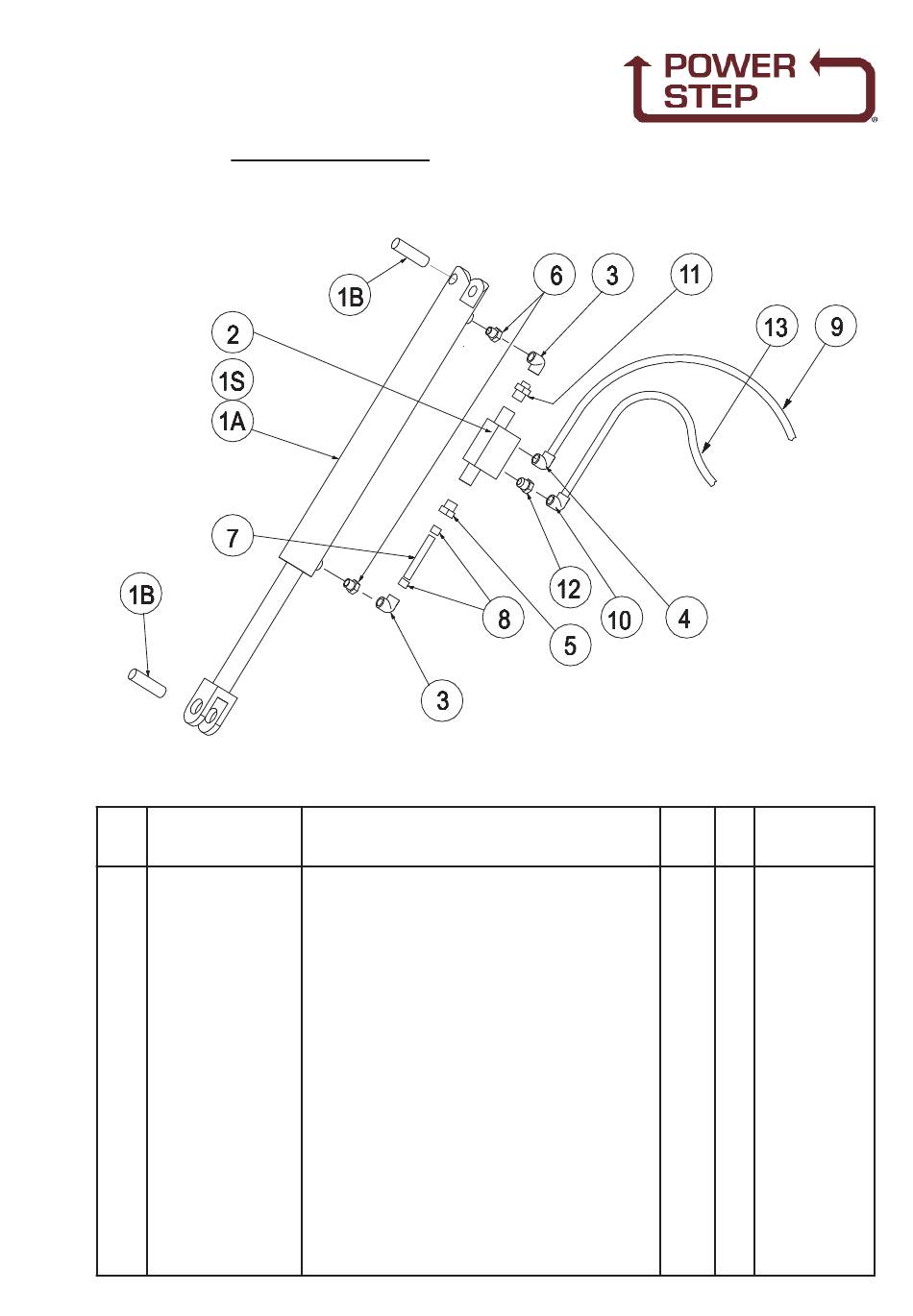

Section 5-8 Hydraulic Cylinder
Incl. Items 1A,1B,2,3,4,5,6,7,8,9,11,12,13.
Item Part No.
1A PS-63014A
1B PS-63014-P
1S PS-63011K
2 PS-63201
3 PS-61158-0.30
4 PS-61154
5 PS-61157
6 PS-61163
7 PS-61160
8 PS-60047
9 PS-60051-2.8
10 PS-61151
11 PS-61145
12 PS-61153
13 PS-60050-2.8
PSA-D10R FL+RHW 31-3-14
Part Name
HYDRAULIC CYLINDER
PIN - CYLINDER- (WITH RETAINER)
SEAL KIT (NOT SHOWN)
VALVE - PILOT OPERATED LOCKING
FITTING - RESTRICTION 90 DEG
FITTING - ELBOW- O RING 1/4BSPPx9/16"JIC
FITTING - O RING 1/4BSPPx 9/16"JIC
REDUCER JIC x BSPP
TUBE
FERRULES/NUTS 2 x each
HOSE- HYDR. (9/6"JIC SWIVEL FITTING 2.8M)
FITTING-ELBOW 7/16"JIC
FITTING-SWIVEL 9/16"JIC
FITTING-O RING 1/4"BSP x 7/16"JIC
HYDR. HOSE 7/16" SWIVEL FITTINGS
Qty
1
2
1
1
2
1
1
2
2
1
1
1
1
1
1
Pg34
