IBM Power System E850C Technical Overview And Introduction page 90

Scenario 3: Dual Virtual I/O Servers sharing a single EXP24S
This scenario assumes a dual Virtual I/O Server with two PCIe SAS adapters #5901 each
and an EXP24S set on mode 2. This configuration allows for up to 12 disks to be attached to
each Virtual I/O Server. Figure 2-29 shows the connection diagram and components of the
solution.
Use
same
port on
the pair

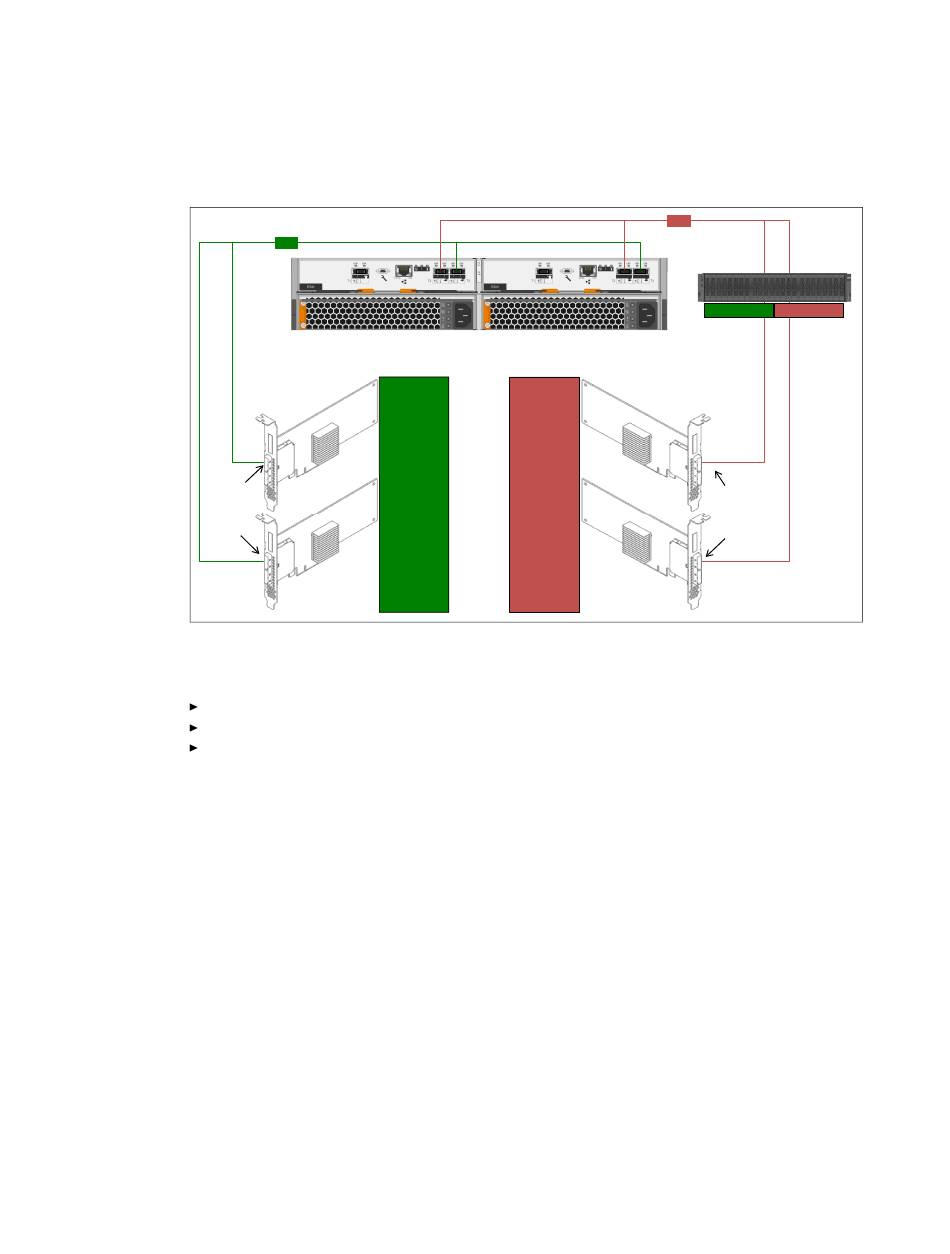

Figure 2-29 Dual Virtual I/O Servers sharing a single EXP24S
The following are the required feature codes for this scenario:
One EXP24S drawer #5887 with indicator feature #9366 (mode 2 with quad #5901)
Four PCIe SAS adapter #5901
Two SAS X cables 3 Gbps with proper length
The ports that are used on the SAS adapters must be the same for both adapters of the pair.
This scenario provides no SSD support.
76
IBM Power System E850C: Technical Overview and Introduction
EXP24S – Mode 2 with 4 x #5901 (config indicator #9366)
Virtual
I/O
#5901 #5901
Server
#1
#5901
2 x SAS X Cables
Virtual
I/O
#5901
Server
#2
#5901
GROUP 1 GROUP 2
Use
same
port on
the pair
