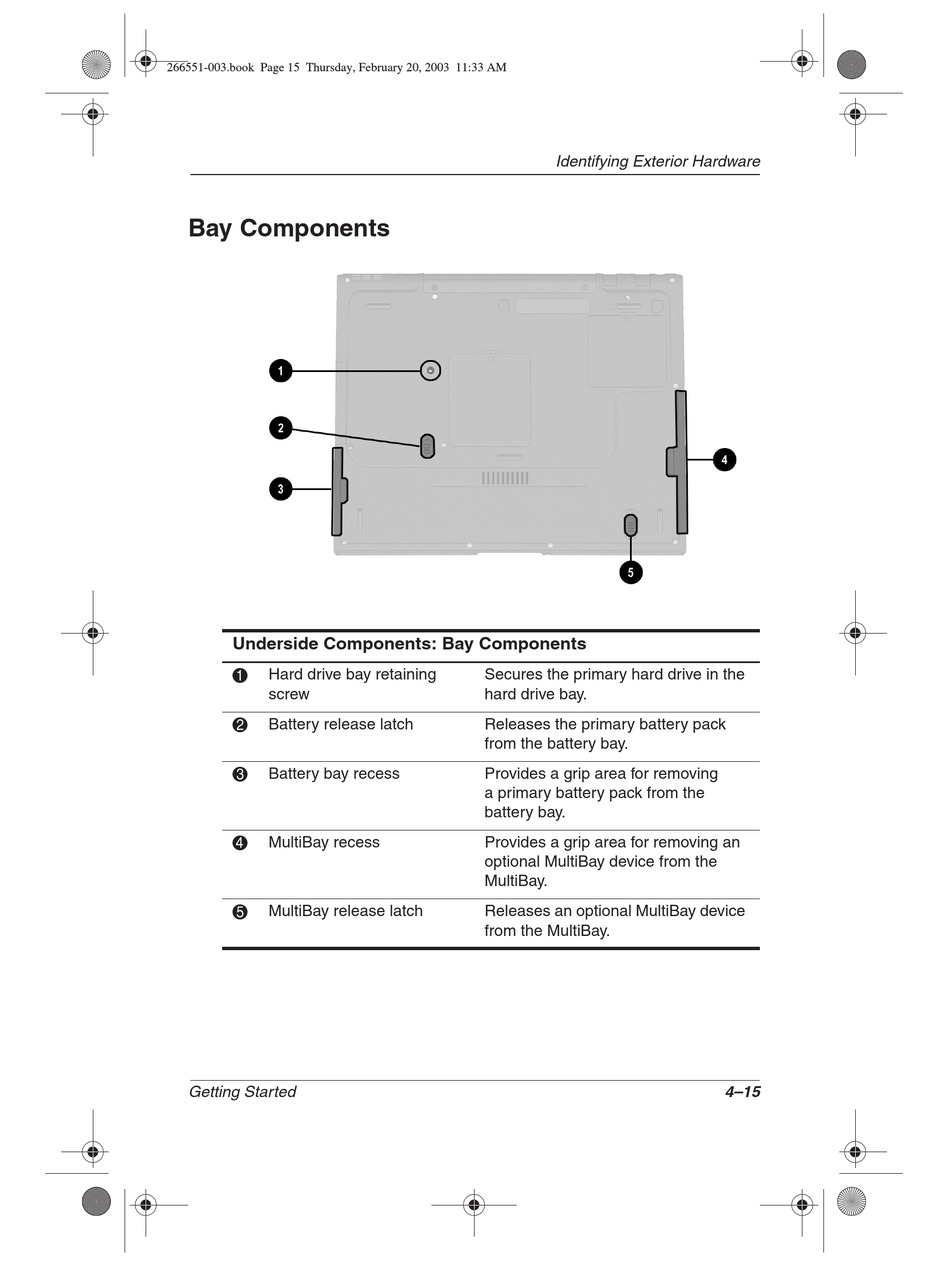

Bay Components
Underside Components: Bay Components
1
Hard drive bay retaining
screw
2
Battery release latch
3
Battery bay recess
4
MultiBay recess
5
MultiBay release latch
Getting Started
Identifying Exterior Hardware
Secures the primary hard drive in the
hard drive bay.
Releases the primary battery pack
from the battery bay.
Provides a grip area for removing
a primary battery pack from the
battery bay.
Provides a grip area for removing an
optional MultiBay device from the
MultiBay.
Releases an optional MultiBay device
from the MultiBay.
4–15
