manuaL DisPLaCement
ContRoL (mDC) m46
vaRiabLe PumP
(continued)
44
Series 40 Axial Piston Pumps
Technical Information
Control options

external control handle requirements

Rotation of the control handle to reach full pump displacement is 20°. Maximum handle
rotation is 25°.There is a neutral deadband of ±1.5° (±3.0° with NSS option). A nominal
control handle torque of 1.2 N•m [11 in•lbf ] is required to begin handle rotation (1°) and
1.7 N•m [15 in•lbf ] is required to reach full stroke (20° handle rotation). An optional high
rate return spring is available which requires 2.5 N•m [22 in•lbf ] and 3.4 N•m [30 in•lbs]
to reach 1° and 20° respectively.The maximum allowable handle input torque is 17 N•m
[150 in•lbf ].

Handle direction

The MDC handle can be configured in either the up or down positions.The up position is
shown on the previous page.The down position is oriented 180° of the up position.

neutral start switch (nss)

This safety feature is an option to prevent start-up when the pump is not in neutral. It
provides an electrical switch contact which is closed when the control handle is in its
neutral (0°) position.The switch contact will open when the control handle is rotated
1.5 to 2° clockwise (CW) or counterclockwise (CCW) from neutral.The switch is rated at
5 amperes inductive load at 12 or 24 Vdc.The NSS should be wired in series with the
engine starting circuit and is intended to verify the neutral position of the pump before
allowing the engine to start.
This switch is available with screw terminals (no connector) or with a Packard Weather-
Pack TM 2-way sealed connector.

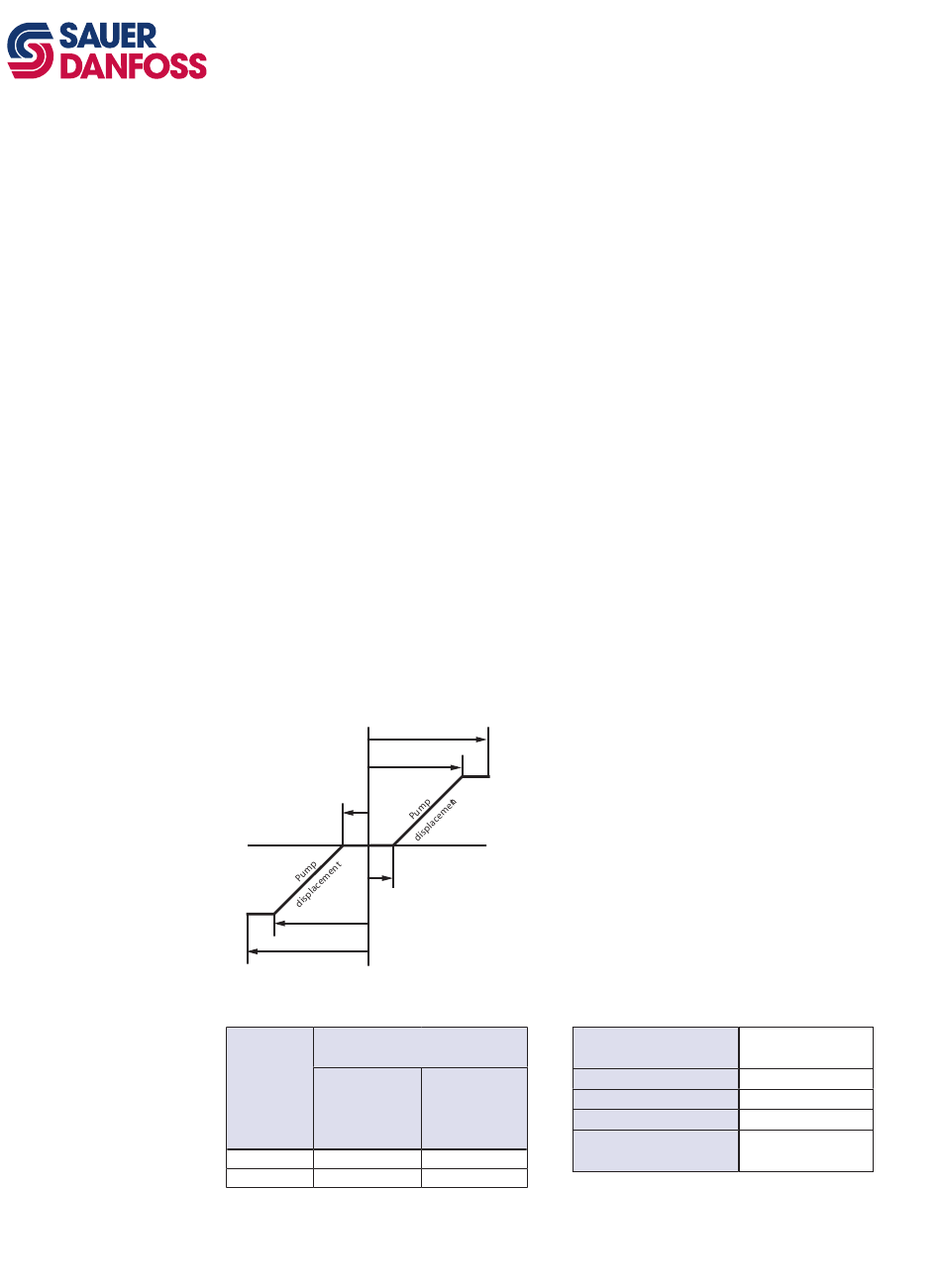

Pump displacement vs control lever rotation
25 Maximum
a
CW
Handle rotation
a
100%
b
25 Maximum
MDC signal required for swashplate position
swashplate position (ref. above
swashplate
movement
Handle begins (point a)
configuration degrees
Standard 1.5°
with NSS 3.0°
520L0635 • Rev EH • June 2009
b
100%
CCW
Handle rotation
NSS specifications
switch position on
chart) neutral
full displacement
neutral play
reached vDC
(pont b) degrees Rated current (a)
Connector type
20°
20°
Closed
± 1.5°~2°
12 or 24
5
Screw or Weather-
TM
Pack
