QTech QT290C Carry User Manual page 14

26

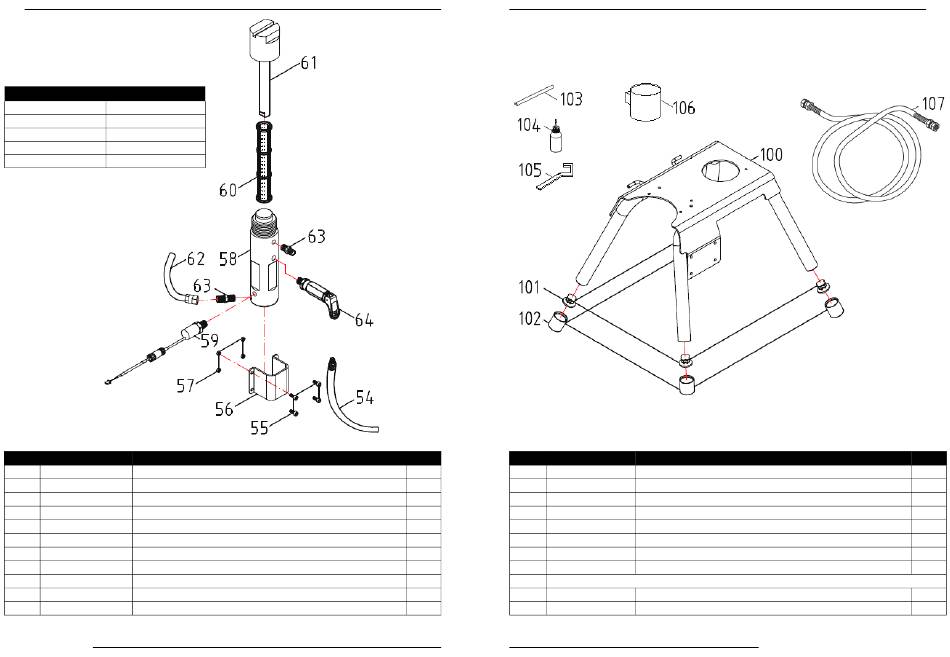

Fluid
Manifold
MANIFOLD FILTER QUICK REFERENCE
MESH/COLOUR CODE
15 mesh / grey QF0571030
60 mesh / black QF0571060
100 mesh / blue QF0571100
200 mesh / red QF0571200
ITEM PRODUCT CODE DESCRIPTION
54 12-190-059 DRAIN TUBE (PT1/8"x1.28M)
55 12-290-061 SOCKET CAP SCREW (M5 x 12)
56 12-070 BRACKET
57 12-143 HEX NUT (M5)
58 12-290C-071 FILTER HOUSING - ALU
59 12-063 PRESSURE TRANSDUCER (110V&220V)
60 Quick ref table MANIFOLD FILTER
61 12-290C-070 FILTER CAP - ALU
62 12-290-085 HIGH PRESSURE HOSE (1/4"-18UNF)
63 12-003 OUTPUT NIPPLE
64 12-290-075 PRIMING VALVE
QTechSpray.com
Frame
QTY ITEM PRODUCT CODE DESCRIPTION
1 100 12-290C-021
8 101 12-290C-022
1 102 12-290C-023
4 103 12-001
1 104 Q400-005
1 105 12-290-300
1 106 12-290C-024
1 107 61415EETD
1 NOT SHOWN IN DIAGRAM
2 100045R
1 503-150
FRAME
END CAP - INNER
END CAP - OUTER
PACKING NUT TOMMY BAR
Q-LUBE PISTON LUBRICANT
PUMP BODY WRENCH
PAINT DRIP CUP
TOUGHFLOW HOSE 1/4" x 15M
SPRAY GUN / HOSE WRENCH
SPRAY GUN c/w GUARD & 517 TIP
QTech QT290C Carry Airless Sprayer
27
QTY
1
4
4
1
1
1
1
1
2
1
