Fluid Pump - QTech QT290C Carry User Manual

22

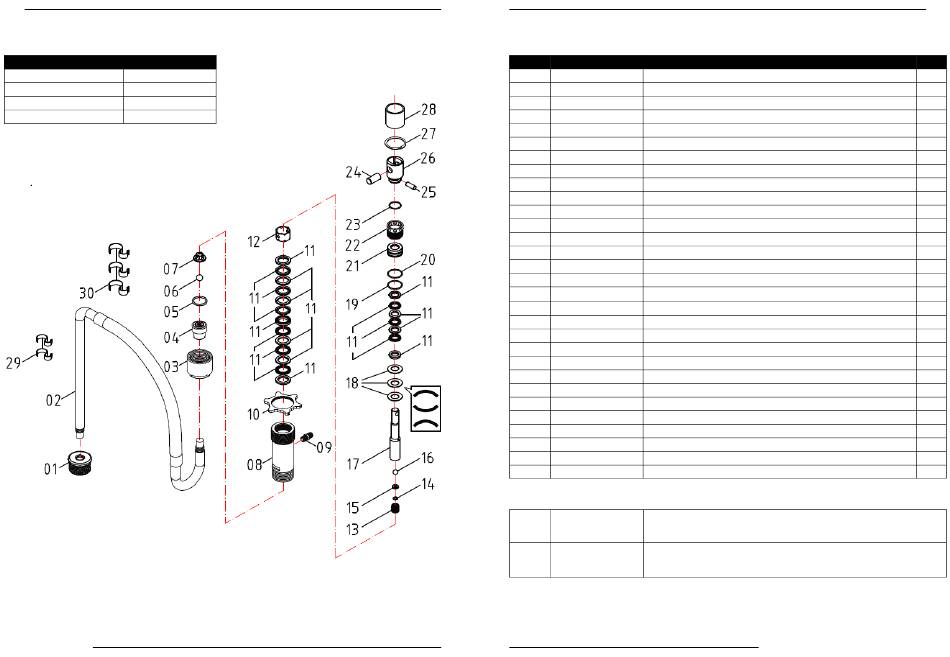

Fluid Pump

SUCTION FILTER QUICK REFERENCE
MESH/THREAD PRODUCT CODE
15 mesh / 1/2" thread QF0535015B
30 mesh / 1/2" thread QF0535030B
60 mesh / 1/2" thread QF0535060B
QTechSpray.com
Fluid Pump
ITEM PRODUCT CODE DESCRIPTION
01 Quick ref table SUCTION FILTER
02 12-290C-002 SUCTION TUBE
03 12-290C-001 GLAND NUT
04 12-290C-003 SUCTION LOWER SEAT
05 12-005 O-RING (Ø28.4xØ35.3x3.5)
06 12-006 LOWER CHECK BALL (Ø12.7)
07 12-007 BALL CAGE
08 12-290-010B PUMP HOUSING
09 12-003 OUTPUT NIPPLE
10 12-290-011B RETAINING NUT
11 12-002 PACKING KIT COMPLETE, INCLUDES ITEMS 05, 06, 11
12 12-008 PACKING SPACER
13 12-015 BALL SEAT FASTENER
14 12-011 O-RING (Ø9 x Ø13 x 2)
15 12-010 BALL SEAT (Ø4xØ13.8x4)
16 12-012 UPPER CHECK BALL (Ø6.35)
17 12-290-022 COMPLETE DISPLACEMENT PISTON (see below)
18 12-009 DISC SPRING (Ø18xØ34.7x1)
19 12-014 O-RING - VITON
20 12-013 O-RING - TEFLON
21 12-019 SEAL SEAT (Ø27xØ35)
22 12-018 PACKING NUT (M38xP1.5)
23 12-290-032 RETAINING RING (Ø1.2xØ24.8)
24 12-290-034 DRIVE WRIST PIN (Ø16x32)
25 12-290-033 PUMP WRIST PIN (Ø9.5x25)
26 12-290-035 DRIVE PISTON
27 12-290-038 INTERNAL CIRCLIP
28 12-290-039 BUSHING (Ø38xØ44x43)
29 12-190-094 TUBE HOLDER (Ø11/Ø22)
30 12-290C-004 TUBE HOLDER (Ø11/Ø28)
Fluid Pump | ready to fit assemblies
DISPLACEMENT PISTON COMPLETE
12-290-022
INCLUDES ITEMS 13, 14, 15, 16, 17
FLUID PUMP COMPLETE,
12-290C-500 INCLUDES ITEMS 03, 07, 08, 09, 10, 11, 12, 13, 14, 15, 16, 17,
18, 19, 20, 21, 22
23
QTY
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
3
1
1
1
1
1
1
1
1
1
1
2
3
QTech QT290C Carry Airless Sprayer
