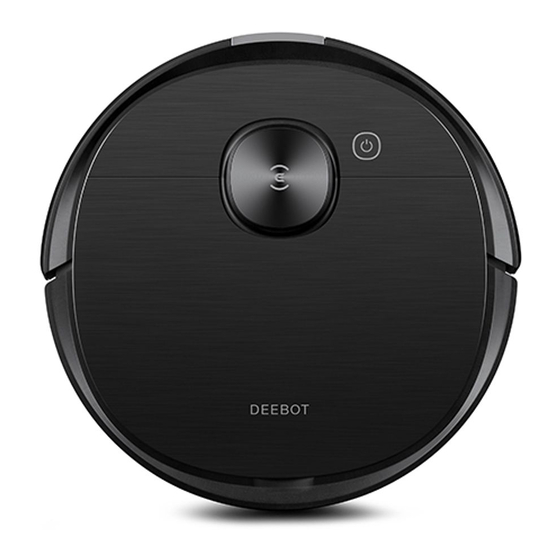

ECOVACS DEEBOT OZMO T8 AIVI Instruction Manual

Hide thumbs Also See for DEEBOT OZMO T8 AIVI:

Advertisement

Quick Links

Instruction Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the DEEBOT OZMO T8 AIVI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ECOVACS DEEBOT OZMO T8 AIVI

Summary of Contents for ECOVACS DEEBOT OZMO T8 AIVI

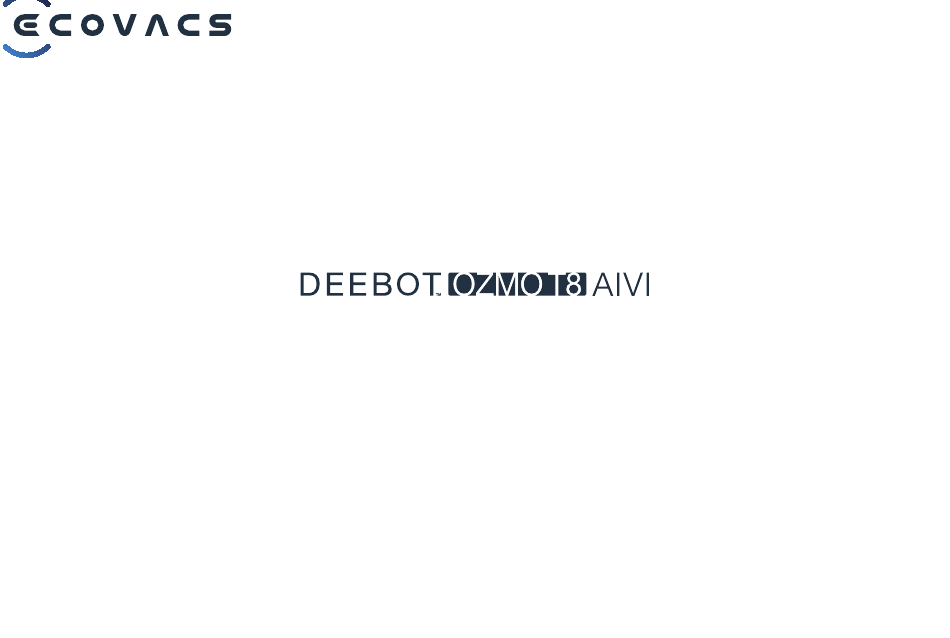

  • Page 1 Instruction Manual...
  • Page 2 Customer Service Center where a technician will be able to help you with your specific problem or question. www.ecovacs.com For more information, please visit the ECOVACS ROBOTICS official website: The company reserves the right to make technological and/or design changes to this product for continuous improvement.

  • Page 3: Table Of Contents

    Contents 1. Important Safety Instructions ............................4 2. Package Contents ................................8 3. Operating and Programming ............................12 4. Maintenance ..................................20 5. Indicator Light ..................................27 6. Troubleshooting ................................28 7. Technical Specifications ..............................33...

  • Page 4: Important Safety Instructions

    1. Important Safety Instructions 3. If there is a drop off in the cleaning area due to a step or stairs, you should operate the IMPORTANT SAFETY INSTRUCTIONS Appliance to ensure that it can detect the step When using an electrical Appliance, basic without falling over the edge.
  • Page 5 parts of body away from any openings and or corners. Do not run Appliance over the moving parts. power cord. Keep power cord away from hot 12. Do not operate the Appliance in a room surfaces. where an infant or child is sleeping. 19.
  • Page 6 29. The Appliance must be used in accordance with the directions in this Instruction Manual. ECOVACS ROBOTICS cannot be held liable or responsible for any damages or injuries caused by improper use. 30. The robot contains batteries that are only replaceable by skilled persons.
  • Page 7 ON. For EU Declaration of Conformity information, visit Place the robot on the Docking Station making https://www.ecovacs.com/global/compliance sure the Charging Contacts on DEEBOT and the Docking Station Pins make a connection. Press and hold the AUTO Mode Button on the robot for 20 seconds until DEEBOT emits 3 beeps.

  • Page 8: Package Contents

    2. Package Contents/2.1 Package Contents High Efficiency Filter and Robot Docking Station Instruction Manual Side Brushes Sponge Filter OZMO Pro Mopping Pad Plate Washable Mopping Pad Disposable Mopping Pads Oscillating System Note: Figures and illustrations are for reference only and may differ from actual product appearance. Product design and specifications are subject to changes without notice.
  • Page 9 2. Package Contents/2.2 Product Diagram Robot RESET Button Top Cover AUTO Mode Button Wi-Fi Status Indicator AIVI Visual Detection Sensor Power Switch Multi-function Cleaning Tool Sponge Filter TrueMapping Dust Bin Handle Distance Sensor Release Button Filter Net Anti-collision Sensors High Efficiency Filter and Bumper...
  • Page 10 Bottom View Anti-drop Sensor Charging Contacts Carpet Detection Universal Wheel Sensor Side Brush Main Brush Main Brush Driving Wheel Release Button Water Outlet Anti-drop Sensors Reservoir...
  • Page 11 OZMO Pro Oscillating System Docking Station Water Inlet Reservoir Reservoir Release Button Docking Station Pins Disposable Mopping Pad Power Cord OZMO Mopping System Water Inlet Cover Water Inlet Reservoir Release Button Mopping Pad Plate Washable Mopping Pad...

  • Page 12: Operating And Programming

    3. Operating and Programming/3.1 Notes Before Cleaning Tidy up the area to be cleaned by putting During the first use, make sure each room door It may be necessary to place a physical furniture, such as chairs, in their proper place. is open to help DEEBOT fully explore your house.
  • Page 13 3. Operating and Programming/3.2 Quick Start Remove Protective Strips and Films Assemble Docking Station Install Side Brushes Click...
  • Page 14 ( 4 . 9 2 ' Power ON * You can also purchase an Auto-Empty Station that automatically empties your DEEBOT's dustbin. Explore more accessories at www.ecovacs.com/global. Note: I = ON, = OFF. DEEBOT cannot be charged when being powered OFF.
  • Page 15 3. Operating and Programming/3.4 ECOVACS HOME App To enjoy all available features, it is recommended to control your DEEBOT via the ECOVACS HOME app. Before you start, make sure that: Wi-Fi Indicator Light • Your mobile phone is connected to a Wi-Fi network.
  • Page 16 3. Operating and Programming/3.5 Operating DEEBOT During the first cleaning, please supervise DEEBOT and assist it should there be a problem. Start Pause Return to Charge Pressing for 3 seconds to send DEEBOT back to the Docking Station. Note: The robot’s Control Panel stops glowing after the robot is paused for a few minutes.
  • Page 17 3. Operating and Programming/3.6 OZMO Pro Oscillating System Note: 1. With electric oscillating mopping up to 480 times per minute, OZMO Pro is applicable for areas of highly concentrated dirt or dust. 2. Before installing OZMO Pro, please make sure the contacts are thoroughly dry. 3.
  • Page 18 3. Operating and Programming/ Install OZMO Pro 3.7 OZMO Mopping System Note: To prolong the service life of the reservoir, it is recommended to use purified water or softened water for OZMO mopping system. Start Mopping...
  • Page 19 Note: When DEEBOT is mopping, DEEBOT automatically detects the carpet and keeps away from it. If you need to clean the carpet, please uninstall the Mopping Pad Plate first. Click * When attaching the Disposable Mopping Pad, make sure the fluffy side is attached to the plate, and the dotted side faces out.

  • Page 20: Maintenance

    Before performing cleaning and maintenance tasks on DEEBOT, turn the robot OFF and unplug the Docking Station. A multi-function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges. Note: ECOVACS manufactures various replacement parts and fittings. Please contact Customer Service for more information on replacement parts.
  • Page 21 Maintenance/4.2 OZMO Pro Oscillating System and OZMO Mopping System OZMO Pro Oscillating System OZMO Mopping System * After DEEBOT finishes mopping, please empty the reservoir. * For a proper maintenance, wipe OZMO Pro with a clean dry cloth. Do not rinse OZMO Pro into water.
  • Page 22 Washable Mopping Pad Disposable Mopping Pad...
  • Page 23 Maintenance/4.3 Dust Bin and Filters...
  • Page 24 Maintenance/4.4 Main Brush and Side Brushes Main Brush Side Brushes...
  • Page 25 Maintenance/4.5 Other Components Note: Before cleaning the robot’s Charging Contacts and Docking Station Pins, turn the robot OFF and unplug the Docking Station. Clean the AIVI Visual Detection Sensor and TrueMapping Distance Sensor with a clean cloth, and avoid using any detergent or cleaning spray.
  • Page 26 Maintenance/4.6 Storage If DEEBOT will not be used for a while, fully charge DEEBOT and power OFF before storage. Charge DEEBOT every 1.5 month to prevent battery drain. Note: When DEEBOT is not cleaning, it is recommended to keep DEEBOT powered ON and charging.

  • Page 27: Indicator Light

    5. Indicator Light DEEBOT will tell you something is wrong with an indicator light and voice report. More detailed support is available through the ECOVACS HOME and online website. Indicator Light Scenario The robot is cleaning AUTO Mode Button glows a solid WHITE...

  • Page 28: Troubleshooting

    DEEBOT gets stuck while etc.). working and stops. DEEBOT might be stuck under furniture with Please set a physical barrier, or set a Virtual Boundary in an entrance of similar height. the ECOVACS Home App.
  • Page 29 Possible Causes Solutions Working time varies according to floor surface, room complexity and the Cleaning Turn on Continuous Cleaning function in ECOVACS Mode selected. When the battery gets low, HOME App. DEEBOT will automatically resume the DEEBOT automatically switches to Recharge...
  • Page 30 Malfunction Possible Causes Solutions Remove power cords and small objects from the floor The cleaning cycle is interfered by small to ensure cleaning efficiency. DEEBOT will automatically objects or barriers on the floor. clean the area missed, please avoid moving DEEBOT manually or block the path during the cleaning cycle.
  • Page 31 Enter the correct home Wi-Fi username and password. entered. Incorrect App installed. Please download and install ECOVACS Home App. DEEBOT is not within range of your home Make sure DEEBOT is within range of your home Wi-Fi DEEBOT is not able to connect Wi-Fi signal.
  • Page 32 Troubleshooting/6.2 Wi-Fi Connection Before Wi-Fi setup, make sure DEEBOT, mobile phone, and Wi-Fi network meet the following requirements. DEEBOT and Mobile Phone Requirements • DEEBOT is fully charged and the power switch of DEEBOT is turned on. • Wi-Fi status light slowly flashes. •...

  • Page 33: Technical Specifications

    7. Technical Specifications Model DBX11-11 Rated Input Docking Station Model CH1918 (Sold Separately) CH1822 50 - 60Hz For European Union 220-240V 50 - 60Hz Only 0.3A 100-240V Rated Input(Charging) Rated Input 50 - 60Hz 0.5A 220V For Russia Only 0.3A Rated Output Rated Output 1000W...
  • Page 34 Ecovacs Robotics Co., Ltd. No.518 Songwei Road, Wusongjiang Industry Park, Guoxiang Street, 451-1913-3106 Wuzhong District, Suzhou, Jiangsu, China.
