Clas Ohlson 36-2824 Quick Start Manual

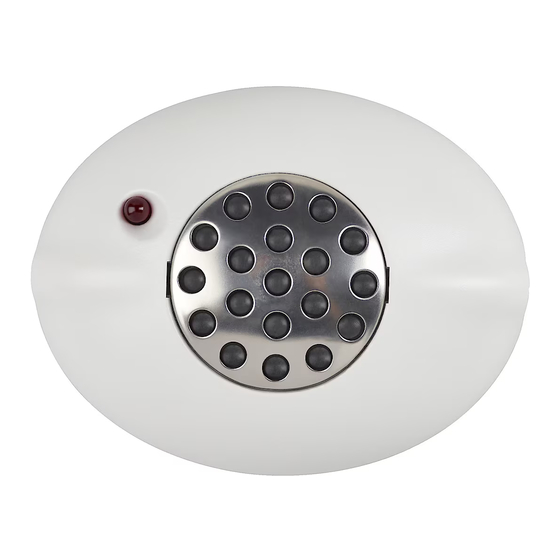

Floor Dimmer Switch
Art.no 36-2824
Please read the entire instruction manual before use and save it for future reference. We reserve the right for any errors in text or images and for
making any necessary technical changes to this document. If you should have any questions concerning technical problems please contact our
Customer Services.
Safety
Note!
This dimmer switch is only intended for use with 230 V incandescent
and halogen light bulbs.
Installation
The dimmer switch should be fitted on the lead between the light
fitting and the plug. In order to do this, you will need to cut the lead at
the point where you want to fit the dimmer switch.
1. Remove the top by unscrewing the screws in the bottom of
the dimmer and then lifting the top straight up.
2. Connect the wires in the ends of the lead from the light fitting
and plug to the terminals on the dimmer switch as shown in
the picture.
Light bulb
Note!
If the light's lead also has an earth wire (yellow/green), this should be
connected to the earth terminal on the dimmer switch.
In accordance with current safety regulations the earth wire must be at
least 8 mm longer than the live and neutral wires.
3. Tighten both of the strain relief clamps, replace the top cover
and screw in the two screws. Make sure that the LED ends up in
the right hole in the top cover and doesn't get bent over.
GREAT BRITAIN
customer service tel: 0845 300 9799 e-mail: customerservice@clasohlson.co.uk
internet: www.clasohlson.com/uk
Use
Adjust the lighting by pressing gently on the top of the dimmer switch.
If the lamp has its own on/off switch, remember to always have it in
the ON position.
Turning the lamp on and off
Press the top of the dimmer switch once quickly to turn the lamp on or
off. The light will come on with the same intensity as when it was last used.
230 V AC, 50 Hz
Adjusting the intensity of the lamp
Press and hold the top of the dimmer switch down. Release the top of
the dimmer switch when the desired light has been reached.
Care and Maintenance
Replacing the fuse
Note!
Always unplug from the wall before replacing the fuse.
Find the fuse on the fuse's circuit board. Carefully remove the blown
fuse and replace it with a new fuse of the same rating (250 V, T1.6 A).
Cleaning
Use a soft damp cloth to wipe the product.
Note!
Always unplug the device from the wall socket before cleaning.
Disposal
Follow local ordinances when disposing of this product. If you are
unsure about how to dispose of this product contact your municipality.
Specifications
For use with incandescent
and halogen bulbs
Load
Size
Colour
230 V AC, 50 Hz
40–300 W
95 × 75 mm
White
