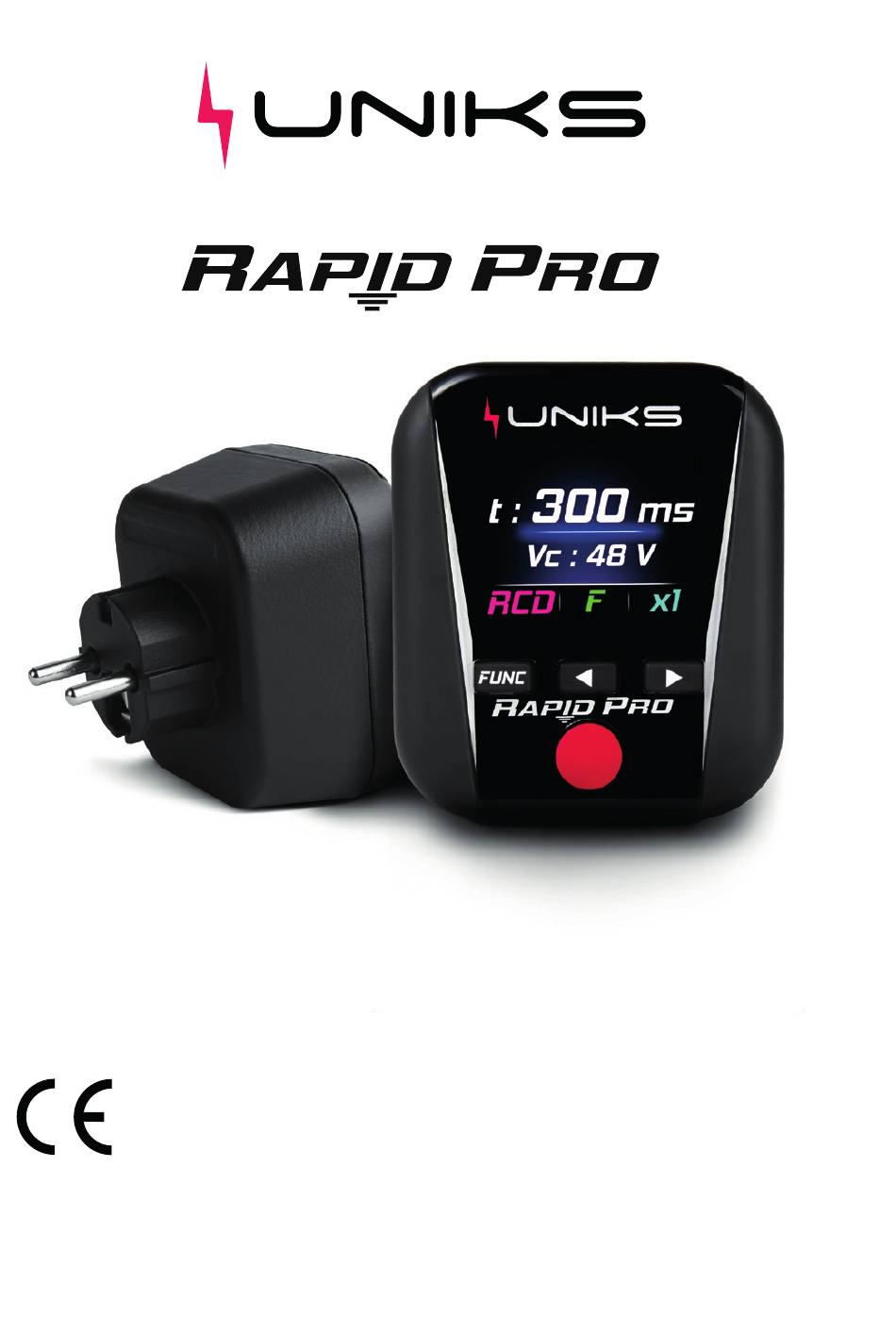

- Page 1 USER MANUAL POCKET MULTIFUNCTION TESTER © Copyright UNIKS Srl Ver EN 3.0 - 04/07/2022...
-
Page 3: Table Of Contents
PRODUCTS REGISTRATION REGISTER YOUR PRODUCT NOW ON : https://my.uniks.it Registering the RAPID PRO will allow you to access your RESERVED AREA to download the measurements and create REPORTS. SUMMARY INTRODUCTION pag.4 GENERAL DESCRIPTION pag.4 SAFETY and WARNINGS pag.5 PRODUCT DESCRIPTION pag.6... -
Page 4: Introduction
INTRODUCTION Congratulation for purchase Rapid Pro, the first multifunction tester in the shape of a socket tester.It allow the test of electrical system according the IEC standard as the common installation tester do.In addition to the TRMS Voltage measurement and the Socket Tester features allow Installation test to be performed from anyone ( RCD, LOOP L-PE ) in according to IEC61557-3 and IEC61557-6. -
Page 5: General Description
GENERAL DESCRIPTION Rapid Pro execute the following test: VOLT and Socket Test (Correct wiring of Plug) Voltage measurement L-N , TRMS Residual Current (RCD) type A, AC and F also in AUTO mode with CONTACT VOLTAGE measurement Z LOOP (Global earth resistance in TT system and impedance L-Pe... -
Page 6: Product Description
PRODUCT DESCRIPTION Legend: Antiscratch glass Display TFT 1,77” Function TEST subfeatures selection subfeatures selection SCHUKO plug Descrizione dei tasti Function button allow to select the measure. Display shows the following features: Socket Test / VOLT - RCD - LOOP - Harmonics / Memory. Arrow button ,allow to select subparameters for test and read the memory or to analyze the harmonics value up to 49th. -
Page 7: Volt E Socket Test
VOLT e SOCKET TEST This feature measure Voltage between phase and neutral and test the socket wiring in according to local requirement. Operation Plug the instruments in the socket and select Voltage function with button.Voltage between Phase and Neutral will be shown at display if socket is correctly wired and voltage contact is <50V (Fig 1) error due to the uncorrect wiring is shown(Fig 2 e 3). -
Page 8: Rcd (Residual Current Device)
RCD (RESIDUAL CURRENT DEVICE) This feature allow test of RCD according EC/EN 61557-6 with tripping time and Voltage contact. Test Current of 30 mA is injected through the ground for type A , AC and F. Test Mode: • x1 I∆n –Test with 30mA •... - Page 9 RCD (RESIDUAL CURRENT DEVICE) AUTO function Plug the instrument in the socket and press FUNC for select RCD function. Press arrow button for select type of RCD and button for select function AUTO . Start measuring by pressing the button,The instruments will execute all test in sequence when you re-arm the RCD and voltage is on.
-
Page 10: Loop
Low Test with 6mA. Use this setup if during the test the RCD trip due to the presence of leackage current in the electric system under test. LOOP FUNCTION Plug Rapid PRO in the socket and press FUNC button for select LOOP. Press button for select TT or TN and press button for select TEST STD or LOW. -
Page 11: Loop Tn - Tt
LOOP TT e TN Z line - PE impedance measurement in TT system Z: Global Earth Resistance Vc: Contact Voltage NOTA: Limit for earth ground resistance is defined as: Rt ≤ Vc Vc:Contact Voltage Limit (50V o 25V) I∆n I∆n: Nominal RCD current TT SYSTEM TERRA TERRA... - Page 12 Show VOLTAGE value TRMS of selected harmonics (red), his frequen- cy and percentage (%) compared to h1 Fundamental 50Hz (Fig. 11) HARMONICS FUNCTION Plug Rapid Pro in to the socket and choose Har function by pressing FUNC button. Press for select harmonics higher or button...
-
Page 13: Mem Memory / Report
MEM Memory / REPORT The instruments automatically save RCD and LOOP measurement in MEM area. Press FUNC button for enter MEM page. Press button or for move through the saved data or press simultaneously to clear the memory. It will be possible to store 64 consecutive measures. By pressing the RED button you can generate a QR CODE for the generation of REPORTS (Fig. -
Page 14: Technical Data
TECHNICAL DATA IEC/EN61557-6 Voltage L-Pe 190÷265V - Frequency 50Hz Type(RCD) RISOLUZIONE PRECISIONE AC , A , F <0.1I∆n (0.0% + 5%I∆n) Time 0.1 ms (2 ms + 2 dgt) LOOP (Fault Loop Impedance) IEC/EN61557-3 Voltage L-Pe 190÷265V - Frequency 50Hz Std Current test 15mA RANGE (Ω) Resolution (Ω) - Page 15 TECHNICAL SPECIFICATION INPUT: Overvoltage Category: CAT III 300V verso terra Max Voltage input: 265V AC INPUT: Measures Guidelines: IEC/EN61557-3 IEC/EN61557-6 Safety Guidelines : IEC/EN61010-1 IEC/EN61010-2-030 EMC: IEC/EN61326-1 Display and Memory: Display: TFT 1,77” Displau Memory Slot: Enviromental Specification: Reference Temperature: 23°C ÷...
- Page 16 ADAPTERS The Rapid Pro can be connected to various adapters on the market such as exten- sion cords or adapters for sockets other than the Schuko (Fig. 14). The use of an extension cord can help the operator perform LOOP or RCD measure- ments in environments where it is difficult to reach the socket for testing.
-
Page 17: Warranty
WARRANTY • This tool is guaranteed against any defect in material and workmanship, in accordance with the general conditions of sale. During the warranty period, defective parts can be replaced, but the manufacturer reserves the right to repair or replace the product. If the instrument must be returned to the after-sales service or to a retailer, the transport is charged to the Customer. -
Page 18: Assistance
ASSISTANCE If the instrument does not work properly, before contacting the Service Depart- ment, check the status of the socket and the casing. If the instrument continues to malfunction, check if the procedure for using it complies with what is indicated in this manual. - Page 20 Uniks Srl Via Vittori 57, 48018 Faenza (RA) – Italia Phone +39 0546 623002 Fax +39 0546 6236691 P.IVA 02627000397 REA: RA - 218481 mail info@uniks.it www.uniks.it...
