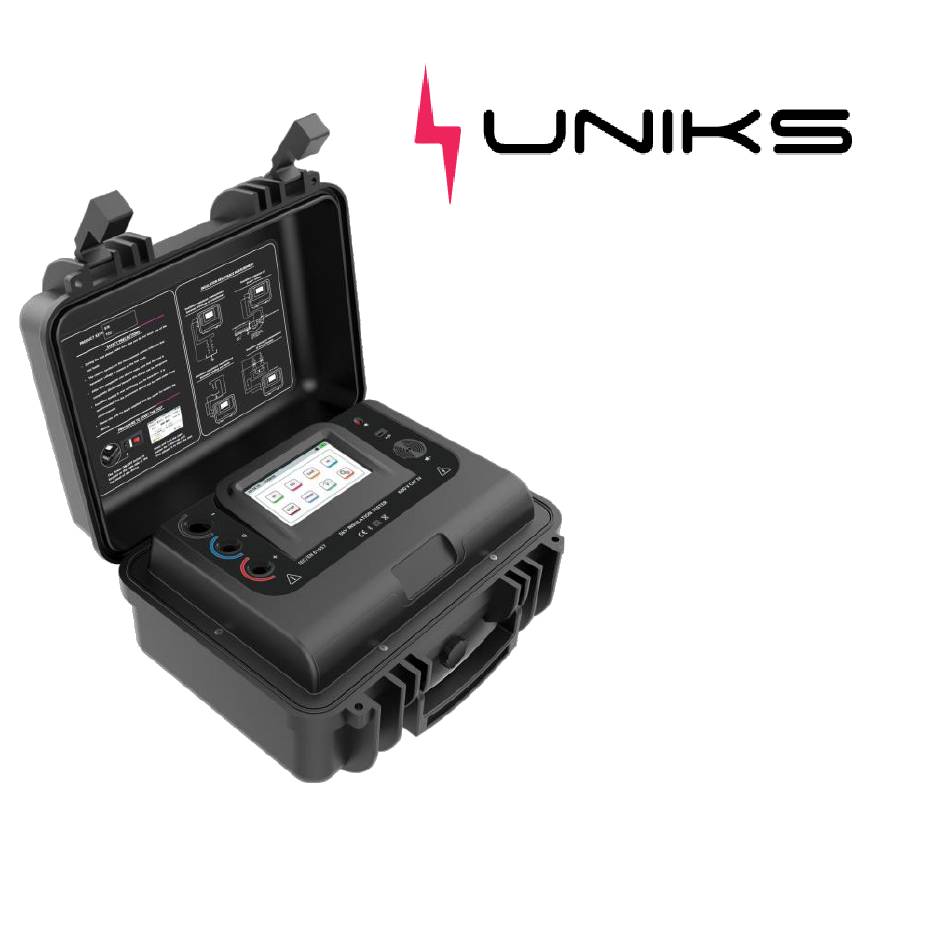

- Page 1 ISO-5 5 kV Digital Insulation Tester ISO-10 10 kV Digital Insulation Tester Operating Manual...
-
Page 3: Table Of Contents
CHAPTER 1 GENERAL ASPECTS ................ 5 1.1 Features of the meter ................... 5 CHAPTER 2 ...................... 7 SYMBOLS ON THE INSTRUMENT: ............... 8 CHAPTER 3 ...................... 9 BASIC INDICATIONS AND THEIR MEANING .......... 10 CHAPTER 4 ....................11 CHAPTER 5 MEASUREMENT MODES OF THE METER ........13 5.1 IR Mode: .................... - Page 4 9.4 Brightness Settings: .................. 42 9.5 Short Circuit Settings: ................43 9.6 Go No Go Settings: ................... 44 9.7 Other Settings: ..................45 CHAPTER 10 METER SPECIFICATIONS............47 CHAPTER 11 ....................51 11.1 Battery charging process: ..............51 11.2 Battery alarms: ................. 51 CHAPTER 12 ....................
-
Page 5: Chapter 1 General Aspects
CHAPTER 1 GENERAL ASPECTS 1.1 Features of the meter Selectable Test Voltage up to 5000 V (ISO 5 model) o 10.000V (ISO 10 ⚫ model): Test voltages can be set to any desired value from 100V to 5000V ISO 5 Model o 100V to 10.000V ISO 10 model with steps of 10V up to 1000V and steps of 25V above 1000V. - Page 6 Go- NoGo Function: User can set an insulation resistance limit below which user will be ⚫ alarmed about the quality of insulation. Insulation Graph Display: Insulation Resistance trend can be displayed over the time in ⚫ graphical form. Communication Interface: Bluetooth 2.0 & 4.0 Class II and electrically isolated USB 2.0 ⚫...
-
Page 7: Chapter 2
CHAPTER 2 USER AND BATTERY SAFETY USER SAFETY: Following safety measures should be taken while using the instrument: The circuit under test should be turned off /denergized(dead), all its terminals should be isolated, the circuit should also be discharged and checked before the insulation is tested. ... -
Page 8: Symbols On The Instrument
Never short circuit the battery pack. In case the battery starts leaking, do not allow the liquid to come in contact with skin or eyes. If by mistake you make contact, wash the affected area with water and contact doctor. -
Page 9: Chapter 3
CHAPTER 3 BASIC COMPONENTS AND INDICATIONS IN THE METER 3.1 LEGENDS AND THEIR MEANING 1. Negative(-) terminal 2. Guard(G) terminal 3. Positive(+) terminal 4. LED indicating presence of mains 5. USB slot for device connection 4 6. Speaker 7. Protective cover 8. -
Page 10: Basic Indications And Their Meaning
3.2 BASIC INDICATIONS AND THEIR MEANING Mains Breakdown mode Guard fuse blown connected Battery Burn mode USB mode charging Bluetooth mode Pre-alarm for Danger High Voltage at battery charging leads Speaker mute Speaker unmute Current limit warning Battery fully charged indication... -
Page 11: Chapter 4
CHAPTER 4 CONNECTION OF TEST LEADS TO METER The meter has 3 probes guard, positive and negative. Each probe consists of 2 ends. One of these ends is the probe handle which has to be connected to the meter and the other end will depend upon the type of accessories ordered. - Page 12 Then push the probes into the meter and rotate the probe rotor as shown below so that ⚫ the probe gets locked to the meter. NOTE: Do not disconnect the test leads of the meter till the test has been completed and the DUT has been discharged as the leads can cause electrical hazard to the user when the test is being conducted or if the DUT is still charged.
-
Page 13: Chapter 5 Measurement Modes Of The Meter
CHAPTER 5 MEASUREMENT MODES OF THE METER 5.1 IR Mode: This mode is used to measure the insulation resistance of a device for a fixed amount of time. The default time of this test is 45 sec. The steps to do a test in the IR mode are as follows To enter the IR mode press icon on the home screen. - Page 14 You can also change the filter settings in this window (hardware and software filter). ⚫ These filters are very useful in noisy environments. The software filter can be selected from the drop down list which will appear after pressing the software filter button. You can also set the test time in this mode by pressing the second or minute button.
-
Page 15: Dar Mode
Because there are a lot of parameters to be displayed they have been divided into three ⚫ sub screens which can be scrolled using the scrolling arrows. Figure shows the sequence of the screens along with the parameters displayed on the corresponding screen. SCREEN 1 VOLTAGE AT LEADS... - Page 16 DAR = IR60s / Ir30s DAR of less than 1 indicates that the insulation is in poor condition, DAR of 1-1.4 indicates that the insulation is in good condition and DAR of greater than 1.4 indicates that the insulation is in an excellent condition. The steps to take a test in DAR mode are as follows: To enter the DAR mode press the icon on the home screen and following screen will ⚫...
- Page 17 Here you can set the voltage using the voltage up and down in steps of 10V below 1000V ⚫ and in steps of 25V above 1000V. There is also a standard voltage button to set standard testing voltages (100V, 250V, 500V, 1000V, 2500V, 5000V ISO 5 o 10.000V ISO 10). You can also change the filter settings in this window (hardware and software filter).
-
Page 18: Pi Mode
Because there are a lot of parameters to be displayed they have been divided into three ⚫ sub screens which can be scrolled using the scrolling arrows. Figure shows the sequence of the screens along with the parameters displayed on the corresponding screen. SCREEN 1 VOLTAGE AT LEADS... - Page 19 PI of less than 1-2 indicates that the insulation is in poor condition, PI of 2-4 indicates that the insulation is in good condition and PI of greater than 4 indicates that the insulation is in an excellent condition. The steps to take a test in PI mode are as follows: To enter the PI mode press the icon on the home screen and the following screen will ⚫...
- Page 20 Here you can set the voltage using the voltage up and down in steps of 10V below 1000V ⚫ and in steps of 25V above 1000V. There is also a standard voltage button to set standard testing voltages (100V, 250V, 500V, 1000V, 2500V, 5000V ISO 5 o 10.000V ISO 10). You can also change the filter settings in this window (hardware and software filter).
-
Page 21: Step Mode
Because there are a lot of parameters to be displayed they have been divided into ⚫ three sub screens which can be scrolled using the scrolling arrows. Figure shows the sequence of the screens along with the parameters displayed on the corresponding screen. - Page 22 Interval = test time/5 In the first interval a test voltage of V/5 volts is applied to the DUT where V is the voltage selected in the control window. At the end of each interval the test voltage is increased by V/5 volts.
- Page 23 Here you can set the voltage using the voltage up and down in steps of 10V below ⚫ 1000V and in steps of 25V above 1000V. There is also a standard voltage button to set standard testing voltages (250V, 500V, 1000V, 2500V, 5000V o 10.000V ISO 10).
- Page 24 RESISTANCE AT LAST INTERVAL/STEP (Rt5) SCREEN 1 VOLTAGE RESISTANCE AT LEADS AT EACH STEP /DUT SCREEN 2 VOLTAGE AT VOLTAGE EACH STEP DURING TEST SCREEN 3 CURRENT AT VOLTAGE EACH STEP Please note that in step mode if the meter is running on battery supply, the meter will not be able to deliver 5000V to a load resistance of below 10 MΩ.
-
Page 25: Ramp Mode
5.5 Ramp Mode: The ramp mode is similar to the step voltage test but with many small tests. In this test the voltage increases continuously each second. The rate of increase of voltage is determined by the slope rate which can be set in the control window. For a slope rate of 100V/min the voltage will increase by approximately 1.67V in one second. - Page 26 You can also change the filter settings in this window (hardware filter). This filter is very ⚫ useful in noisy environments. You can also set the slope rate (voltage/min) with up and down arrows in this window. It is ⚫ the rate at which voltage will increase in the test.
- Page 27 SCREEN 1 VOLTAGE AT LEADS /DUT SCREEN 2 VOLTAGE DURING TEST SCREEN 3 VOLTAGE SLOPE You can save the data of this test by pressing the button. After pressing this button ⚫ a message will appear to tell you about the file number. You can press the OK button on the message box in order to go back to the measurement screen.
-
Page 28: Dielectric Discharge Mode
5.6 Dielectric Discharge Mode: Dielectric discharge test is a diagnostic insulation test that allows ageing, deterioration, and voids in the insulation to be assessed. The result is dependent on the discharge characteristic which tests the internal condition of the insulation and is largely independent of surface contamination. - Page 29 To setup the basic settings of the mode press the icon. The control window will ⚫ appear as shown below. Here you can set the voltage using the voltage up and down in steps of 10V below 1000V ⚫ and in steps of 25V above 1000V. There is also a standard voltage button to set standard testing voltages (100V, 250V, 500V, 1000V, 2500V, 5000V).
- Page 30 As we know DD test consists of both charging time(t1) and discharging time(t2). The ⚫ t1 and t2 both can be set in the control window with the help of their corresponding arrows. The up arrow will increase the time and the down arrow will decrease the time.
- Page 31 SCREEN 1 CURRENT AT VOLTAGE END OF AT LEADS DISCHARGE /DUT TIME SCREEN 2 CURRENT AT VOLTAGE END OF DURING CHARGE TEST TIME SCREEN 3 VOLTAGE You can save the data of this test by pressing the button. After pressing this button ⚫...
-
Page 32: Voltage Mode
5.7 Voltage Mode: The instrument also has a voltmeter that measures AC/DC voltage from 20 V to 600 V. ⚫ This voltmeter is useful as it shows the presence of voltage when it is connected to a DUT which has induced voltage. To enter the voltage mode press the button on the home screen of the meter. -
Page 33: Chapter 6 Graph Window
CHAPTER 6 GRAPH WINDOW Along with the insulation resistance value and related parameters the meter also shows a trend of the insulation resistance of the DUT over time. This is a very important feature as the trend of the insulation resistance gives a lot of information about the condition of the insulation. - Page 34 Test duration Duration between 2 data points(Sample rate) 80 min 01 sec - 85 min 17 sec/data point 85 min 01 sec - 90 min 18 sec/data point 90 min 01 sec - 95 min 19 sec/data point 95 min 01 sec - 99 min 59 sec 20 sec/data point Following are the steps to view graph of insulation resistance vs time for a given DUT: On the home screen go to your desired test mode(IR,DAR,PI,STEP or RAMP) using their...
- Page 35 With the help of arrow keys on the graph window you can view the detailed information of ⚫ each data point(time,voltage,current and insulation resistance). To indicate the point on the graph the cursor also moves on the graph. To exit the graph window you can press the button.
-
Page 36: Chapter 7 File Explorer
CHAPTER 7 FILE EXPLORER The meter has an inbuilt storage facility where we can save the test data for future analysis. The meter has storage capacity of 2000 files. Along with the parameters (insulation resistance, voltage, current, DAR, PI and many others) the device also stores the graph for the saved test. - Page 37 You can also scroll to the desired file using the arrow keys. ⚫ In some modes there are a lot of parameters which cannot be displayed on a single ⚫ screen. So in such cases the main parameters are displayed on the front. The other parameters can be seen by pressing the scrolling arrows.
-
Page 38: Chapter 8
CHAPTER 8 AUDIO READ-OUT FEATURE The meter has the audio read out feature. The meter reads out the insulation resistance values and other parameters like Polarization index(PI) and Dielectric Absorption Ratio(DAR) with the help of powerful speaker. This feature comes in very handy where the screen of meter is not directly accessible. -
Page 39: Chapter 9 Settings Of The Meter
CHAPTER 9 SETTINGS OF THE METER In addition to the settings in the control settings, there are also additional settings provided in the meter. These settings include sleep, date and time, customer information, brightness, short circuit, go no go and other settings. To enter the settings window press icon to enter the settings window. -
Page 40: Time/Date Settings
turned off in this mode. You will enter the sleep mode after a specified minutes of inactivity which can be set(default: 15 min). Also the sleep mode can be turned off if required by the user. Once meter enters the sleep mode you can come out of sleep mode by touching the screen. -
Page 41: Customer Information Settings
The date and time window is as shown below: Click on the corresponding button to change field 9.3 Customer Information Settings: Along with the parameters the meter also stores customer information in the file in which the customer can write the test specific data like customer ID and name. This can also be set in the setting window by pressing the button after which the following window appears:... -
Page 42: Brightness Settings
In this window you can edit the customer ID and name by clicking on their respective buttons. Then an alphanumeric keyboard will appear where you have to enter the customer ID/ name and then press the key. BACKSPACE ENTER KEY 9.4 Brightness Settings: You can also change the brightness of the screen as per your requirement. -
Page 43: Short Circuit Settings
9.5 Short Circuit Settings: In this meter the short circuit current of the meter can also be changed. There are 3 settings available 1.2 mA, 3 mA & 6 mA. Also in case of fault(current goes above short circuit value) you can select whether to keep running the test or not using the breakdown/burn settings. -
Page 44: Go No Go Settings
Breakdown condition detected: This is displayed if the voltage at DUT delivered by ⚫ meter reaches the nominal voltage(voltage set by user) and the current crosses the short circuit current for about 20 sec. This message will not be displayed in the RAMP mode, only current limit condition is shown in this mode even if breakdown condition occurs. -
Page 45: Other Settings
otherwise it will turn green. The go no go settings can be changed by pressing the icon on the settings window. ir limit ir limit unit voltage button button limit button You can change the go no go insulation resistance limit by clicking on the go no go insulation resistance button after which a keyboard will appear where you can insert the desired value and press the button. - Page 46 usb/bluetooth mute/unmute button button Communication interface setting: This meter has 2 interfaces for communication (Bluetooth or USB). Please note that at any given time only one interface can be used for communication. To select which interface to use you can press the USB/bluetooth button in the more settings window.
-
Page 47: Chapter 10 Meter Specifications
CHAPTER 10 METER SPECIFICATIONS Insulation Resistance Measurement ISO 5 and ISO 10: ⚫ Maximum Resistance Nominal voltage Intrinsic Error 2 GΩ 5% ± 1D 100 V 10 GΩ ± 50 GΩ 5% ± 1D 250 V 500 GΩ ± 100 GΩ 5% ±... - Page 48 Insulation Leakage Current Measurement: 0.01nA to 6mA; Accuracy +5% +0.2 nA ⚫ Test voltage Accuracy: +7%, -0%,+10 V nominal test voltage ⚫...
- Page 49 Guard terminal: 2% error guarding 500 kΩ leakage, 100 MΩ load ⚫ Timer range for IR tests: ⚫ Time: 45s - 99 min 59 sec with three programmable timers Tests: IR(t),DAR,PI,Dielectric discharge, Step Voltage, Ramp voltage Ambient conditions: ⚫ Operating Temperature: -20 C - +50 Storage Temperature: -20 C - +70...
- Page 50 Battery specifications: ⚫ Battery:11.1V,7.8Ah Li-on battery Battery Service Life: 6 Hrs continuous testing at 5 KV (100 Megaohm load) Battery charging time: 7 hours. ISO 10 14,8V Power Supply (Mains): Nominal power(mains) 230V AC + 15%, 50/60 Hz ⚫ Power Supply Fuse Rating: Dimension(20X5mm), 250VAC , 5A ⚫...
-
Page 51: Chapter 11
CHAPTER 11 BATTERY CHARGING AND BATTERY ALARMS 11.1 Battery charging process: To charge the battery of the meter you have to insert the power cord provided with the ⚫ meter into the socket at the back of the meter. Then connect the power cord into any nearby power socket. Please make sure that the ⚫... -
Page 52: Chapter 12
CHAPTER 12 INSULATION RESISTANCE MEASUREMENT FOR VARIOUS EQUIPMENTS Insulation resistance is measured while manufacturing various equipments like transformer, circuit breakers, cables etc. It should be noted that the negative measurement lead should not be connected to large ground conductors. Following are the connections schemes for insulation resistance measurement for different equipments: 12.1 TRANSFORMERS: HV winding (with 3 phases HV winding (with 3 phases... -
Page 53: Circuit Breakers
12.2 CIRCUIT BREAKERS: Top to earth with Bottom to earth with Top to bottom with guard to body guard to body guard grounded Positive terminal of insulation tester Negative terminal of insulation tester Guard terminal of insulation tester 12.3 CABLES: Positive terminal of insulation tester Negative terminal of insulation tester Guard terminal of insulation tester... -
Page 54: Current Transformers
12.4 CURRENT TRANSFORMERS: Positive terminal of insulation tester Negative terminal of insulation tester Guard terminal of insulation tester Primary to ground with body of the CT connected to guard 12.1 MOTORS: Positive terminal of insulation tester Negative terminal of insulation tester Insulation resistance testing of motor... -
Page 55: Chapter 13
CHAPTER 13 CONNECTION OF METER WITH PC USING USB For connection of meter with the PC using USB follow the following steps: On the meter, go to Settings> More Settings and turn on the USB by touching on the ⚫ USB/bluetooth. - Page 56 Then go to the device manager of your computer and check the COM port of the installed ⚫ device as shown below. Then install the software which can be downloaded from the website. ⚫ Then select the COM port in the software and press the connect button. ⚫...
-
Page 57: Chapter 14
CHAPTER 14 CONNECTION OF METER WITH PC USING BLUETOOTH For connection of meter with the PC using USB follow the following steps: On the meter, go to Settings> More Settings and turn on the bluetooth by touching on the ⚫ USB/bluetooth. - Page 58 Then click on 5Dx_xxxxxxxxx where xxxxxxxxx is serial number and then press next ⚫ button. The computer will pair with the device and the following screen will appear. Click on the ⚫ close button.
- Page 59 Then installing driver message will appear. ⚫ Wait till the driver is installed and then driver installed message will appear. ⚫ Now again right click on the bluetooth icon and click on show bluetooth device. ⚫ Then right click on 5Dx_xxxxxxxxx and click properties. ⚫...
- Page 60 Then install the software which can be downloaded from the website. ⚫ Then select the COM port in the software and press the connect button. ⚫ Then press ok button as shown below and the device will be connected to the computer. ⚫...
-
Page 61: Chapter 15
CHAPTER 15 CONNECTION OF METER WITH ANDROID PHONE USING BLUETOOTH For connection of meter with the PC using USB follow the following steps: On the meter, go to Settings> More Settings and turn on the bluetooth by touching on the ⚫... - Page 62 Then press the button shown in the figure. ⚫ Then in the drop down menu press the connect button. ⚫ Then the following screen will be displayed and the meter is now connected to your ⚫ phone.
