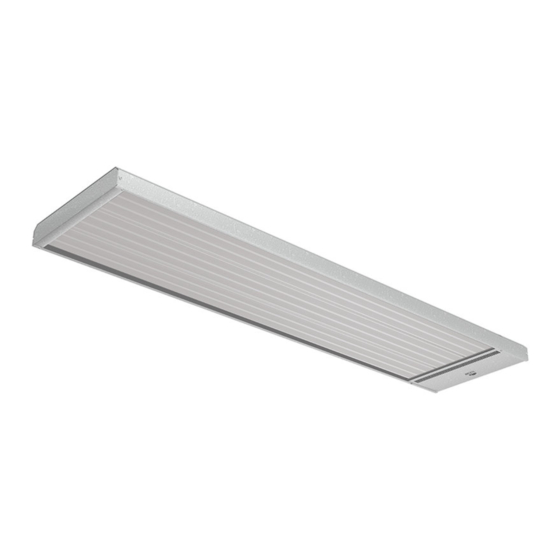

Frico Elztrip EZ300 Mounting And Operating Instructions
  1. Manuals
  2. Brands
  3. Frico Manuals
  4. Heater
  5. Elztrip EZ300 Series
  6. Mounting and operating instructions

Frico Elztrip EZ300 Mounting And Operating Instructions

Hide thumbs Also See for Elztrip EZ300:

Advertisement

Quick Links

Download this manual
SE
.... 8
DE
.... 20
NO
.... 10
DE
.... 18
Elztrip EZ300
FI
.... 12
RU
.... 20
GB
.... 14
PL
.... 22
FR
....16
ES
.... 24

Advertisement

loading
Need help?

Need help?

Do you have a question about the Elztrip EZ300 and is the answer not in the manual?

Questions and answers

Related Manuals for Frico Elztrip EZ300

Summary of Contents for Frico Elztrip EZ300

  • Page 1 Elztrip EZ300 ..8 ..12 ..14 ..16 ..10 ..20 ..18 ..20 ..22 ..24...

  • Page 2: Installation

    Elztrip EZ300 ø32,5 (2x) Type [mm] [mm] [mm] 1670 1200 EZ336 EZ345 2030 1500 Installation Tak / Skinne Wire Roof / Plafond Fig.1...
  • Page 3 Elztrip EZ300 Positioning ∆h a < H Dh = 1,5 - 2 m Fig. 2: Positioning vertically Type EZ300 [mm] 1800 Fig. 3: Minimum mounting distance...
  • Page 4 Elztrip EZ300 Accessories RO OM ING S SE TT FL OO LIM IT TDIN TK10 KRT1900 RTI2 Type E-nr [SE] EL-nr [NO] HxWxD Type E-nr [SE] EL-nr [NO] HxWxD [mm] [mm] 85 809 35 549 11 35 80x80x31 S123 TK10...
  • Page 5 Elztrip EZ300 Wiring diagrams EZ300 Internal wiring diagrams EZ3.. EZ3.. 400V3N~ 230V3~...
  • Page 6 Elztrip EZ300 Control with thermostat, contactor and switch 230V~ Thermostat EZ3.. EZ3.. S123 400V3N~ 400V3N~ 230V3~ 230V3~ Thermostats Internal wiring diagrams KRT(V) 19(00) RTI2/RTI2V 16A 230V~ /10A 400V~ Closed f o r setback °C 3 2 1 >t°C >t°C 230V~ >t°C...

  • Page 7: Technical Specifications

    Elztrip EZ300 Technical specifications | Elztrip EZ 300 Type E-nr (SE) EL-nr (NO) Output (1) Voltage (2) Amperage (3) Max. surface Weight (5) temperature (4) [kg] EZ336 85 747 72 543 26 05 3600 230V3~/400V3N~ 9,0/5,2 19,8 EZ345 85 747 74...

  • Page 8: Operation

    Mount the panel Application area according to fig 1.4, start with one end Elztrip EZ300 has three heating panels and is and then assemble the other one. Make designed for ceiling heights between 4 and 12 sure that the screws are tightened.

  • Page 9: Maintenance

    Elztrip EZ300 Maintenance Safety There might be a rattling noise the first time • For all installations of electrically heated of use when the surface coating of the panels products should a residual current circuit is settling. breaker 300 mA for fire protection be used.
