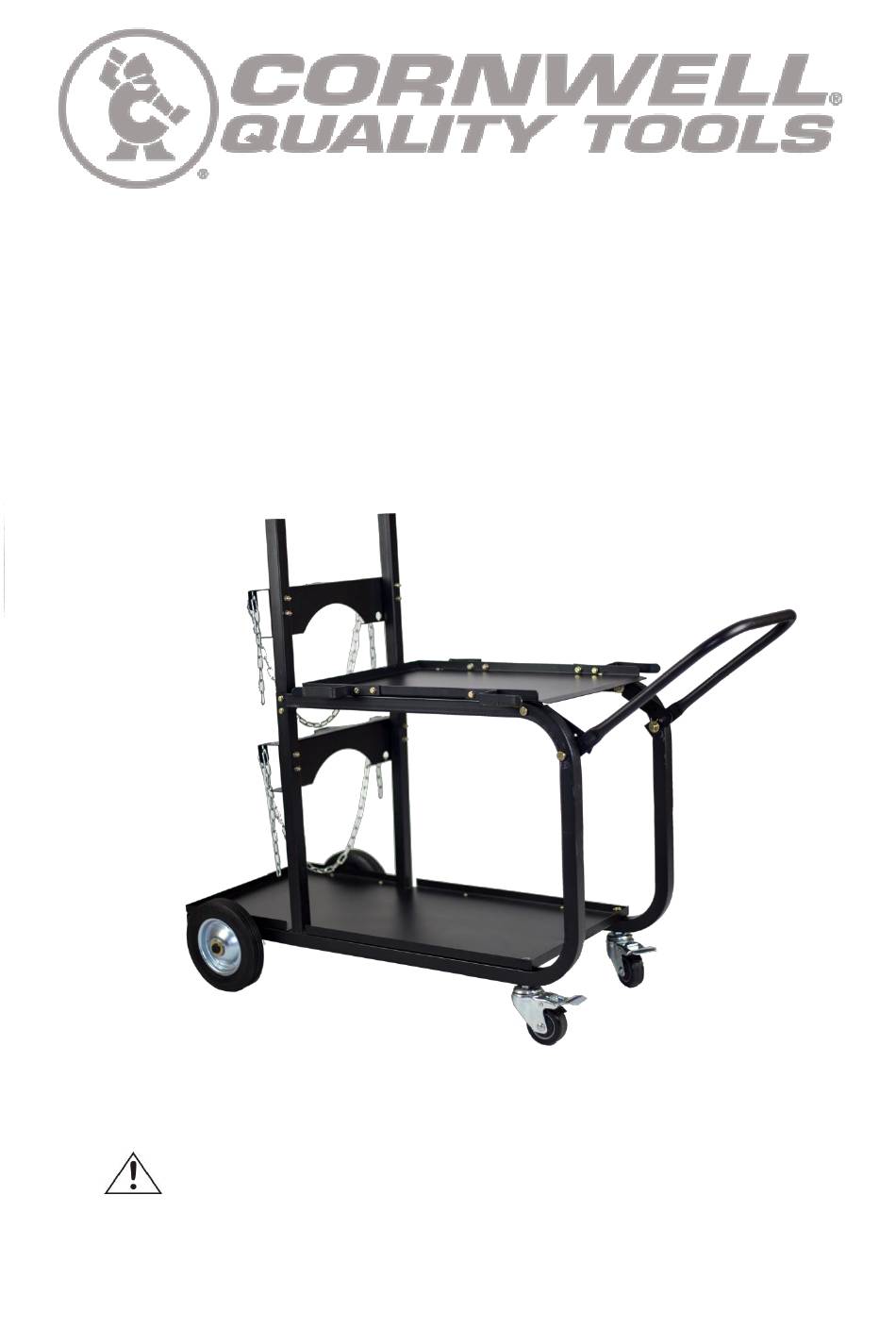

- Page 1 MMWUWC4 OWNER’S MANUAL 9/2015 WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.
- Page 2 CORNWELL QUALITY TOOLS EFFECTIVE SEPTEMBER 1, 2015 LIMITED WARRANTY This warranty applies to the original purchaser and is subject to the terms and conditions listed below. This Limited Warranty is for new equipment sold after the above date, providing coverage for defects in material and workmanship at the time it is shipped from the factory.
-
Page 3: General Safety Rules
GENERAL SAFETY RULES WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in serious injury. CAUTION: Do not allow persons to operate or assemble this Flux Core 125 until they have read this manual and have developed a thorough understanding of how the Flux Core 125 works. - Page 4 -Follow the instructions in this manual. -Keep welder in the off position when not in use. -Connect ground lead as close to the area being welded as possible to ensure a good ground. -Do not allow any body part to come in contact with the welding wire if you are in contact with the material being welded, ground or electrode from another welder.
- Page 5 UV and IR Arc Rays The welding arc produces ultraviolet (UV) and infrared (IR) rays that can cause injury to your eyes and skin. Do not look at the welding arc without proper eye protection. -Always use a helmet that covers your full face from the neck to top of head and to the back of each ear.
-
Page 6: Specifications
Electromagnetic Field -Electromagnetic fields can interfere with various electrical and electronic devices such as pacemakers. -Consult your doctor before using any electric arc welder or cutting device -Keep people with pacemakers away from your welding area when welding. -Do not wrap cable around your body while welding. -Wrap MIG gun and ground cable together whenever possible. - Page 7 DESCRIPTION The Cornwell Quality Tool Heavy Duty Single/Dual Bottle Welding Cart is designed for multiple uses as a welding cart. First it can be used to hold portable wire welders, plasma cutters and TIG welders along with the bottle of shielding gas needed for that application. Its unique Cylinder rack allows you to configure it to carry one bottle of gas up to 10 inches in diameter and up to 300 cu.
- Page 8 ASSEMBLY 1. On a flat surface, stand the two frame pieces up on their long side. 2. Lay the bottom shelf lip up on top of the two frame pieces. 3. Line up the pre-drilled holes in the bottom shelf with the pre-drilled holes in the long side of one of the frame pieces.
-
Page 9: Diagram & Parts List
cart frame and into the matching pre-drilled holes in the Cylinder Support Vertical Tubes. Secure with a flat washer, lock washer and Hex Nut. Repeat for the other mounting hole. Then repeat for the other side of the frame. 21. Locate one of the Cylinder Support Brackets. After reviewing the Cylinder Support Bracket, you will see that it can be positioned and set up for a single cylinder or two cylinders. - Page 10 Reference # Description Part Number Qty. HANDLE 105100136 RIGHT SIDE FRAME 105100137 CLEVIS PIN 105100138 HEX NUT M12 105100139 LOCK WASHER M12 105100140 FLAT WASHER M12 105100002 CASTER 105100141 SELF TAPING SCREW 105100013 COTTER PIN 105100001 FLAT WASHER 20 105100074 WHEEL 105100073 AXLE...
