- Page 1 MMWC2XL OWNER’S MANUAL 7/2019 WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.
- Page 2 This is a Parts only warranty. Contact your Cornwell distributor you purchased it from. Retain your receipt in the case a warranty claim is needed. No warranty will be provided without the original receipt from an authorized Cornwell Tools dealer.
- Page 3 GENERAL SAFETY RULES WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in serious injury or death. CAUTION: Do not allow persons to operate or assemble this unit until they have read this manual and have developed a thorough understanding of how this unit works. WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could occur.

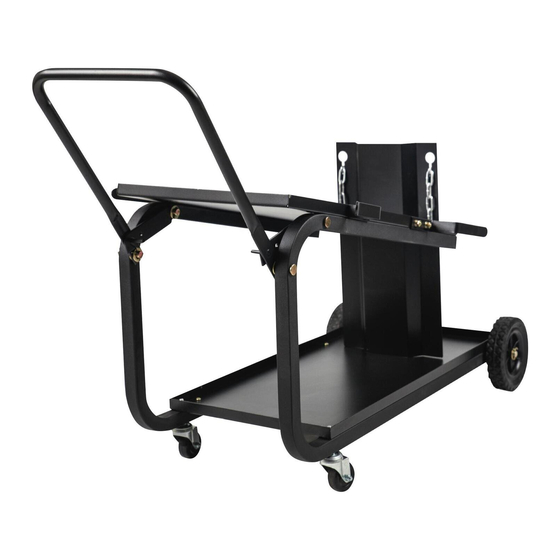

- Page 4 Caster DESCRIPTION The Cornwell MMWC2XL Universal Welding Cart w/Handle is designed to hold portable wire welders, plasma cutters and TIG Welders. This cart features a fold down handle for easy towing of your welding unit. It also has a set of cable wraps on each side for easy and safe storage of your welding cables.
- Page 5 ASSEMBLY CONTINUED 7. Use 4 of the self-tapping screws to secure the bottom shelf to the frame using the pre-drilled holes in the bottom shelf and frame. 8. Located the pre-drilled holes in the side of the frame supports at the back. Slide the axle through the pre-drilled holes in the side of the frame supports.
- Page 6 DIAGRAM & PARTS LIST Page of 8...
- Page 7 Reference # Part# Description Qty. 105100001 COTTER PIN 2.5 MM X 25 MM 105100002 FLAT WASHER M12 105100003 RUBBER WHEEL 150MM X 35 MM 105100005 FRAME 105100004 AXLE 105100006 BOTTOM SHELF 105100010 GAS CYLINDER SUPPORT 105100007 GAS CYLINDER RETAINING CHAIN 105100191 10MM BOLT WITH INCLUDED WASHERS 105100015...
- Page 8 Distributed by CORNWELL QUALITY TOOLS 667 SEVILLE RD WADSWORTH OH 44281 www.cornwelltools.com Made in China Page of 8...
