ASSEMBLY INSTRUCTIONS
CTB-MM700BR / CTB-MM700BK / CTB-MM700BL
CTB-MM700NY / CTB-MM700RG / CTB-MM700RD
CTB-MM700BR, Bk, BL, NY, RG, RD
7 Drawer Pro Series Service Cart

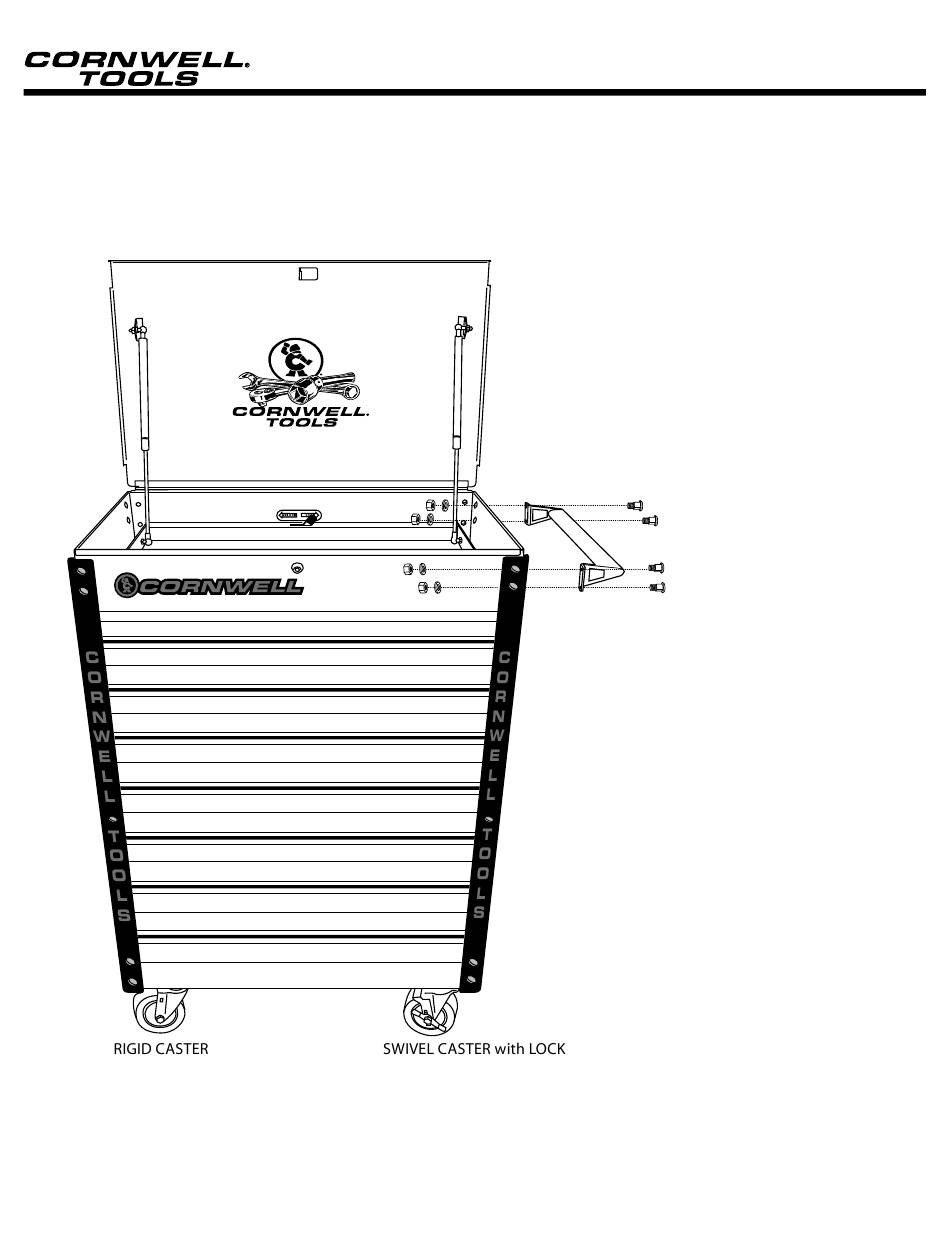

Mount push handle (Part #12) to the
same side of the cart as the locking
casters using the four stove bolts,
washers, and nuts provided.
Using 13mm socket completely tighten
all nuts.
Rev. 07/24/07
Advertisement
Table of Contents
Related Manuals for Cornwell Tools CTB-MM700BR
Summary of Contents for Cornwell Tools CTB-MM700BR
- Page 1 CTB-MM700BR, Bk, BL, NY, RG, RD 7 Drawer Pro Series Service Cart ASSEMBLY INSTRUCTIONS Mount push handle (Part #12) to the same side of the cart as the locking casters using the four stove bolts, washers, and nuts provided. Using 13mm socket completely tighten all nuts. CTB-MM700BR / CTB-MM700BK / CTB-MM700BL Rev. 07/24/07 CTB-MM700NY / CTB-MM700RG / CTB-MM700RD...
- Page 2 CTB-MM700BR, Bk, BL, NY, RG, RD 7 Drawer Pro Series Service Cart HARDWARE SPECIFICATIONS 4 pcs. 4 pcs. 4 pcs. TROUBLESHOOTING Troubleshooting Points for the CTBMM700 Series: Problem: Drawers appear not to fit, do not slide in accurately Problem: Back Lock/Unlock Switch does not engage and bump the cart sides. the drawer. Solution: The roller bearing slides must be fully engaged into Solution: The inside Lock/Unlock slide potentially could fall the mounting slots on all drawers. They potentially could fall out of its groove during shipment. Unscrew the four screws out of position during shipment. Check the side of the cart to that are holding the Lock/Unlock slide in place. determine which slide is out of position. Once the screws are removed, simply place the latch back Remove the drawer that is out of position. The drawer is onto the slide and tighten the four screws back down. removed by the two clips on the actual roller bearing slide. Simply push the roller bearing slide back down into position.
- Page 3 CTB-MM700BR, Bk, BL, NY, RG, RD 7 Drawer Pro Series Service Cart PARTS LIST Item # Part # # req'd description RSLKN Lock with Keys RSMM700LGBK Black Leg (each) RSMM700LGBL Blue Leg RSMM700LGBR Burgundy Leg RSMM700LGNY Yellow Leg RSMM700LGRD Red Leg RSMM700LGRG Orange Leg RSMM700BPLF Left Front Bumper RSMM700BPLR Left Rear Bumper RSMM700BPRF...
