Artesyn ATCA-7368 Quick Start Manual

ATCA-7368
Quick Start Guide
P/N:6806800N25B (June 2014)
1
What's in the box?
Make sure you receive all items of
your shipment:

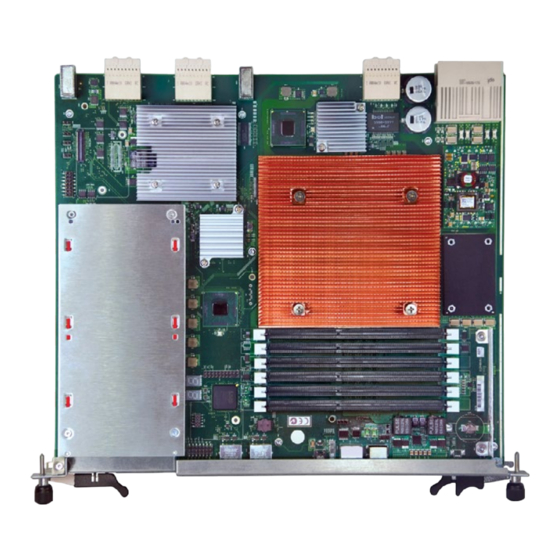

• ATCA-7368 blade
• Other items that were ordered
• Printed Safety Notes
When installing or servicing the
module or accessories, strictly
observe the safety precautions
in the Safety Notes. Otherwise,
personal injury or property dam-
age may occur.
2
Observe ESD-safe
measures
• Use either a properly grounded ESD
wrist strap or make sure that you are
working in an ESD-safe environ-
ment.
• Connect to the ESD connector at the
front or the rear of the system.
3
Prepare the installation
site
• For information on the environmen-
tal and power requirements, see the
ATCA-7368 Installation and Use man-
ual.
• Operating temperatures refer to the
temperature of the air circulating
around the blade and not to the
actual component temperature.
4

Install the DIMM

Notes:
• Some blade variants come with the DIMM
already installed.
• When installing DIMM memory modules,
the DIMM sockets farthest away on each
memory channel from the CPU device need
to be populated first.
• For thermal reasons, no 4-rank DIMMs and
no dual-die DIMMs are allowed.
1. If necessary, remove the blade from the
system.
2. Open the locks of the memory module
socket.
3. Press the memory module carefully into
the socket.
As soon as the memory module is fully
inserted, the locks automatically close.
4. If necessary, repeat steps 2–3 to install
additional memory modules.
